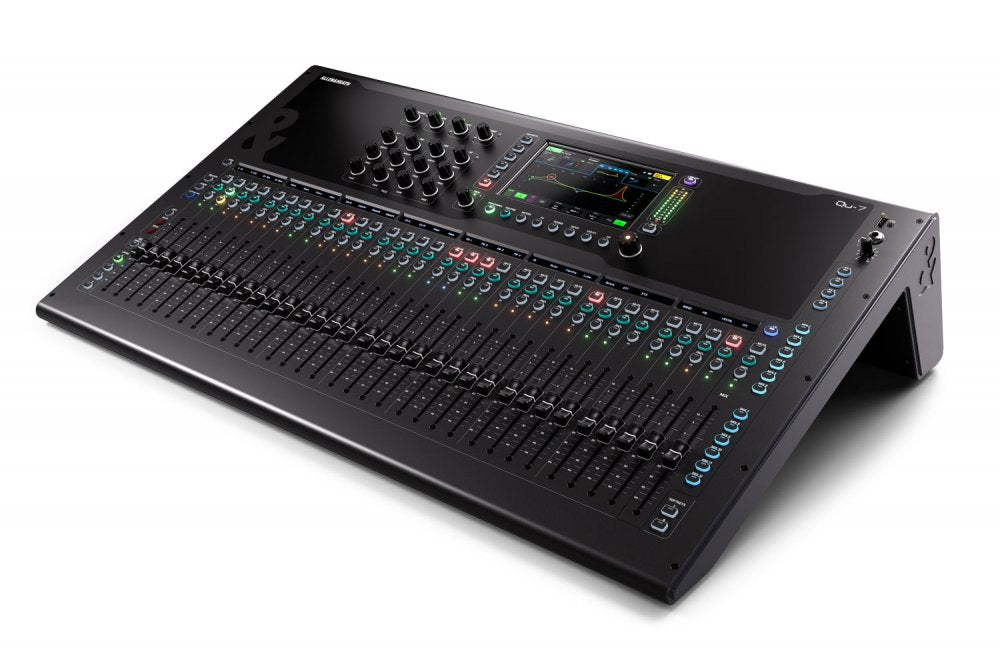

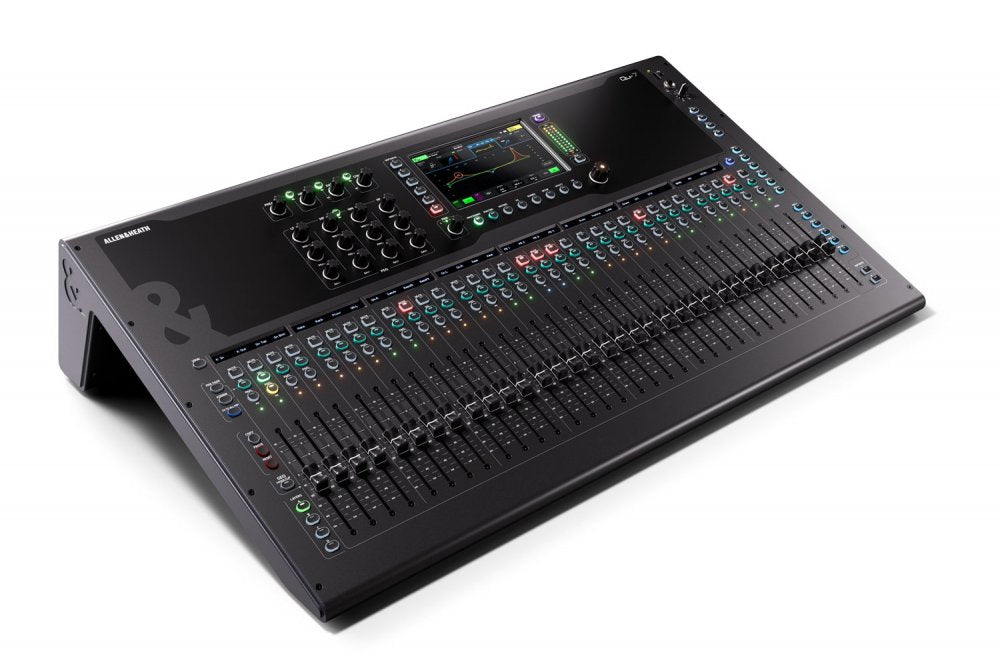

Allen & Heath Qu-7 is a 38-in/24-out 96 kHz digital mixer built around the XCVI FPGA core with variable bit-depth up to 96-bit and less than 0.7 ms local mic-to-main latency.
Specifications
Mixer Architecture
| Processing core | 96 kHz XCVI FPGA core, variable bit-depth up to 96-bit |
|---|---|
| Latency | <0.7 ms local mic input to main LR |
| Mix inputs | 38 inputs to mix (32 mono/linkable, 3 stereo) |
| Mix buses | 12 mix buses (6 mono/linkable aux/group, 6 stereo aux/group) |
| Matrix | 4 mono/linkable matrix buses |
| Main output | Stereo main LR output |
Local I/O

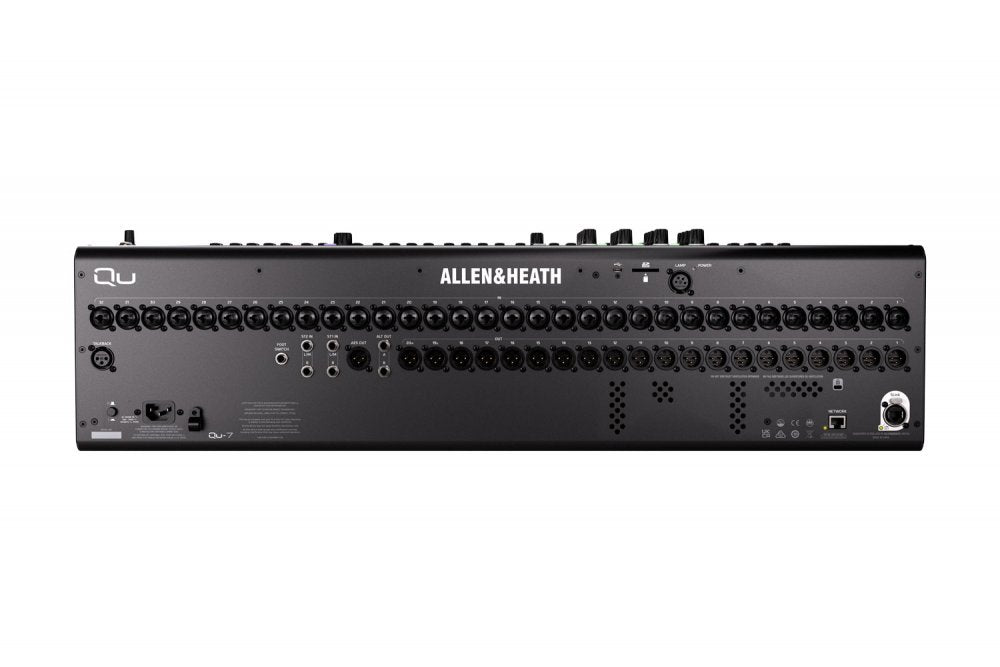

| Mic inputs | 32 XLR/Jack combi mic/line input sockets |
|---|---|
| Line inputs | 2 stereo line input sockets (2x TRS each) |
| Outputs | 20 XLR output sockets, 2 TRS output sockets, 1 AES3 stereo digital output, 1 XLR talkback, stereo headphone output |
Control Surface
| Faders | 33 x 100 mm motorised faders across 4 channel strip layers |
|---|---|
| Display | 7-inch capacitive touchscreen with redesigned UI |
| Softkeys footswitch | 8 SoftKeys; configurable single/dual footswitch connection |
Recording and Expansion
| Usb interface | 32x32 USB-C multichannel audio interface |
|---|---|
| Usb a | USB-A for stereo record/playback and data transfer |
| Sd recording | 16x16 at 96 kHz or 32x32 at 48 kHz SD card multitrack recording |
| Slink | 128x128 SLink port for Everything I/O expansion and system connections |
Processing
| Deep processing | DEEP Processing from dLive platform |
|---|---|
| Fx engines | 6 multi-FX engines with dedicated stereo returns; RackExtra FX |
| Assistants | Gain Assistant, Feedback Assistant (up to 16 filters per output), 32-channel Automatic Mic Mixer |
| Remote apps | Qu-MixPad (engineer) and Qu4You (musician) apps for Windows/macOS/iOS/Android |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

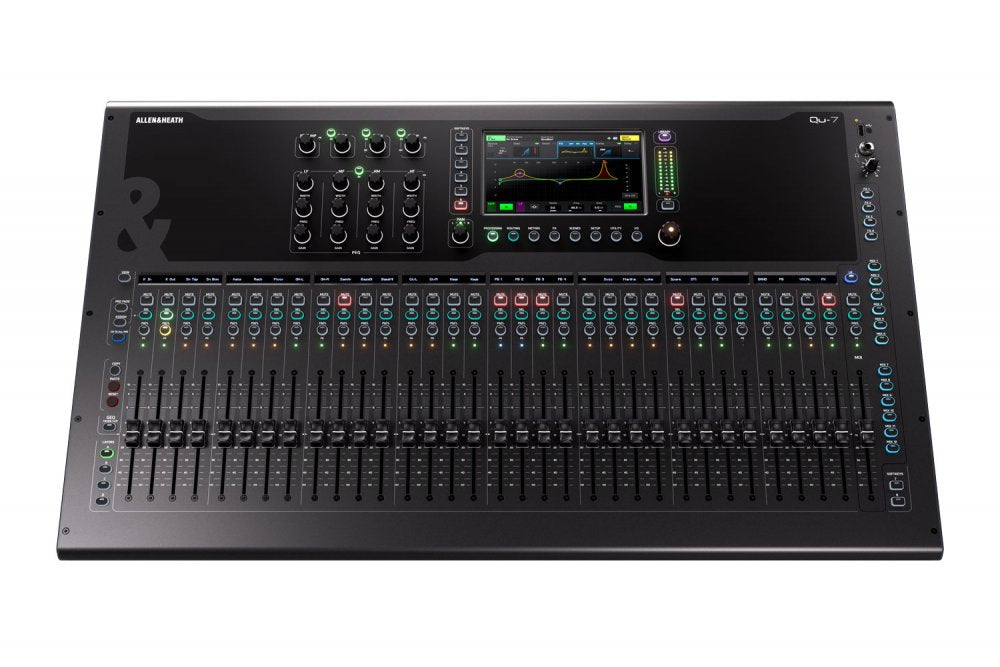

Allen & Heath Qu-7 is a 38-in/24-out 96 kHz digital mixer built around the XCVI FPGA core with variable bit-depth up to 96-bit and less than 0.7 ms local mic-to-main latency. The surface provides 32 XLR/Jack combi mic/line inputs, 2 stereo line inputs, 20 XLR outputs, 2 TRS outputs, an AES3 stereo digital output, and an XLR talkback input, along with 33 100 mm motorised faders across 4 channel-strip layers and a 7-inch capacitive touchscreen. Mixing architecture includes 38 inputs to mix (32 mono/linkable plus 3 stereo), 12 mix buses (6 mono/linkable and 6 stereo), 4 mono/linkable matrix buses, and a stereo main LR output. Recording and expansion include a 32x32 USB-C audio interface, SD card multitrack recording (16x16 at 96 kHz or 32x32 at 48 kHz), stereo USB-A record/playback, and an SLink port for Everything I/O expansion up to 128x128 channels at 96 kHz. DEEP Processing brings dLive-class processing, and the mixer includes Gain Assistant, Feedback Assistant, a 32-channel Automatic Mic Mixer, and 6 multi-FX engines.
