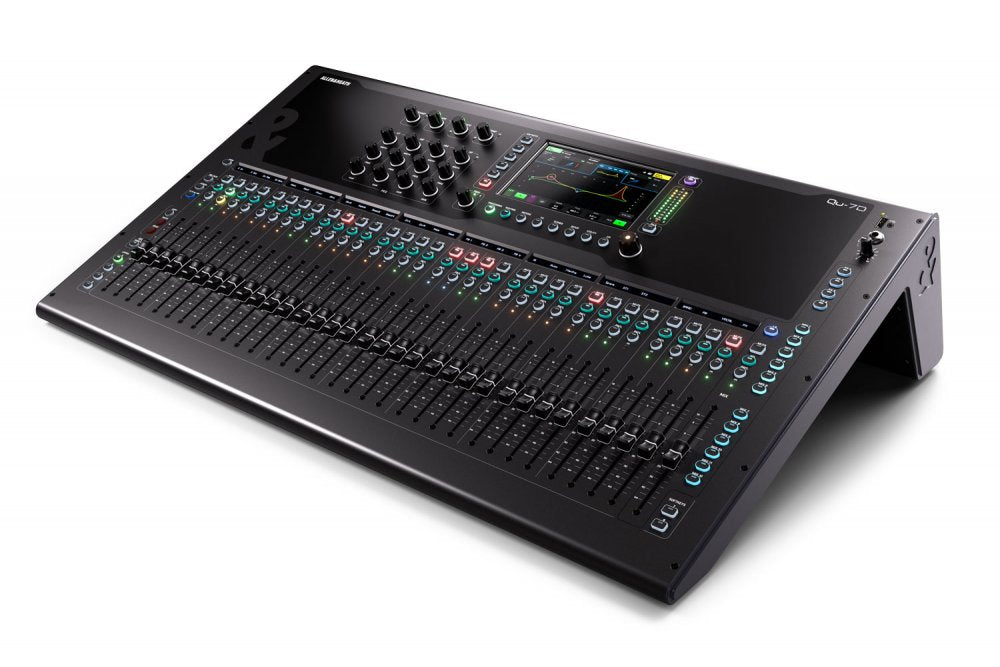

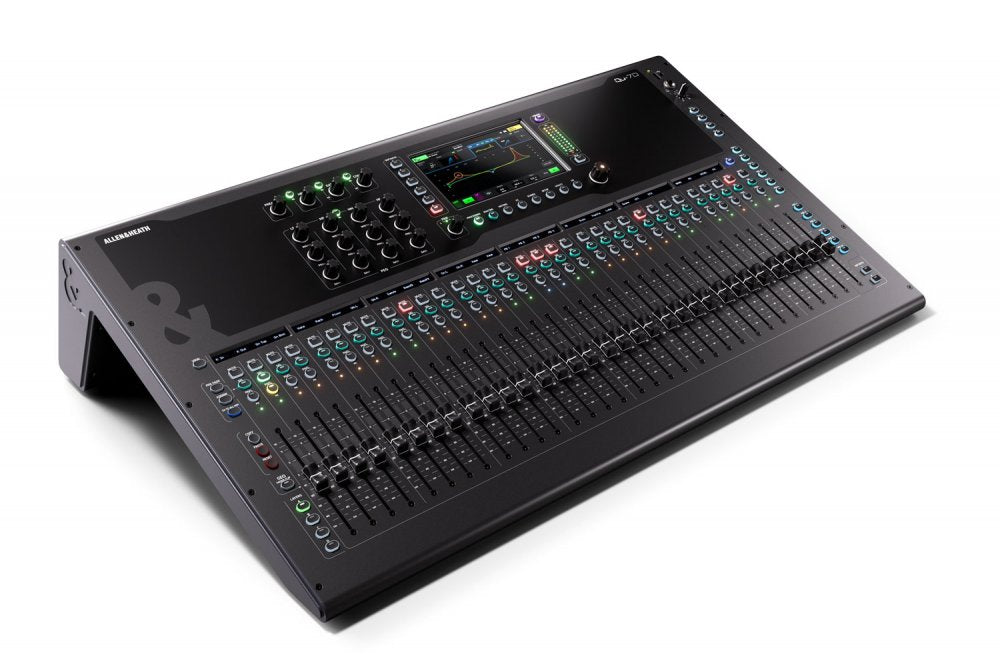

ALLEN & HEATH QU-7D — Mixer
ALLEN & HEATH QU-7D — Mixer
Allen & Heath Qu-7D is the Dante-equipped version of the Qu-7 digital mixer.
Specifications
Mixer Architecture
| Input mix count | 38 inputs to mix: 32 mono/linkable and 3 stereo |
|---|---|
| Outputs busses | 24 outputs; 12 mixes, 4 FX sends, 4 mono/linkable matrix mixes, stereo LR |
| Processing core | 96 kHz XCVI core with <0.7 ms latency |
| Scene memory | 300 scene memories per show |
I/O and Networking

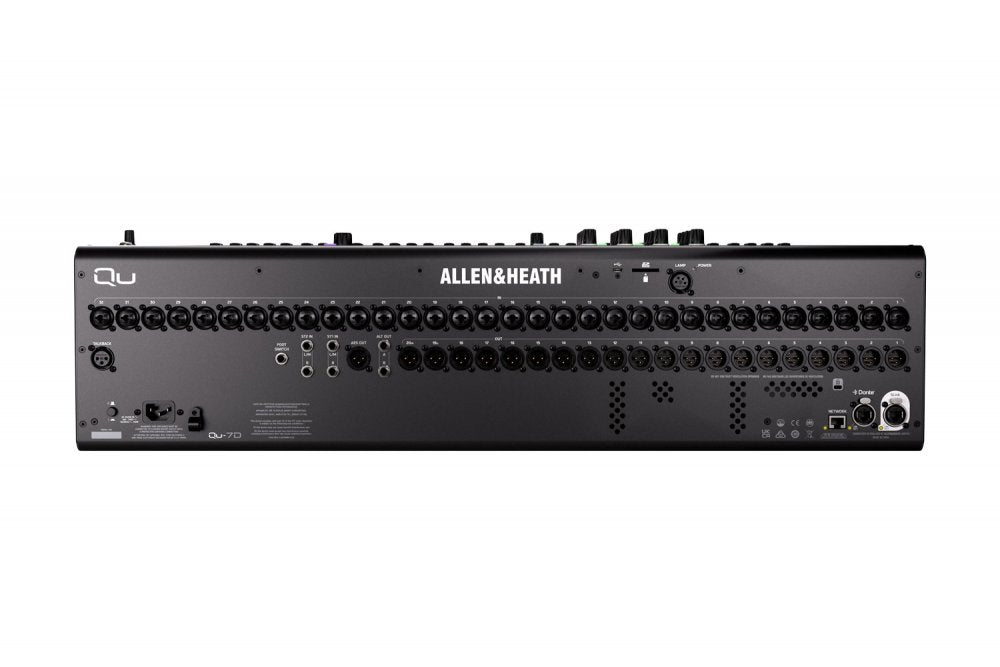

| Local inputs | 32 XLR/TRS combi mic/line inputs, 2 stereo TRS line inputs, XLR talkback |
|---|---|
| Local outputs | 20 XLR outputs, 2 TRS outputs, AES3 stereo digital output, stereo headphone output |
| Dante | 16x16 Dante interface at 48/96 kHz with dedicated locking EtherCON port |
| Slink | 128x128 SLink port for expansion and system connections |
Control and Recording
| Faders | 33 x 100 mm motorised faders |
|---|---|
| Display layers | 7-inch capacitive touchscreen and 4 customisable channel-strip layers |
| Usb c interface | 32x32 at 48/96 kHz, 16/24-bit |
| Sd recording | SD card multitrack: 16 channels at 96 kHz or 32 channels at 48 kHz, 24-bit |
Processing
| Fx | 6 multi-FX engines with dedicated stereo returns |
|---|---|
| Automatic mic mixer | 32-channel DEEP automatic mic mixer |
| Assistants | Feedback Assistant with 8 simultaneous detectors and Gain Assistant |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

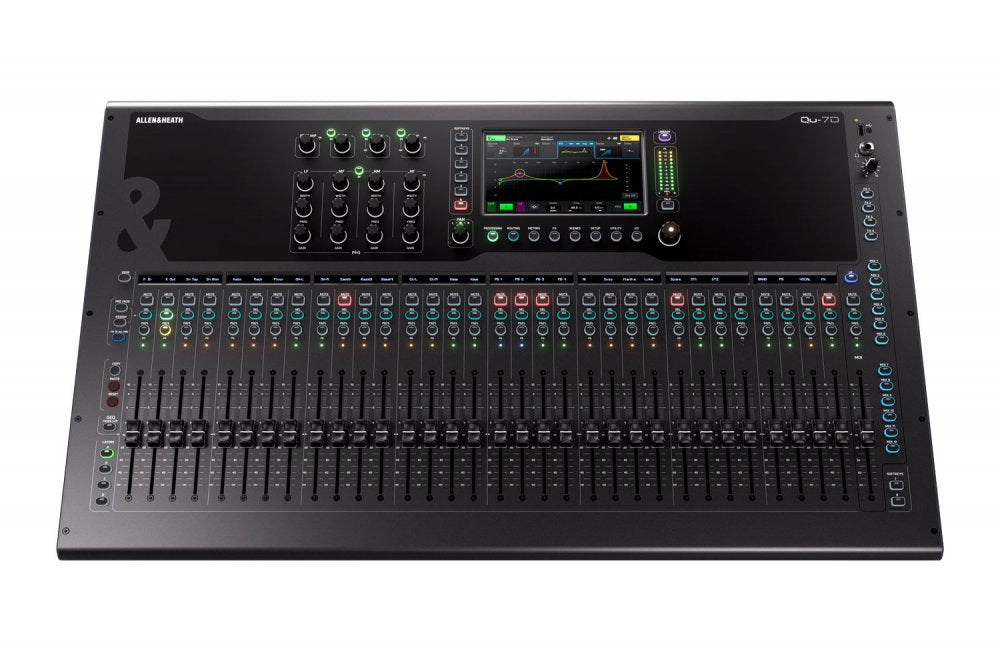

Allen & Heath Qu-7D is the Dante-equipped version of the Qu-7 digital mixer. Allen & Heath describes the Qu-7/Qu-7D as a compact 38-input/24-output 96 kHz mixer with a 96 kHz XCVI core, 33 100 mm motorised faders, 32 XLR/TRS combi mic/line input sockets, 20 XLR outputs, 7-inch capacitive touchscreen, 4 customisable channel-strip layers, 6 multi-FX engines, 32-channel automatic mic mixer, Feedback Assistant, Gain Assistant, and DEEP Processing readiness. The Qu-7D specifically adds a 16x16 Dante interface at 48 or 96 kHz on a dedicated locking EtherCON port. Recording and connectivity include 32x32 USB-C audio interface, SD card multitrack recording/playback, USB-A stereo record/playback, SLink expansion, AES3 output, network control, and footswitch input. Published unit dimensions are 800 x 476 x 213 mm and unpacked weight is 16.7 kg.
