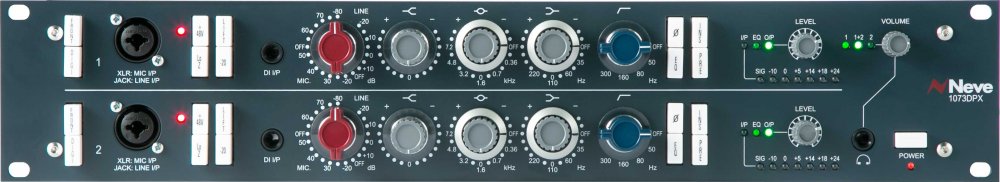

Black audio interface unit with knobs, combo jacks, switches, LEDs, and Neve 1073DPX branding on front panel.

AMS NEVE 1073 DPX — Microphone

$5,095.00
$5,095.00
Skip to product information
Black audio interface unit with knobs, combo jacks, switches, LEDs, and Neve 1073DPX branding on front panel.
  • Black audio interface unit with knobs, combo jacks, switches, LEDs, and Neve 1073DPX branding on front panel.
  • AMS NEVE 1073 DPX — Microphone, studio recording microphone body
  • AMS NEVE 1073 DPX — Microphone, studio recording microphone body
  • Black audio interface unit with knobs, combo jacks, switches, LEDs, and Neve 1073DPX branding on front panel.
  • AMS NEVE 1073 DPX — Microphone, studio recording microphone body
  • AMS NEVE 1073 DPX — Microphone, studio recording microphone body
AMS NEVE 1073 DPX — Microphone

AMS NEVE 1073 DPX — Microphone

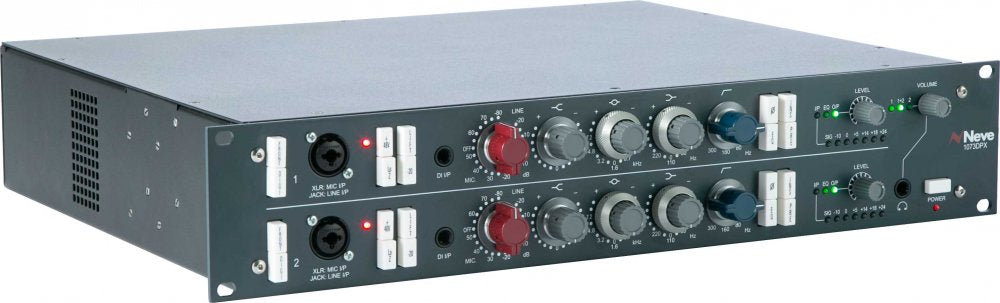

AMS Neve 1073DPX is a two-channel 2U rackmount microphone preamp and EQ based on the 1073 Class A design.

$5,095.00
$5,095.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios needing two hardware 1073-style preamp/EQ channels for stereo tracking, vocals with DI, or dual-source recording.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Two-channel microphone preamp and EQ · Switchable 48 V phantom power

Format

Product type Two-channel microphone preamp and EQ
Rack format 2U 19-inch rackmount
Channels 2 independent 1073 preamp/EQ channels
Maximum mic gain Up to 80 dB

Inputs and Routing

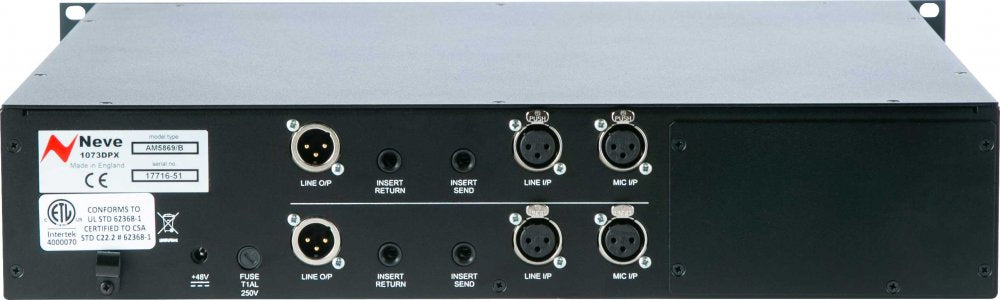

Inputs Front and rear mic/line inputs plus front DI input per channel
Insert loop Balanced +4 dBu insert send/return, switchable pre/post EQ
Monitoring Mono/stereo headphone monitoring
Digital option Optional rear digital module; not standard

EQ

Hf eq ±16 dB shelving at 12 kHz
Mid eq ±18 dB peaking at 0.36, 0.7, 1.6, 3.2, 4.8 or 7.2 kHz
Lf eq ±16 dB shelving at 35, 60, 110 or 220 Hz
High pass filter 18 dB/octave at 50, 80, 160 or 300 Hz

Controls

Phantom power Switchable 48 V phantom power
Impedance Switchable high/low microphone input impedance; low setting 300 ohms
Pad -20 dB pad
Metering 7-stage LED meters with input, EQ and output metering points

Fit and constraints

Studios needing two hardware 1073-style preamp/… · Switchable 48 V phantom power

Intended use

Use Studios needing two hardware 1073-style preamp/EQ channels for stereo tracking, vocals with DI, or dual-source recording.
Not for Users needing more than two channels, integrated A/D conversion as standard, full parametric EQ, or a low-cost transparent preamp.

Constraints

PowerSwitchable 48 V phantom power
ControlsGTIN and manufacturer-published weight were not found in accessible AMS Neve content.

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

AMS Neve 1073DPX is a two-channel 2U rackmount microphone preamp and EQ based on the 1073 Class A design. AMS Neve specifies two independent 1073 transformer-coupled preamp/EQ circuits with Marinair input and output transformers, front and rear mic/line inputs, front-panel DI inputs, 48 V phantom power, switchable high/low mic impedance, -20 dB pad, polarity reverse, EQ in/out and independent output level controls. Each channel has 3-band inductor EQ with fixed 12 kHz HF shelf, six selectable mid frequencies, four selectable LF shelf frequencies and an 18 dB/octave high-pass filter. The unit also provides balanced insert send/return with pre/post EQ switching, 7-stage LED metering and mono/stereo headphone monitoring.
