API ASM164 Summing Mixer
API ASM164 Summing Mixer
API ASM164 is a 16-channel rackmount analog summing mixer based on the summing section of API's THE BOX console.
Specifications
Format
| Product type | 16-channel rackmount analog summing mixer |
|---|---|
| Channels | 16 balanced line-level summing input channels |
| Buses | Two stereo program buses, Mix-A and Mix-B |
| Source design | Based on the summing section of API THE BOX console |
Channel Controls

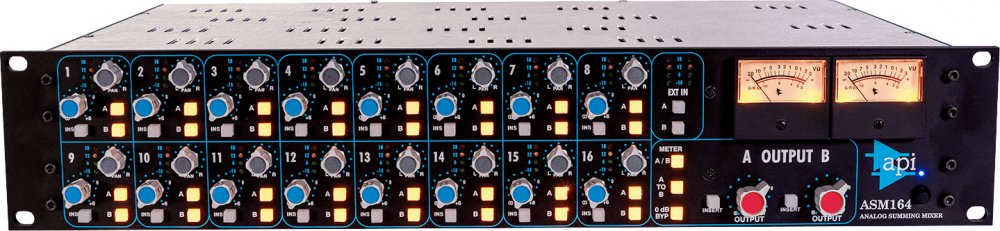

| Level controls | 31-step detented channel level controls with global 0 dB bypass |
|---|---|
| Pan | Continuously variable pan with center detent |
| Assignments | Assignable to Mix-A, Mix-B or both |
| Channel metering | 4-segment LED meter per channel |
I/O

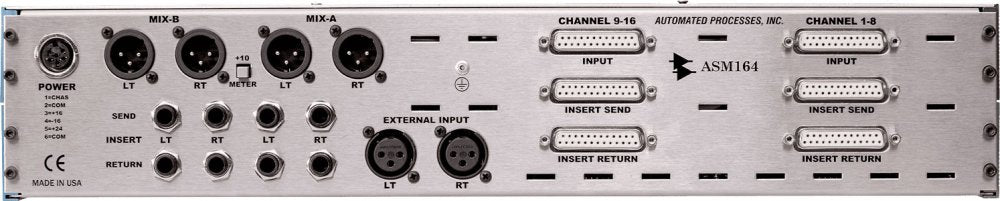

| Channel inputs | Balanced line-level low-impedance DB25 inputs |
|---|---|
| Channel inserts | Balanced insert send/return per channel |
| Mix outputs | Balanced line-level low-impedance stereo XLR outputs for Mix-A and Mix-B |
| External input | Balanced stereo external input assignable to Mix-A and/or Mix-B |
Bus and Power
| Mix inserts | Independent balanced insert send/return on each stereo program bus |
|---|---|
| Mix a to b | Mix-A to Mix-B summing |
| Output metering | Analog stereo output VU meters with A/B mix selection and +10 dB switch |
| Power supply | External power supply |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
API ASM164 is a 16-channel rackmount analog summing mixer based on the summing section of API's THE BOX console. API's manual specifies 16 balanced line-level summing inputs on DB25 connectors, API 2510 input op amps, per-channel balanced insert send/return with illuminated insert switch, 4-segment LED level meters, continuously variable pan with center detent and 31-step detented channel level controls. Each channel can be assigned to Mix-A, Mix-B or both. The mixer provides two stereo program buses with independent inserts, 31-step output level controls and balanced low-impedance XLR outputs, plus a balanced stereo external input, Mix-A to Mix-B summing, API 2520 op amp and transformer output circuits, analog VU meters and an external power supply.
