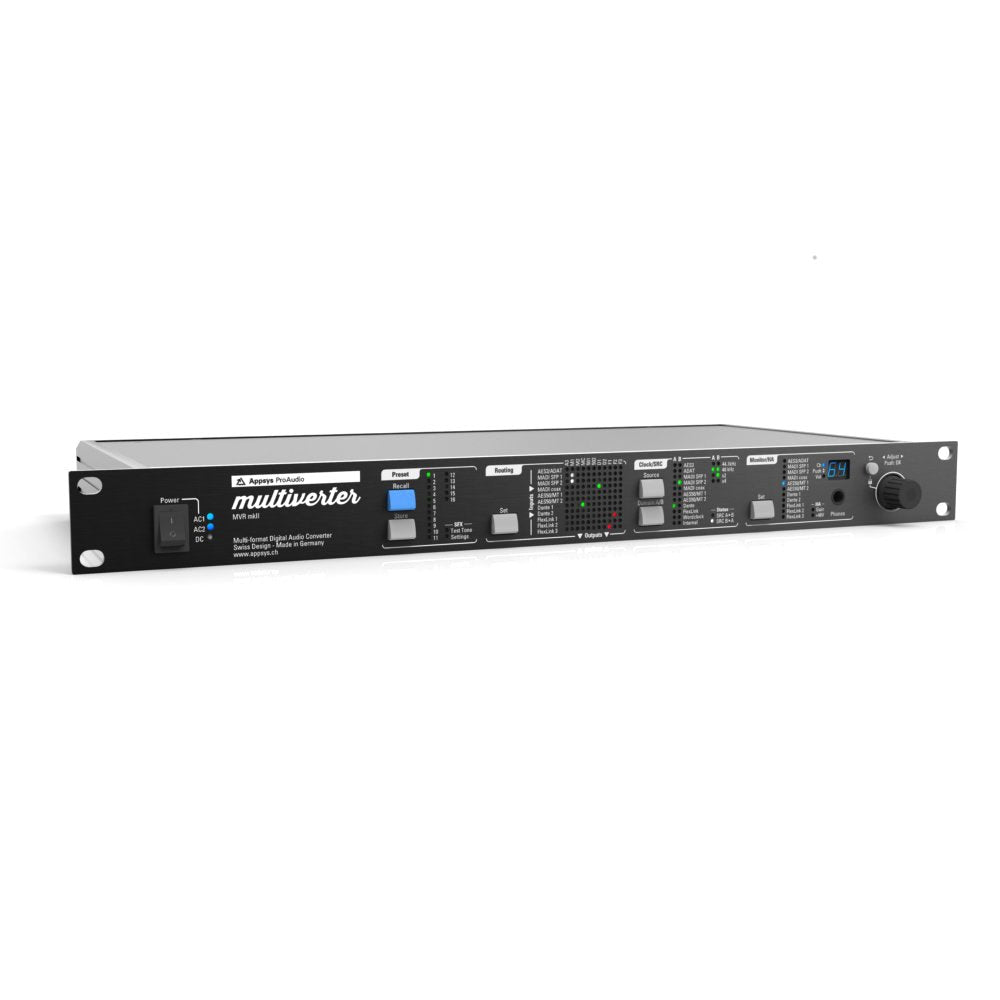

Front angled view of a rack-mountable black Appsys ProAudio multiverter device with buttons, LEDs, and a rotary control.

AppSys Multiverter MKII — Converter

$5,655.00
$5,655.00
Skip to product information
Front angled view of a rack-mountable black Appsys ProAudio multiverter device with buttons, LEDs, and a rotary control.
  • Front angled view of a rack-mountable black Appsys ProAudio multiverter device with buttons, LEDs, and a rotary control.
  • AppSys Multiverter MKII — Converter
  • Front angled view of a rack-mountable black Appsys ProAudio multiverter device with buttons, LEDs, and a rotary control.
  • AppSys Multiverter MKII — Converter
AppSys Multiverter MKII — Converter

AppSys Multiverter MKII — Converter

Appsys ProAudio MVR-mkII Multiverter is a 1U digital audio format converter and routing matrix for interconnecting AES3, ADAT, S/PDIF, MADI, AES50, MADI-TP, Dante and AES67 systems.

$5,655.00
$5,655.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios, broadcast rooms and live rigs that need to translate and route large digital audio networks across MADI, AES, ADAT, AES50 and Dante/AES67 without analog conversion.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Digital audio format converter and channel-wise routing matrix · 90-240 VAC, 0.75 A max

Format and Routing

Product type Digital audio format converter and channel-wise routing matrix
Routing matrix 704 x 704 channels at single speed; 352 x 352 at double speed; 176 x 176 at quad speed
Sample rates 44.1 to 192 kHz operation
Sample rate conversion Optional SRC-64 module supports 128 unidirectional or 64 x 64 bidirectional SRC channels

Digital Interfaces

Aes3 16 x 16 channels on two DB25 connectors, transformer isolated; pinout jumper-selectable
Adat spdif Four optical I/O ports for ADAT, S/PDIF or optical AES3 modes
Madi MADI SFP optical interfaces and MADI BNC coaxial support per AES10; supplied SFP listed as multimode 1310 nm up to 2 km
Aes50 madi tp Two ports configurable as AES50 or MADI-TP; AES50 supports 48 channels at 48 kHz or 24 channels at 96 kHz
Dante Dante supports up to 64 x 64 at 48 kHz, 32 x 32 at 96 kHz, or 16 x 16 at 192 kHz

Control and Clocking

Control Front panel, built-in web server, USB serial, telnet command line and MIDI preset recall
Usb audio USB port does not carry audio data
Clockshield ClockShield can maintain operation for up to one second without a master clock signal

Power

Ac power 90-240 VAC, 0.75 A max
Dc power 9-18 V nominal DC input, tolerant up to 30 V; 2.5 A max, typical current under 1 A

Fit and constraints

Studios, broadcast rooms and live rigs that nee… · 90-240 VAC, 0.75 A max

Intended use

Use Studios, broadcast rooms and live rigs that need to translate and route large digital audio networks across MADI, AES, ADAT, AES50 and Dante/AES67 without analog conversion.
Not for Users needing analog AD/DA conversion, USB audio interfacing, or a simple two-channel S/PDIF converter.

Constraints

Power90-240 VAC, 0.75 A max
ControlsManufacturer pages did not expose GTIN or physical weight; MPN wording varies between M...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

APPSYS PROAUDIO AppSys Multiverter MKII — Converter. Appsys ProAudio multiverter MVR mkii.
