AUDEZE LCD-5s — Headphones
Audeze LCD-5s is an over-ear, open-back flagship planar magnetic headphone. Audeze's product page lists a 90 mm planar magnetic transducer with Fluxor magnet array, Fazor phase management, SLAM acoustic management, neodymium N50 magnets and nano-scale Parallel Uniforce diaphragm.
Specifications
Headphone Type
| Style | Over-ear, circumaural, open-back |
|---|---|
| Transducer type | Planar magnetic |
| Transducer size | 90 mm |
| Magnetic structure | Fluxor magnet array with neodymium N50 magnets |
| Diaphragm | Nano-Scale Parallel Uniforce diaphragm |
Audio Specifications
| Frequency response | 5 Hz to 50 kHz |
|---|---|
| Impedance | 35 ohms |
| Sensitivity | 90 dB/1 mW at Drum Reference Point |
| Maximum spl | >130 dB |
| Thd | <0.1% at 100 dB SPL |
Power and Package
| Minimum power requirement | >100 mW |
|---|---|
| Recommended power | >500 mW |
| Maximum power handling | 5 W RMS |

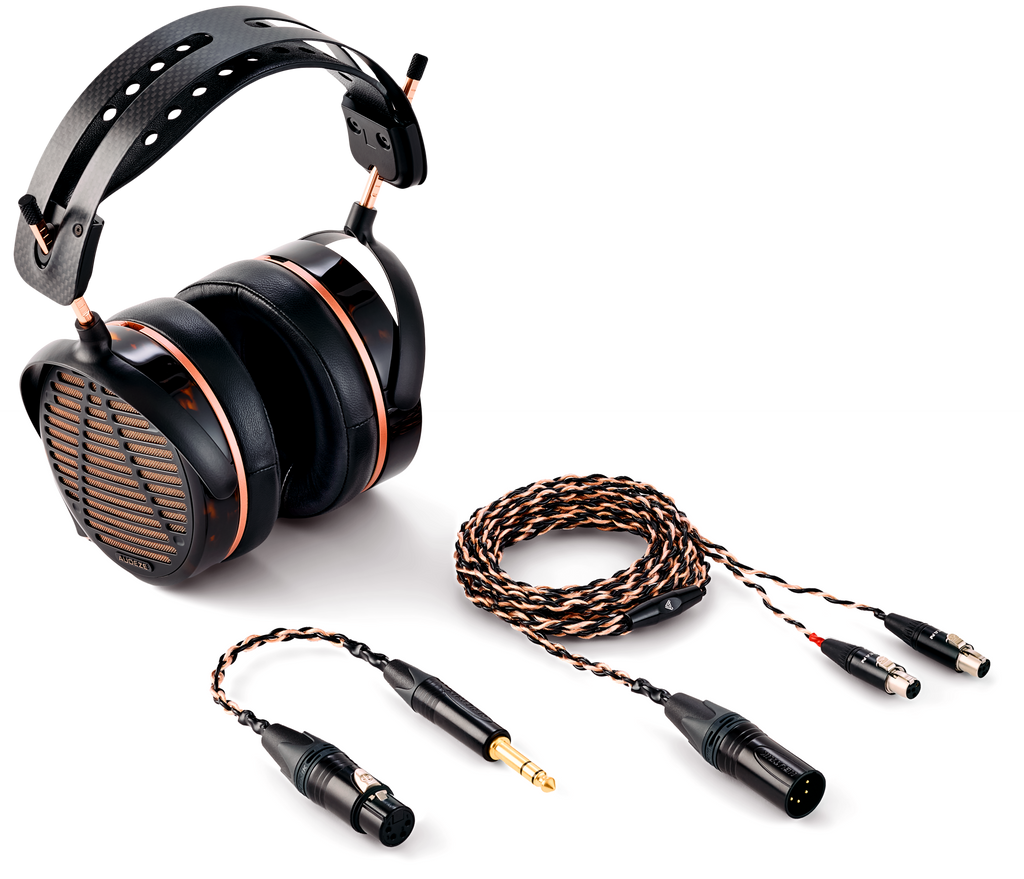

| Included items | LCD-5s headphone, 4-pin XLR premium balanced cable, 4-pin XLR to 6.3 mm TRS adapter and aluminum travel case |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Audeze LCD-5s is an open-back, over-ear planar magnetic headphone with 90 mm Nano-Scale Parallel Uniforce transducers, Fluxor magnet array, Fazor phase management, and SLAM acoustic management. Audeze specifies a 5 Hz–50 kHz frequency response, 35-ohm impedance, maximum SPL above 130 dB, and 475 g weight. The package includes a 4-pin XLR premium balanced cable, 4-pin XLR-to-6.3 mm adapter, and aluminum travel case. Check amplifier power and the balanced connection requirements before purchase.
