AVALON AD2022 (Silver) — Microphone
AVALON AD2022 (Silver) — Microphone

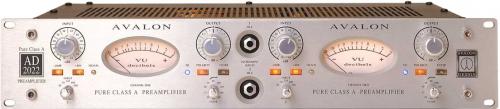

Avalon AD2022 is a dual-mono, two-channel solid-state microphone preamplifier using Avalon's fully discrete, high-voltage symmetrical Pure Class A circuit design.
Specifications
Format
| Channels | Two channels / dual mono |
|---|---|
| Topology | Fully discrete, high-voltage, symmetrical Pure Class A solid-state signal path |
| Rack format | 2U 19-inch rackmount |
| Finish | Silver finish variant; finish-specific MPN not verified |
Inputs and Gain
| Inputs | Microphone inputs and high-Z instrument inputs |
|---|---|
| Gain control | Switched gain in 4 dB steps plus +/-3 dB fine output trim |
| Mic input loading | 50, 150, 600 and 1.5 kohm selectable input load |
| Input pad | -20 dB resistive pre-transformer pad |
| Phantom power | +48 V regulated phantom power, 50 mA capability |
Audio Performance and Controls
| Ein | -126 dB EIN |
|---|---|
| Maximum mic level | +36 dB balanced XLR with -20 dB attenuator |
| Maximum instrument level | +18 dB at 100 kohm instrument input |
| Output drive | High-current DC-coupled Class A output rated to +36 dB |
| High pass filter | Passive variable high-pass filter, 30 Hz to 185 Hz at 6 dB/octave |
| Polarity | Input polarity reverse |
| Metering | Large illuminated analog VU meters with bi-color peak LEDs at 0 dB and +20 dB |
Power
| Power supply | External AC 150 W toroidal power chassis with fully discrete Class A regulated audio supplies |
|---|---|
| Digital io | No digital I/O |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Avalon AD2022 is a dual-mono, two-channel solid-state microphone preamplifier using Avalon's fully discrete, high-voltage symmetrical Pure Class A circuit design. Each channel includes microphone and high-Z instrument inputs, gain switching in 4 dB steps, +/-3 dB fine output trim, selectable microphone impedance loading, +48 V phantom power, polarity reverse, a -20 dB pre-transformer pad and a passive variable high-pass filter from 30 Hz to 185 Hz at 6 dB/octave. The mic input uses a custom low-ratio transformer with 50, 150, 600 and 1.5 kohm load selections, and the output stage is a high-current DC-coupled Class A amplifier rated to +36 dB output drive. Metering is via illuminated analog VU meters and peak LEDs. Vintage King lists MFR# AD2022 and 2U 19-inch rackmount format; Reverb identifies the common finish as silver, but no reviewed source verified a separate silver-finish MPN or GTIN.
