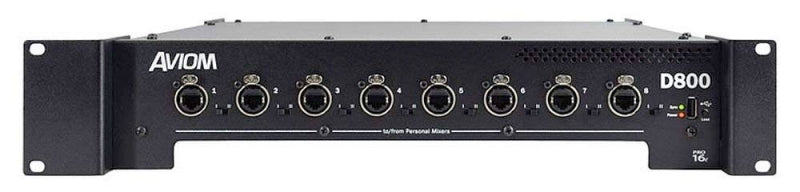

Black rack-mounted device with multiple Ethernet ports, LED indicators, USB port, and labeled D800.

AVIOM D800 Dante — Monitor Controller

$4,899.00
$4,899.00
Skip to product information
Black rack-mounted device with multiple Ethernet ports, LED indicators, USB port, and labeled D800.
  • Black rack-mounted device with multiple Ethernet ports, LED indicators, USB port, and labeled D800.
  • AVIOM D800 Dante — Monitor Controller
  • Black rack-mounted device with multiple Ethernet ports, LED indicators, USB port, and labeled D800.
  • AVIOM D800 Dante — Monitor Controller
AVIOM D800 Dante — Monitor Controller

AVIOM D800 Dante — Monitor Controller

Aviom D800-Dante is a 2U A-Net distributor for Aviom personal monitor systems with integrated Dante connectivity. Aviom states that it distributes DC power and digital A-Net audio to up to eight A640, A360, A320, A-16II or A-16R personal mixers over Cat-5e, using locking RJ45 outputs.

$4,899.00
$4,899.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Venues, houses of worship and touring rigs using Aviom personal mixers that need Dante-to-A-Net distribution plus remote power over Cat-5e.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

A-Net distributor with Dante interface for personal monitor systems · 24 VDC, 0.5 A to personal mixers over Cat-5e

Format

Product type A-Net distributor with Dante interface for personal monitor systems
Rack space 2U
Personal mixer outputs Eight powered locking RJ45 A-Net outputs
Compatible mixers A640, A360, A320, A-16II and A-16R personal mixers

Network and Audio

Dante channels Up to 64 Dante network channels
Dante sample rates 44.1/48 kHz, 88.2/96 kHz and 176.4/192 kHz; higher rates converted to 48 kHz for A-Net distribution

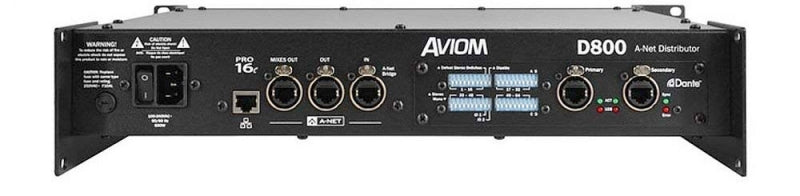

Dante ports Dante Primary I/O and Dante Secondary I/O on EtherCon RJ45 connectors
A net input Pro16e A-Net In supports A-Net Bridge input from up to four synchronous Pro16 streams
Stereo linking Four rear-panel DIP switch blocks set up to 32 channel pairs as stereo links

Power and Expansion

Mixer power 24 VDC, 0.5 A to personal mixers over Cat-5e
Mains power Internal universal switching supply, 100-240 VAC, 50-60 Hz, 300 W
Network mix back Mixes Out provides up to 16 channels of mix data from up to eight A360 personal mixers
A net out One unpowered Pro16e A-Net Out for thru connections

Fit and constraints

Venues, houses of worship and touring rigs usin… · 24 VDC, 0.5 A to personal mixers over Cat-5e

Intended use

Use Venues, houses of worship and touring rigs using Aviom personal mixers that need Dante-to-A-Net distribution plus remote power over Cat-5e.
Not for Users needing a generic Dante headphone amp, analog monitor mixer, PoE switch or non-Aviom personal-monitor ecosystem.

Constraints

Power24 VDC, 0.5 A to personal mixers over Cat-5e

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

Aviom D800-Dante is a 2U A-Net distributor for Aviom personal monitor systems with integrated Dante connectivity. Aviom states that it distributes DC power and digital A-Net audio to up to eight A640, A360, A320, A-16II or A-16R personal mixers over Cat-5e, using locking RJ45 outputs. The D800-Dante can receive up to 64 channels directly from a Dante network or use the Pro16e/A-Net Bridge input as the audio source. It supports Network Mix Back for returning eight stereo A360 mixes, Ethernet/Wi-Fi support for the A360 Display app, one unpowered Pro16e A-Net Out for thru connections, universal internal power supply and Dante primary/secondary EtherCon ports. Manufacturer specifications list 19 x 14.25 x 3.5 in dimensions and 12 lb weight.
