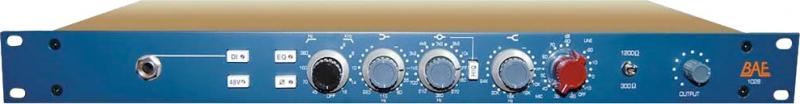

BAE 1028 Mic Pre/EQ 19-inch Rackmount without PSU is a single-channel rackmount microphone preamp and equalizer based on BAE's 1073-style mic/line preamp circuit with expanded EQ and the 1084-style low-pass filter.
Specifications
Format
| Product type | Single-channel microphone preamp and equalizer |
|---|---|
| Rack format | 19-inch 1RU rackmount without power supply |
| Topology | Solid-state, hand-wired, transformer-balanced 1073-style mic/line preamp with expanded EQ |
| Power requirement | Requires compatible BAE 24 V PSU; bundle specs list 115/230 VAC, 28 W for PSU-equipped system |
Preamp Specifications
| Gain | 0 to 80 dB |
|---|---|
| Frequency response | 10 Hz to -3 dB at 55 kHz |
| Mic input impedance | Approximately 1200/300 ohms selectable |
| Line input impedance | 10 kOhm |
| Di input impedance | Approximately 150 kOhm |
| Maximum output | +27.4 dBu at 600 ohms |
| Ein | -110 dBu, unweighted 300 kHz bandwidth |
EQ and Filters
| High shelf | +/-16 dB at 10, 12, 16, 20 or 24 kHz |
|---|---|
| Low shelf | +/-16 dB at 35, 60, 110 or 220 Hz |
| Midrange | +/-12 dB or +/-18 dB peaking at 160, 270, 360, 510, 700 Hz, 1.6, 3.2, 4.8, 7.2, 8.2 or 10 kHz |
| High pass filter | 18 dB/octave at 45, 70, 160 or 360 Hz |
| Low pass filter | 18 dB/octave at 6, 8, 10, 14 or 18 kHz |
Controls
| Phantom power | 48 V phantom power button listed on rackmount version with PSU variants |
|---|---|
| Phase | 180 degree phase reversal button |
| Eq bypass | EQ button switches equalizer in/out |
| Di | DI/high-impedance input function listed by dealer pages |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
BAE 1028 Mic Pre/EQ 19-inch Rackmount without PSU is a single-channel rackmount microphone preamp and equalizer based on BAE's 1073-style mic/line preamp circuit with expanded EQ and the 1084-style low-pass filter. BAE's page lists the without-PSU rack version at 19-inch 1RU, while dealer technical data identifies a 19 x 1.75 x 9 in rackmount chassis weighing about 10 lb. The circuit is described by dealers as hand-wired with Carnhill St. Ives transformers, solid-state operation, 0-80 dB gain, selectable 1200/300 ohm mic input impedance, 10 kOhm line input impedance, approximately 150 kOhm DI impedance and 65 ohm output impedance. EQ includes +/-16 dB low shelving at 35/60/110/220 Hz, +/-12 dB or +/-18 dB peaking midrange across 11 frequencies, +/-16 dB high shelving at 10-24 kHz, 18 dB/octave high-pass at 45/70/160/360 Hz and 18 dB/octave low-pass at 6-18 kHz. .
