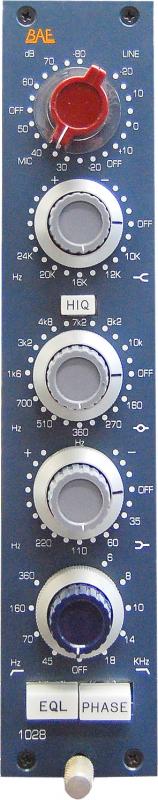

BAE 1028 Mic Pre/EQ Module is a handwired single-channel microphone preamplifier and equalizer module designed for Neve 10-series consoles or compatible BAE racks. It shares the mic and line preamp circuit of the BAE 1073 and adds the low pass filter of the BAE 1084 for a total of 28 selectable frequencies.
Specifications
Preamp
| Channels | 1 channel (single-channel module) |
|---|---|
| Gain | 0 to 80 dB |
| Frequency response | 10 Hz to -3 dB at 55 kHz |
| Input impedance | Mic: ~1200/300 ohms; Line: 10k ohms; DI: ~150k ohms |
| Output impedance | 65 ohms |
| Max output level | +27.4 dBu at 600 ohms |
| Noise | -110 dBu equivalent input noise, unweighted 300 kHz bandwidth |
| Cmrr | 100 dB min at 60 Hz |
| Power requirements | 115/230 VAC, 28 W |
Equalizer
| High frequency | +/-16 dB shelving at 10, 12, 16, 20, 24 kHz |
|---|---|
| Mid range | +/-12 dB or +/-18 dB peaking at 160, 270, 360, 510, 700 Hz and 1.6, 3.2, 4.8, 7.2, 8.2, 10 kHz |
| Low frequency | +/-16 dB shelving at 35, 60, 110, 220 Hz |
| High pass filter | 45, 70, 160, 360 Hz |
| Low pass filter | 18 dB per octave, switchable 6, 8, 10, 14, 18 kHz |
| Phase | 180 degree phase reverse |
Physical
| Form factor | Module designed for Neve 10-series consoles or BAE rackmount enclosures; 24V PSU shown |
|---|---|
| Total eq frequencies | 28 selectable EQ frequencies |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
BAE 1028 Mic Pre/EQ Module is a handwired single-channel microphone preamplifier and equalizer module designed for Neve 10-series consoles or compatible BAE racks. It shares the mic and line preamp circuit of the BAE 1073 and adds the low pass filter of the BAE 1084 for a total of 28 selectable frequencies. The EQ provides +/-16 dB high and low shelving, +/-12 dB or +/-18 dB mid peaking, plus high pass and low pass filters. The module uses Carnhill (St Ives) transformers, Class A design, and offers 80 dB of gain with -110 dBu equivalent input noise. Frequency response is rated 10 Hz to -3 dB at 55 kHz, and maximum output level is +27.4 dBu into 600 ohms.
