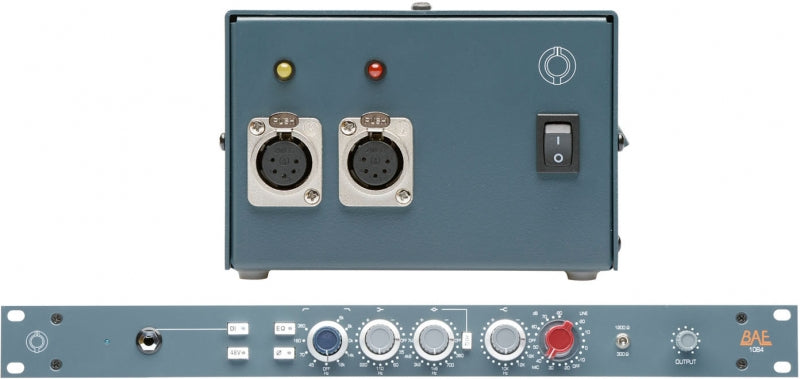

BAE 1084 Mic Pre/EQ 19-inch Rackmount Single with PSU is a hand-wired single-channel microphone preamp and equalizer in a 1U 19-inch rack format with power supply. BAE's page identifies rackmount and module versions, while dealer pages provide the technical detail for the single rackmount unit.
Specifications
Format
| Product type | Single-channel microphone preamp and equalizer with PSU |
|---|---|
| Rack format | 1U 19-inch rackmount |
| Origin | Made in USA |
| Power | 115/230 V AC, 28 W |
Preamp and I/O
| Gain | 0 to 80 dB |
|---|---|
| Mic input impedance | Approximately 1200 / 300 ohms selectable |
| Line input impedance | 10 kOhm / approximately 150 kOhm |
| Output impedance | 65 ohms |
| Connectors | Front Hi-Z direct input; rear balanced mic input, line input and balanced +4 output |
Equalizer
| High frequency | +/-16 dB shelving at 10, 12 or 16 kHz |
|---|---|
| Low frequency | +/-16 dB shelving at 35, 60, 110 or 220 Hz |
| Mid frequency | +/-12 dB or +/-18 dB peaking at 0.36, 0.7, 1.6, 3.2, 4.8 or 7.2 kHz with High Q |
| High pass filter | 18 dB/octave; dealer pages list 45/70/160/360 Hz or 50/80/160/300 Hz depending source |
| Low pass filter | 6, 8, 10, 14 or 18 kHz |
Performance
| Frequency response | 10 Hz to -3 dB at 55 kHz |
|---|---|
| Maximum output level | +27.4 dBu at 600 ohms |
| Cmrr | 100 dB minimum at 60 Hz |
| Equivalent input noise | -110 dBu unweighted, 300 kHz bandwidth |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
BAE 1084 Mic Pre/EQ 19-inch Rackmount Single with PSU is a hand-wired single-channel microphone preamp and equalizer in a 1U 19-inch rack format with power supply. BAE's page identifies rackmount and module versions, while dealer pages provide the technical detail for the single rackmount unit. The 1084 includes a mic preamp, front-panel Hi-Z direct input, phantom power, phase, rear balanced mic input, rear line input and balanced +4 output. Its EQ section provides HF shelving at 10, 12 and 16 kHz; LF shelving at 35, 60, 110 and 220 Hz; mid peaking at 0.36, 0.7, 1.6, 3.2, 4.8 and 7.2 kHz with High Q; plus high-pass and low-pass filters. Funky Junk lists 0-80 dB gain, 10 Hz to -3 dB at 55 kHz response, 1200/300 ohm mic input impedance, +27.4 dBu maximum output into 600 ohms, 115/230 V AC at 28 W, 10 lb rackmount weight and 19 x 1.75 x 9 in rackmount dimensions. .
