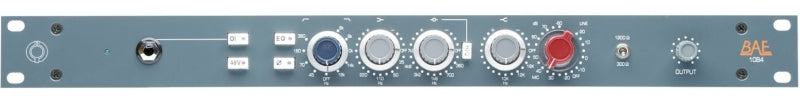

BAE 1084 is a single-channel 19-inch rackmount microphone preamp and equalizer offered in rackmount and module formats; this input title identifies the single rackmount version without PSU.
Specifications
Format
| Product type | Single-channel microphone preamp and EQ |
|---|---|
| Rack format | 19-inch 1U rackmount |
| Variant | Single rackmount unit without PSU |
| Gain | 0 to 80 dB |
EQ
| Hf eq | ±16 dB shelving at 10, 12 or 16 kHz |
|---|---|
| Mid eq | ±12 dB or ±18 dB peaking with High Q; 0.36, 0.7, 1.6, 3.2, 4.8 or 7.2 kHz |
| Lf eq | ±16 dB shelving at 35, 60, 110 or 220 Hz |
| High pass filter | 18 dB/octave at 45, 70, 160 or 360 Hz |
Audio and Controls
| Frequency response | 10 Hz to -3 dB at 55 kHz |
|---|---|
| Phase | 180° phase switch |
| Eq bypass | EQ button toggles equalizer on/off |
| Input impedance | Selectable 300 or 1200 ohm mic impedance |
Construction
| Transformers | Carnhill/St Ives transformers |
|---|---|
| Switches | Elma switches |

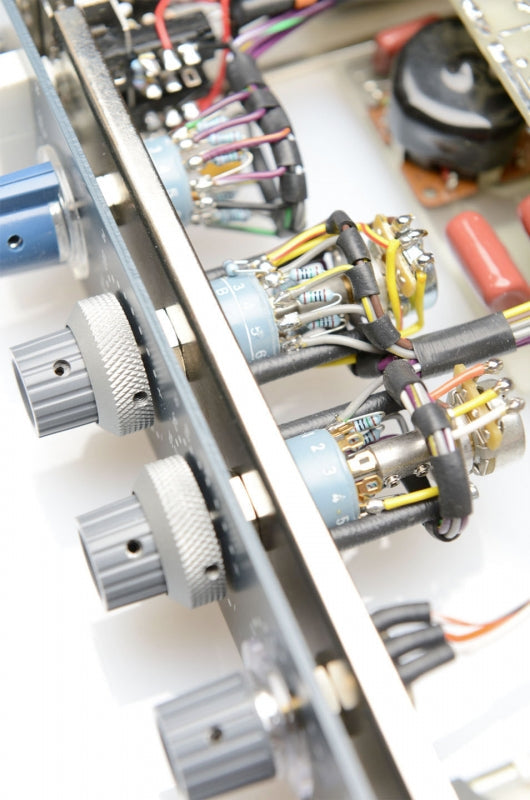

| Wiring | Hand-wired point-to-point construction |
| Country | Made in USA |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
BAE 1084 is a single-channel 19-inch rackmount microphone preamp and equalizer offered in rackmount and module formats; this input title identifies the single rackmount version without PSU. BAE's product page identifies the 1084 Rackmount & Module, while retailer data describes the rackmount unit as hand-wired and made in the USA using Carnhill/St Ives transformers, Elma switches, Canford wire, discrete electronics and point-to-point wiring. Published 1084 EQ data includes high-frequency shelving with 10, 12 and 16 kHz choices, low-frequency shelving at 35, 60, 110 and 220 Hz, midrange peaking with High Q and 0.36, 0.7, 1.6, 3.2, 4.8 and 7.2 kHz choices, plus an 18 dB/octave high-pass filter at 45, 70, 160 and 360 Hz. Search-indexed BAE data lists 0-80 dB gain and 10 Hz to -3 dB at 55 kHz response.
