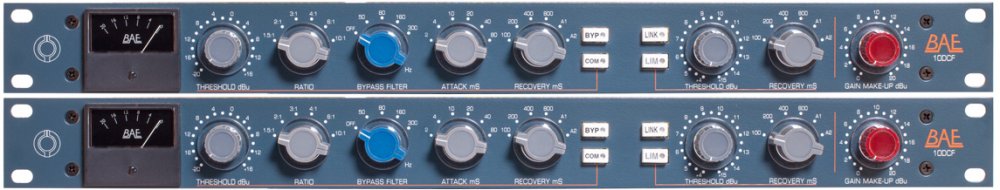

Blue metal stereo processor panel with two identical channels featuring knobs, toggle switches, meters, and red gain make-up controls.

10DCF - Stereo Channel with PSU

$5,995.00
$5,995.00
Skip to product information
Blue metal stereo processor panel with two identical channels featuring knobs, toggle switches, meters, and red gain make-up controls.
  • Blue metal stereo processor panel with two identical channels featuring knobs, toggle switches, meters, and red gain make-up controls.
  • 10DCF - Stereo Channel with PSU
  • Blue metal stereo processor panel with two identical channels featuring knobs, toggle switches, meters, and red gain make-up controls.
  • 10DCF - Stereo Channel with PSU

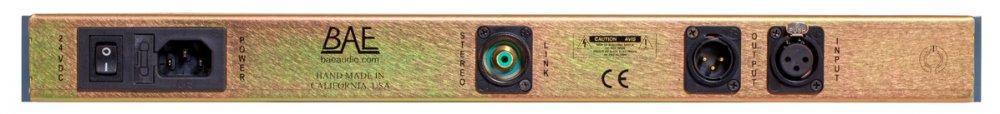

10DCF - Stereo Channel with PSU

10DCF - Stereo Channel with PSU

BAE 10DCF is a stereo-pair compressor/limiter package with external 24 VDC PSU, based on the 10DC and adding a low-frequency bypass filter.

$5,995.00
$5,995.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios needing a stereo-linkable analog compressor/limiter with stepped recall, transformer-coupled Class A circuitry, and selectable low-frequency sidechain filtering.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

50, 80, 160, and 300 Hz · 24 VDC external PSU; 200 mA consumption; one PSU can run two units

Audio Performance

Frequency response 5 Hz to 45 kHz, -1 dB, measured at +8 dBu
Noise -80 dBu with 200 ohm source
Maximum output level +33 dBu into 10 k ohms; +27 dBu into 600 ohms
Distortion Varies from 0.03% to greater than 1%

Compressor and Limiter

Compressor threshold -20 dBu to +16 dBu in 2 dB steps
Compressor ratio 1.5:1 to 10:1, 6-position switch
Compressor attack 2 ms to 80 ms, 6-position switch
Compressor recovery 100, 200, 400, 800 ms plus Auto 1 and Auto 2
Limiter threshold +4 dBu to +15 dBu in 0.5 dB steps
Limiter attack Slow 4 ms; Fast 2 ms

Hardware

Circuit Discrete Class A transformer-coupled circuit with Carnhill and Jensen transformers
Bypass filter 50, 80, 160, and 300 Hz
Makeup gain 0 to +20 dBu in 1 dB steps
Power 24 VDC external PSU; 200 mA consumption; one PSU can run two units

Fit and constraints

Studios needing a stereo-linkable analog compre… · 24 VDC external PSU; 200 mA consumption; one PSU can run two units

Intended use

Use Studios needing a stereo-linkable analog compressor/limiter with stepped recall, transformer-coupled Class A circuitry, and selectable low-frequency sidechain filtering.
Not for Users needing a digital recall compressor, published UPC/GTIN, onboard stereo bus metering beyond gain reduction, or a compact desktop processor.

Constraints

Power24 VDC external PSU; 200 mA consumption; one PSU can run two units
Bypass50, 80, 160, and 300 Hz
ControlsManufacturer page extraction was thin; detailed specifications were corroborated from a...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

BAE 10DCF is a stereo-pair compressor/limiter package with external 24 VDC PSU, based on the 10DC and adding a low-frequency bypass filter. Manufacturer and dealer documentation describe discrete Class A transformer-coupled circuitry, Carnhill and Jensen transformers, independent compressor and limiter sections, stepped Elma controls, true bypass, gain-reduction metering, and stereo linking. The sidechain/bypass filter has 50, 80, 160, and 300 Hz settings for leaving selected low-frequency content less compressed. Published specs list 5 Hz to 45 kHz frequency response at -1 dB, +33 dBu maximum output into 10 k ohms, +27 dBu into 600 ohms, and 200 mA power consumption at 24 VDC. Public MPN and GTIN were not verified.
