Mastering Limiter 2.0
Mastering Limiter 2.0

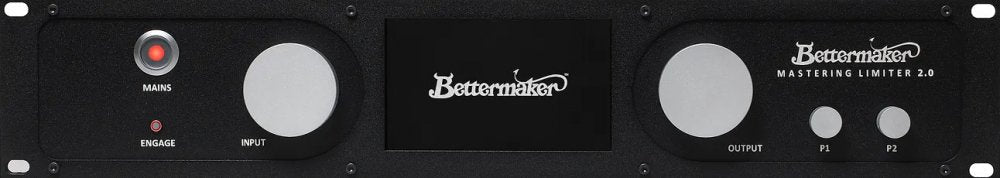

Bettermaker Mastering Limiter 2.0 is a 2U rackmount stereo mastering limiter combining a 100% analog signal path with digital control via a front-panel touchscreen and a DAW plugin over USB.
Specifications
Signal Path and Control
| Signal path | 100% analog signal path with digital control via touchscreen and USB plugin |
|---|---|
| Interface | USB Type B; appears as HID device in DAW |
| Front panel | Large LCD touchscreen with wide-angle high-contrast display (2.0 revision) |

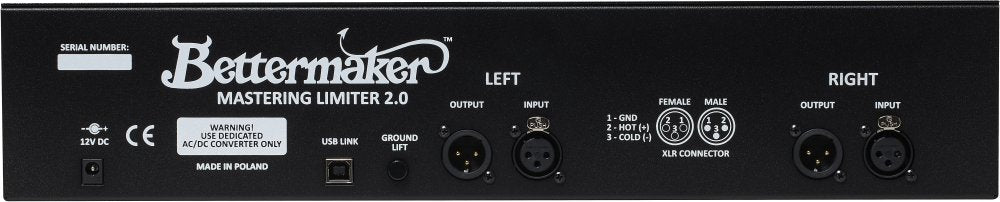

| Audio connectors | Balanced XLR input and output |
Limiter and Clipper
| Max gain reduction | 20 dB |
|---|---|
| Attack time | 0.1 to 250 ms |
| Release time | 2 ms to 2 s plus IREL intelligent release (2.0); 0.01 to 1.3 s plus IREL on manufacturer page |
| Input adjust range | 0 to +20 dB |
| Output adjust range | -10 to +12 dB |
| Clipper | Variable mix between limiting and clipping; redesigned clipper section with two independent clipper sections and trim in 2.0 |
| Sidechain | Sidechain HPF (off or 20 to 200 Hz, 2nd order) plus mid boost (off or 8 dB at 2 kHz or 7 kHz) in 2.0 |
| Mid side | Mid/Side mode available in color and limiting sections |
Color and Saturation
| Color section | Two simultaneous color modules: Color 1 (odd harmonics) and Color 2 (even harmonics), both internally EQable |
|---|---|
| Color ms matrix | Redesigned color section with M/S matrix in 2.0 |
Audio Performance
| Max input level | +24 dBu balanced (48 kohm input impedance) on 2.0 listing; +21.5 dBu balanced on manufacturer page |
|---|---|
| Max output level | +27 dBu balanced (50 ohm + 50 ohm output impedance) on 2.0 listing; +23 dBu (THD < 0.1%) on manufacturer page |
| Frequency response | 6 Hz to 27 kHz (-0.5 dB); +/-0.1 dB flatness 20 Hz to 20 kHz |
| Dynamic range | 107 dB (20 kHz bandwidth, +24 dBu) |
| Thd plus n | 0.05% (20 kHz BW, +4 dBu, 1 kHz); THD 0.03% at +4 dBu |
| Cmrr | >80 dB (20 Hz to 20 kHz, IEC 60268-3) |
| Crosstalk | >76 dB (20 Hz to 20 kHz, +18 dBu, channel to channel) |
Metering
| Meter types | VU, PPM, RMS and peak with peak hold; LUFS short-term, integral, loudness range and time view; K-metering |
|---|---|
| Analysis | 30-band FFT analyzer, goniometer and correlation meter; two measurement points (limiter output and plugin) |
Power and Physical
| Power | 100 to 240 VAC adapter supplied; max 25 W consumption, <2 W standby |
|---|---|
| Enclosure | 2U rackmount, 230 mm deep |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Bettermaker Mastering Limiter 2.0 is a 2U rackmount stereo mastering limiter combining a 100% analog signal path with digital control via a front-panel touchscreen and a DAW plugin over USB. The 2.0 revision adds an improved limiting engine, redesigned clipper and color/saturation section with mid-side matrix, sidechain high-pass filter and mid boost, plus a new GUI and wide-angle high-contrast screen. The analog section handles up to +24 dBu balanced input and +27 dBu balanced output through low-noise op-amps and relays with true bypass, while two microcontrollers manage limiting, presets, metering and USB. Metering covers input/output/gain reduction plus VU/PPM/RMS/peak, LUFS, K-metering, a 30-band FFT analyzer, goniometer and correlation meter. Retailer listings cite a 2U enclosure 230 mm deep with approximately 5 kg shipping weight; the manufacturer page did not expose an MPN or GTIN.
