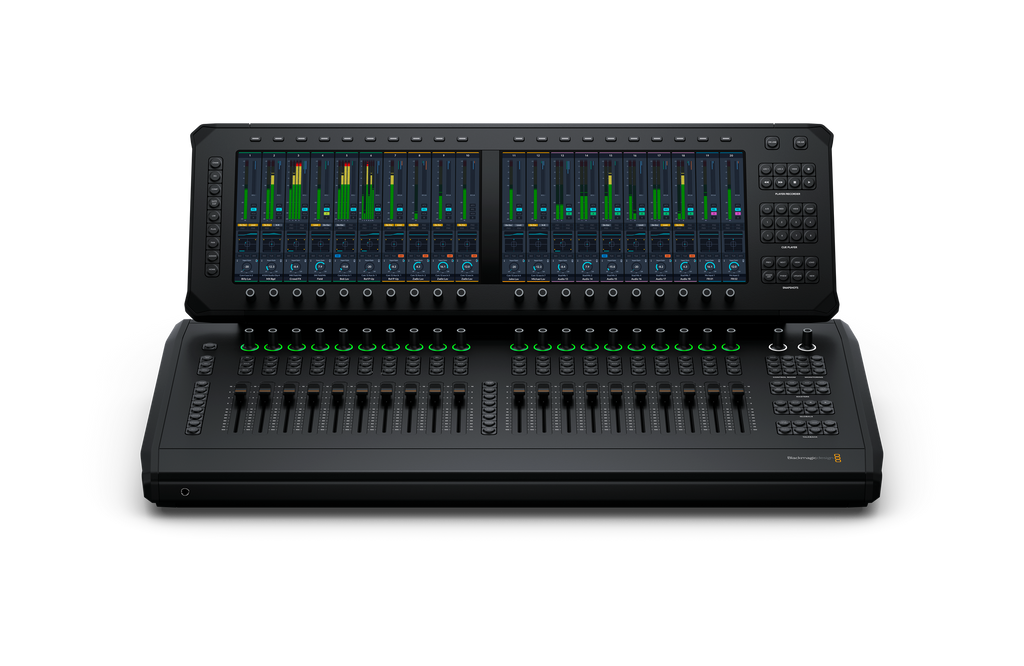

Black audio mixing console with two display screens showing level meters and multiple faders, knobs, and buttons.

BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer

$5,209.00
$5,209.00
Skip to product information

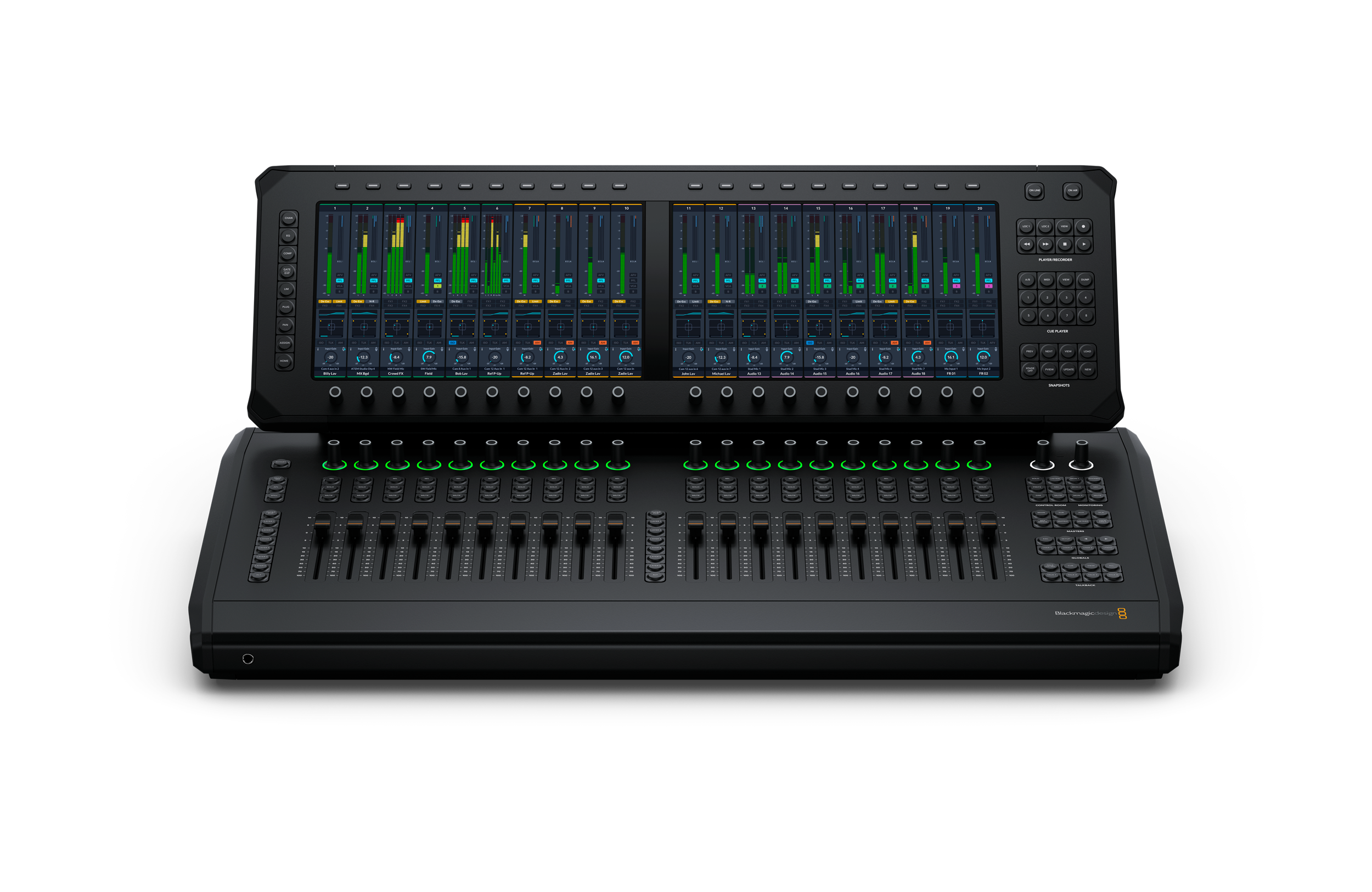

Black audio mixing console with two display screens showing level meters and multiple faders, knobs, and buttons.
  • Black audio mixing console with two display screens showing level meters and multiple faders, knobs, and buttons.
  • BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer
  • BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer
  • Black audio mixing console with two display screens showing level meters and multiple faders, knobs, and buttons.
  • BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer
  • BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer
BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer

BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer

Blackmagic Design Fairlight Live Audio Panel 20 is a desktop control surface for the Fairlight Live software mixing system. Blackmagic specifies 20 motorized flying faders, two 11.6-inch 1920 x 1080 LCD touch screens, 20 multi-function rotary knobs, 20 contextual rotary knobs and 20 contextual buttons.

$5,209.00
$5,209.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Live broadcast and production environments using Blackmagic Fairlight Live that need tactile control over 20 channels with integrated touch displays.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Desktop control surface for Fairlight Live · 2 x IEC C14 power inputs

Format

Product type Desktop control surface for Fairlight Live
Faders 20 motorized flying faders
Displays 2 x 11.6-inch 1920 x 1080 LCD touch screens

Controls

Rotary knobs 20 multi-function rotary knobs and 20 contextual rotary knobs
Contextual buttons 20 contextual buttons
Mixing sections Layers, Bus, Matrix, Aux, VCA, Sub-masters, Talkback, Snapshots, Player/Recorder, Cue Player, Control Room/Monitoring, Masters and Globals

Network and I/O

Network 2 x 10G RJ45 Ethernet for 2110 IP video/audio networks; 1 x 1G RJ45 for control, configuration and software updates
Computer connection USB Type-C for computer connection, configuration and software updates
Video output 1 x HDMI Type A output supporting HD and Ultra HD standards
Talkback monitoring Built-in talkback mic, 5-pin XLR headset, 3-pin XLR mic input, headphone sockets and analog monitor outputs

System and Power

Software Fairlight Live; Blackmagic OS
Supported os Mac 15.0 Sequoia, Mac 26.0 Tahoe or later, Windows 11
Power inputs 2 x IEC C14 power inputs

Fit and constraints

Live broadcast and production environments usin… · 2 x IEC C14 power inputs

Intended use

Use Live broadcast and production environments using Blackmagic Fairlight Live that need tactile control over 20 channels with integrated touch displays.
Not for Users needing a standalone analog/digital mixer, DAW-agnostic control surface, integrated mic preamps, or published physical dimensions before purchase.

Constraints

Power2 x IEC C14 power inputs
ControlsThe input title says mixer, but Blackmagic identifies this as an Audio Panel/control su...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Blackmagic Design Fairlight Live Audio Panel 20 is a desktop control surface for Fairlight Live audio productions. It features 20 motorized flying faders, two 11.6-inch 1920 x 1080 LCD touchscreens, 20 multi-function rotary knobs, and 20 contextual buttons for controlling layers, buses, matrix outputs, aux sends, VCA groups, submasters, and talkback. Connectivity includes dual 10G Ethernet ports for SMPTE-2110 networks, one 1G Ethernet control port, USB-C, and HDMI monitoring output.

Seller notes: BLACKMAGIC DESIGN Fairlight Live Audio Panel 20 mixer. Blackmagicdesign.
