Burl Audio B80-BAD16 identifies a B80 Mothership modular converter configuration using BAD16 analog-to-digital conversion cards.
Specifications
System Format
| Product type | Modular configurable AD/DA interface and converter chassis with BAD16 ADC configuration |
|---|---|
| Chassis | Heavy-duty 4U B80 Mothership chassis |
| Card slots | 10 card slots accepting AD/DA, AES and BCLK cards |
| Backplane | Burl Backbone sends master clock directly to each daughter card |
BAD16 Conversion

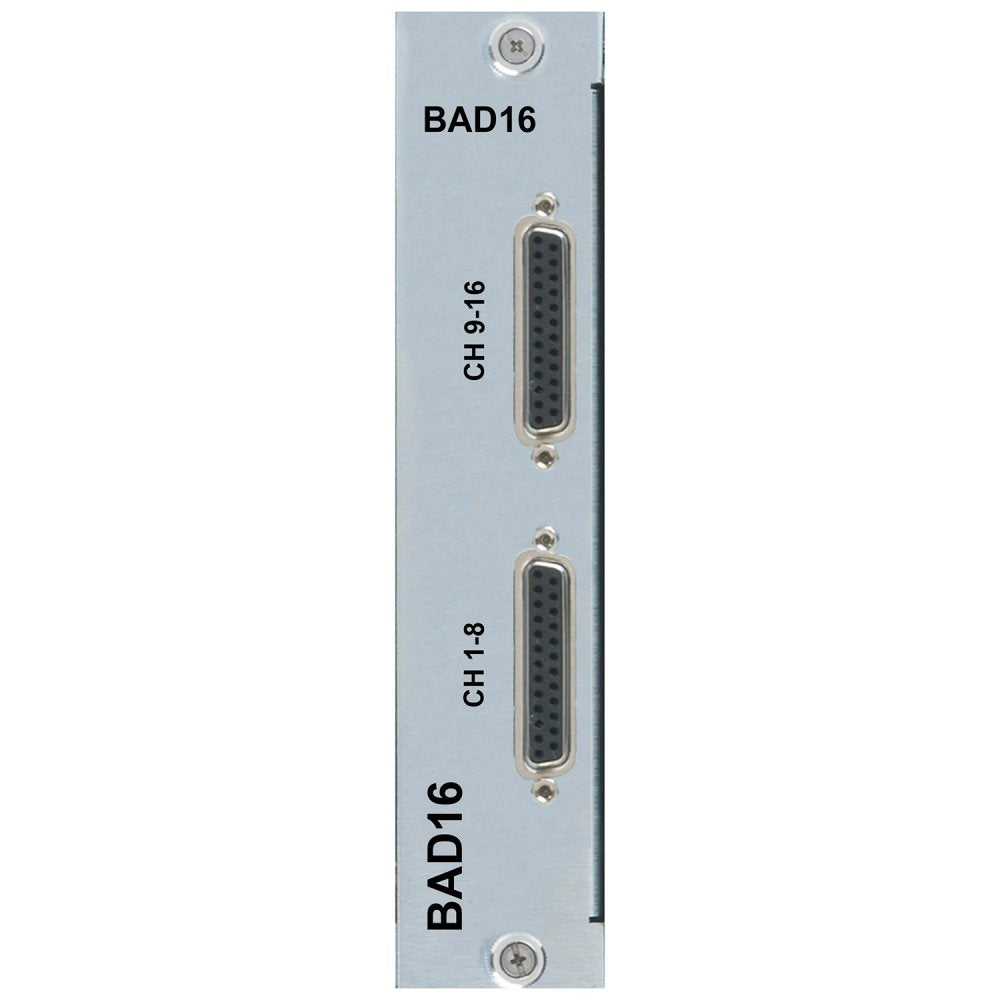

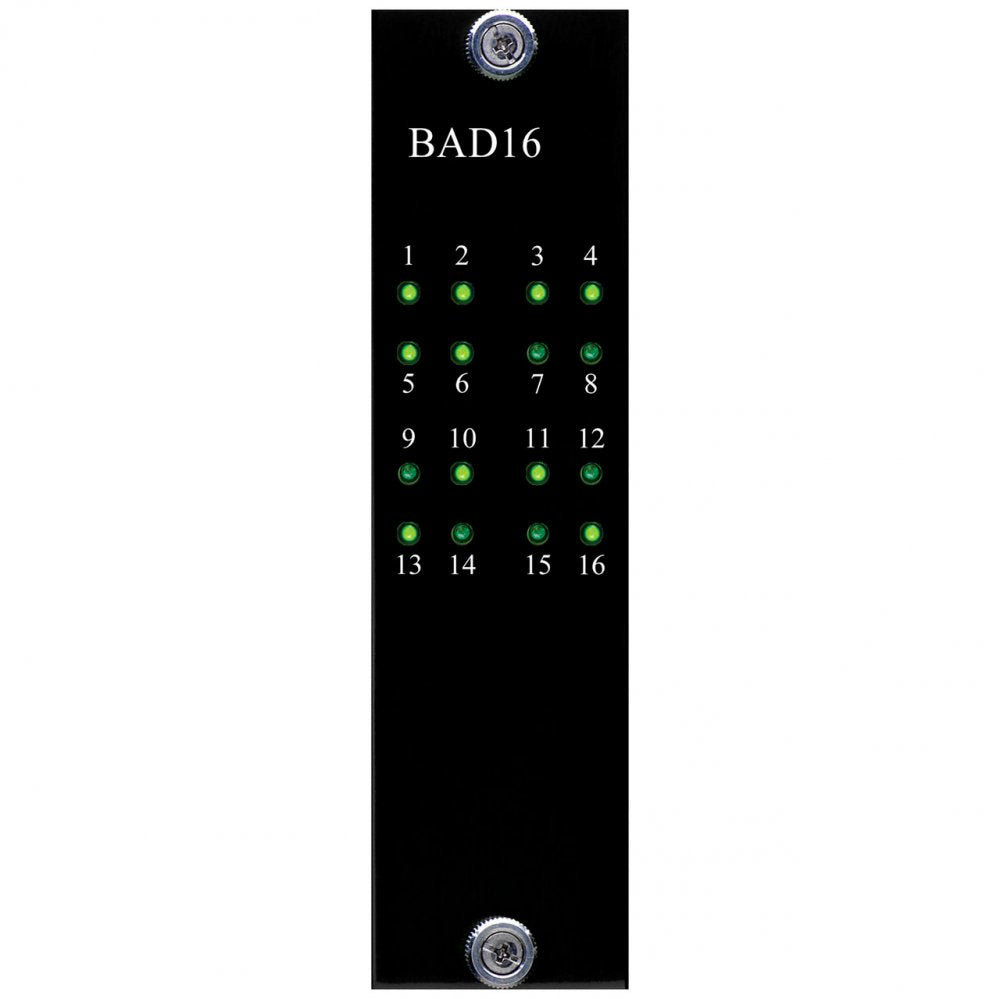

| Daughter card | BAD16 BURL BLACK ADC daughter card |
|---|---|
| Per card channels | 16 channels of analog-to-digital conversion |
| Analog topology | All class-A analog, all discrete transistor BURL NextGen circuit path |
| Transformer | Burl BX8 transformer |
| Max adc channels b80 | 128 maximum ADC channels with 8 BAD16 cards and BMB2-MADI or BMB3-Dante at 44.1/48 kHz |
Digital Motherboards
| Bmb1 digilink | 2 DigiLink ports, 64-channel I/O at all sample rates, 2 word-clock outputs and 1 word-clock input |
|---|---|
| Bmb2 madi | 2 optical MADI ports; 64 in/64 out at 44.1-96 kHz and 32 in/32 out at 176.4/192 kHz |
| Bmb3 dante | Dante Ethernet; 64 in/64 out at 44.1-96 kHz and 32 in/32 out at 176.4/192 kHz |
| Bmb4 soundgrid | One SoundGrid Ethernet port with 64-channel I/O at 44.1-96 kHz |
Power and Clocking
| Power supply | BP300 with 300 W continuous power capability and +/-24 V rails |
|---|---|
| Word clock | Base motherboards provide word clock I/O; BCLK cards can add nine additional word clock outputs per slot and up to 92 total word-clock outputs per B80 |
| Mothership 3 | BAD16 is Mothership 3 compatible |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Burl Audio B80-BAD16 identifies a B80 Mothership modular converter configuration using BAD16 analog-to-digital conversion cards. Burl describes the B80 Mothership as an 80-channel configurable AD/DA interface in a heavy-duty 4U chassis with 10 card slots, a Burl Backbone backplane, BP300 power supply with 300 W continuous capability and +/-24 V rails, and swappable digital motherboards for DigiLink, MADI, Dante and SoundGrid workflows. The BAD16 is a BURL BLACK ADC daughter card for B80 and B16 systems, providing 16 channels of analog-to-digital conversion with an all-discrete transistor, class-A, transformer-coupled NextGen analog path and BX8 input transformers. Burl states that a B80 can hold up to eight BAD16s for 128 maximum ADC channels when using BMB2-MADI or BMB3-Dante at 44.1 or 48 kHz. B80 motherboard options include BMB1 DigiLink, BMB2 MADI, BMB3 Dante and BMB4 SoundGrid; exact installed motherboard and card count are not implied by the model_key.
