Chandler Limited RS660 Compressor is a mono, stereo-linkable valve compressor/limiter developed under Chandler's Abbey Road Studios equipment line.
Specifications
Format
| Product type | Mono valve compressor/limiter |
|---|---|
| Rack format | Two-space 19-inch rackmount |
| Channels | Mono, stereo-linkable |
Circuit
| Circuit type | Valve circuit |
|---|---|
| Valves | 1 x 6386, 1 x 6CG7, 1 x 6AL5 |
| Construction | Hand-built in Shell Rock, Iowa with through-hole components |
I/O
| Input | XLR pin 2 hot, transformer balanced, 15 kOhm impedance |
|---|---|
| Output | XLR pin 2 hot, transformer balanced, selectable 200/600 ohm impedance |
| Link | 1/4-inch mono link connector, tip CV and sleeve 0 V |
Controls
| Input output | Variable input and output potentiometers, optional stepped controls |
|---|---|
| Compressor modes | THD, Limit and Comp switched modes |
| Time constant | Selectable seven-position stepped switch |
| Output impedance switch | 200/600 ohm toggle switch |
Power
| Power supply | Internal supply, preset for 120 V or 220 V region |
|---|---|
| Fuse | 0.25 A / 250 mA, 250 V SLO-BLO |
| Warm up | 10-minute warm-up recommended before passing signal |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

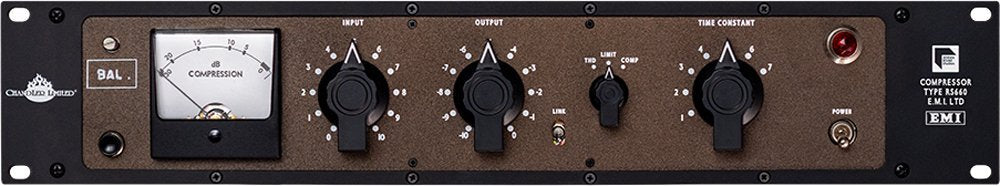

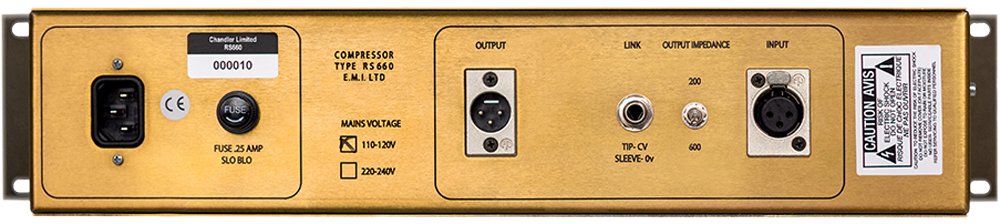

Chandler Limited RS660 Compressor is a mono, stereo-linkable valve compressor/limiter developed under Chandler's Abbey Road Studios equipment line. The user manual specifies a two-space 19-inch rackmount chassis with internal power supply, transformer-balanced XLR input and output, 15 kOhm input impedance, selectable 200/600 ohm output impedance and a 1/4-inch mono link connection. The valve inventory is one 6386, one 6CG7 and one 6AL5. Controls include variable input and output, switchable compressor modes for THD, Limit and Comp, seven-position time constant selection, switchable link defeat/bypass, front-panel balance function and output impedance switching. Power is preset internally for 120 V or 220 V, with a 0.25 A 250 V SLO-BLO fuse, IEC power inlet and recommended 10-minute warm-up before passing signal.
