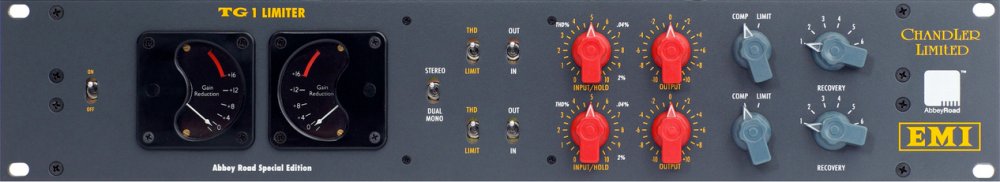

Front view of a black audio processor panel with knobs, meters, switches, and branding text.

TG1 Abbey Road Special Edition

$5,895.00
$5,895.00
Skip to product information
Front view of a black audio processor panel with knobs, meters, switches, and branding text.
  • Front view of a black audio processor panel with knobs, meters, switches, and branding text.
  • Front view of a black audio processor panel with knobs, meters, switches, and branding text.
TG1 Abbey Road Special Edition

TG1 Abbey Road Special Edition

Chandler Limited TG1 Abbey Road Special Edition is a dual-channel stereo/dual-mono analog limiter/compressor based on the EMI TG12413 limiter used in Abbey Road and EMI consoles.

$5,895.00
$5,895.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios wanting a two-channel analog dynamics processor with EMI TG-style compression/limiting behavior for tracking, drum rooms, bass, guitars or mix-bus color where coloration is intentional.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Analog limiter/compressor · Requires external Chandler Limited PSU-1 or PSU-1 MKII

Format

Processor type Analog limiter/compressor
Channels Stereo / dual mono
Rack format 2U, 19-inch rackmount
Power supply Requires external Chandler Limited PSU-1 or PSU-1 MKII

Circuit and Controls

Circuit All-discrete transistor circuit
Gain control element Diode-network limiting element
Io balancing Transformer-balanced input and output
Control set Hold, Output, Comp/Limit and Recovery with stereo linking

Performance

Input impedance 300 ohms
Output impedance 600 ohms
Maximum output level +28 dBm
Frequency range 15 Hz to 20 kHz
Distortion 0.22% with Hold control full up

Fit and constraints

Studios wanting a two-channel analog dynamics p… · Requires external Chandler Limited PSU-1 or PSU-1 MKII

Intended use

Use Studios wanting a two-channel analog dynamics processor with EMI TG-style compression/limiting behavior for tracking, drum rooms, bass, guitars or mix-bus color where coloration is intentional.
Not for Users needing transparent VCA-style control, digital recall, sidechain filtering, onboard power supply or fully documented manufacturer-published specifications.

Constraints

PowerRequires external Chandler Limited PSU-1 or PSU-1 MKII
ControlsOfficial Chandler product/spec pages were not accessible in this run; some performance ...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Chandler Limited TG1 Abbey Road Special Edition is a stereo/dual-mono analog limiter-compressor built on all-discrete transistor circuitry with transformer-balanced inputs and outputs. It employs a diode-network limiting element and includes a bypass mode that engages harmonic distortion generation up to approximately 2% THD. The unit operates in 2U rackmount format and requires an external Chandler Limited PSU-1 or PSU-1 MKII power supply. Brand new condition.

Seller notes: CHANDLER LIMITED TG1 Abbey Road Special Edition. CHANDLER LIMITED TG 1 LIMITER.
