Crane Song Avocet Upgrade refers to the Avocet monitor-controller upgrade path associated with the Avocet II/IIA generation rather than a standalone instrument.
Specifications
Upgrade Context
| Product type | Avocet monitor-controller upgrade/update associated with Avocet II/IIA DAC and output features |
|---|---|
| Standalone unit | No standalone upgrade-kit hardware specification verified in accessible sources |
| Not ad converter | Avocet is described as a monitor controller with D/A monitoring, not an A/D mastering-loop converter |
Quantum DAC Update
| Dac generation | Quantum DAC, fifth-generation Crane Song design |
|---|---|
| Converter | 32-bit converter with ASRC for jitter reduction |
| Upsampling | Upsampling to 211 kHz |
| Clock jitter | Reference clock less than 1 ps; 0.5 ps typical from 1 Hz to 100 kHz |
| Filter | Proprietary reconstruction filter for accurate time-domain response |
Monitor Controller Features
| Inputs | Three digital inputs and three analogue inputs |
|---|---|
| Speaker outputs | Three speaker outputs with direct subwoofer outputs added in Avocet IIA |
| Level matching | Programmable output levels in 0.25 dB steps |
| Controls | Dim, mute, phase, mono and 16-bit truncation functions |
| Headphone talkback | Headphone system with provisions for talkback |
System Configuration

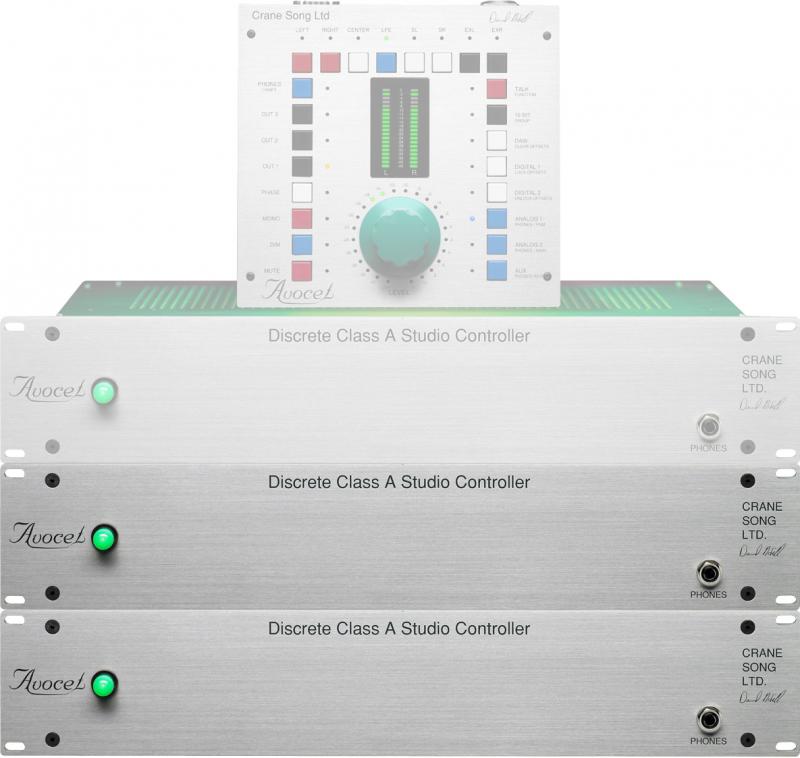

| Hardware layout | Rack-mounted audio unit with tabletop remote control |
|---|---|
| Surround expansion | Can operate in surround up to 7.1 with appropriate number of audio boxes |
| Remote cable | Original Avocet reviews describe a 25-foot remote cable |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
The Crane Song Avocet Upgrade is a monitor controller designed for use with Avocet II/IIA DACs, featuring a fifth-generation Quantum DAC with 32-bit conversion and ASRC technology for jitter reduction. The unit upsamples to 211 kHz and incorporates a reference clock with less than 1 ps jitter, along with a proprietary reconstruction filter. It includes three digital and three analog inputs for flexible monitoring integration.
