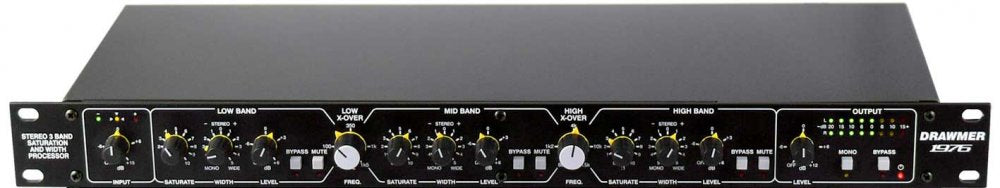

Front panel of a Drawmer 1976 stereo 3-band saturation and width audio processor with knobs, buttons, and LED level meters.

DRAWMER 1976

$1,975.00
$1,975.00
Skip to product information
Front panel of a Drawmer 1976 stereo 3-band saturation and width audio processor with knobs, buttons, and LED level meters.
  • Front panel of a Drawmer 1976 stereo 3-band saturation and width audio processor with knobs, buttons, and LED level meters.
  • 1976
  • Front panel of a Drawmer 1976 stereo 3-band saturation and width audio processor with knobs, buttons, and LED level meters.
  • 1976
DRAWMER 1976

DRAWMER 1976

Drawmer 1976 is a stereo three-band analogue saturation and width processor, not a guitar pedal and not the Drawmer 1973 FET compressor.

$1,975.00
$1,975.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Mix engineers and live-sound users who want hardware three-band analogue saturation plus frequency-selective stereo-width shaping.
Requires compatible power supply or battery, instrument and patch cables
In stock Ask a question

Specifications

stereo three-band analogue saturation and width processor · 230 V or 115 V at 50–60 Hz, 15 VA

Identity

Playbook mismatch listed in pedals lane, but manufacturer describes a stereo three-band saturation and width processor
Device type stereo three-band analogue saturation and width processor
Analog digital analogue processing
Model caution Drawmer sitemap lists 1973 as the Three-Band Stereo FET Compressor and 1976 as the Stereo Three-Band Saturation & Width Processor

Processing

Saturation bands 3
Width bands 3
Crossover points variable
Stereo mono switchable
Width method M/S encoder/decoder

Audio specifications

Input impedance 20 kΩ or greater
Max input level +26 dBu
Output impedance <100 Ω
Max output level +26 dBu into 10 kΩ load
Frequency response 20 Hz to 20 kHz ±0.2 dB
Thd noise 0.007% at 1 kHz, 0 dB ref +4
Crosstalk <-75 dB L/R at 1 kHz

Power and physical

Power 230 V or 115 V at 50–60 Hz, 15 VA
Dimensions 482 x 202 x 44
Weight 2.8

Standard metafields

Material rugged steel chassis and aluminium front panel

Fit and constraints

Mix engineers and live-sound users who want har… · 230 V or 115 V at 50–60 Hz, 15 VA · 3

Intended use

Use Mix engineers and live-sound users who want hardware three-band analogue saturation plus frequency-selective stereo-width shaping.
Not for Guitar-pedal shoppers should skip it: the manufacturer describes a mains-powered studio saturation/width processor, not a stompbox.

Constraints

Power230 V or 115 V at 50–60 Hz, 15 VA
Board space3
ControlsDo not confuse Drawmer 1976 with Drawmer 1973: Drawmer's sitemap lists 1973 as the Thre...

To use it

Required compatible power supply or battery, instrument and patch cables

Questions

3 to ask before buying

What voltage, polarity, and current does this exact revision require?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Are the original box, power supply, and any model-specific accessories included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Does this listing match the exact revision and finish shown in the source photos?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Drawmer 1976 is a three-band stereo saturation and width processor built with analog circuitry. It offers independent saturation control across three frequency bands alongside stereo width adjustment, allowing you to shape tone and spatial characteristics in a single device. Brand new condition.
