BD600+
BD600+

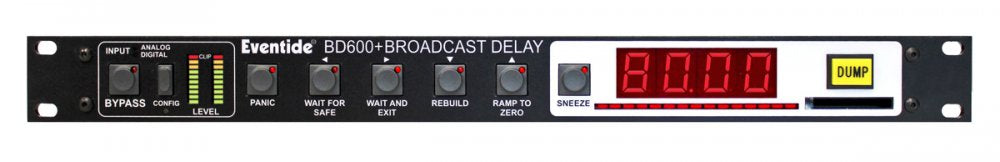

Eventide BD600+ is a professional broadcast profanity delay processor. Eventide describes it as an 80-second stereo delay unit with analog XLR-type inputs and outputs plus AES/EBU digital audio I/O.
Specifications
Format
| Product type | Professional broadcast profanity delay processor |
|---|---|
| Delay buffer | Up to 80 seconds stereo delay |
| Rack format | 1U rackmount |
Delay Functions
| Profanity delay lengths | 4, 6, 8, 12, 16, 20, 30, 40, 60 or 80 seconds |
|---|---|
| Dump length | User-defined DUMP length in 0.5-second increments up to 10 seconds |
| Microprecision delay | Fixed delay from 0.010 seconds to 9.999999 seconds in microsecond steps |
| Panic mode | Plays preloaded WAV file from Compact Flash while delay rebuilds |
| Sneeze | SNEEZE function for temporary mute/edit without dumping the full delay |
Audio I/O

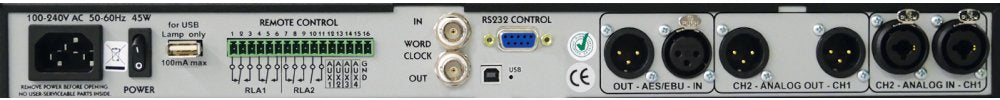

| Analog io | Balanced XLR analog inputs and outputs, pin 2 hot, +4 dBm nominal |
|---|---|
| Digital io | Two-channel 24-bit AES/EBU digital input and output |
| Sample rates | 44.1 kHz, 48 kHz, word clock or AES/EBU sync |
| Compact flash | Supports Type I and Type II Compact Flash for WAV playback and software updates |
Performance
| Frequency response | Live/bypass 20 Hz-20 kHz +/-0.1 dB; broadcast delay 10 Hz-20 kHz +/-0.1 dB |
|---|---|
| Analog input | 20 kOhm bridging input impedance, +26 dBu full-scale input, >104 dB dynamic range |
| Analog output | >108 dB dynamic range and >108 dB SNR listed; output impedance is listed as 20 kOhm bridging on retailer page |
| Thd n | <0.003% at 1 kHz, -3 dBFS |
| Crosstalk | <-100 dB from 20 Hz to 20 kHz |
Control and Power
| Remote control | USB remote control, RS-232 I/O, 4 configurable control inputs and 2 relay-isolated control outputs |
|---|---|
| Power | 40 W, 100-240 VAC, 50/60 Hz |
Fit and constraints
Intended use
Constraints
To use it
Questions
What voltage, polarity, and current does this exact revision require?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Are the original box, power supply, and any model-specific accessories included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Does this listing match the exact revision and finish shown in the source photos?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Eventide BD600+ is a professional broadcast profanity delay processor. Eventide describes it as an 80-second stereo delay unit with analog XLR-type inputs and outputs plus AES/EBU digital audio I/O. It is intended for live radio and broadcast delay protection, with configurable profanity delay lengths, a DUMP function, SNEEZE muting/edit behavior, PANIC backup playback from Compact Flash and MicroPrecision Delay for HD radio analog/digital synchronization. Retailer specifications list analog balanced XLR I/O at +4 dBm nominal, 20 kOhm bridging input impedance, +26 dBu full-scale analog input, >104 dB input dynamic range, >108 dB output dynamic range, THD+N below 0.003% at 1 kHz/-3 dBFS, and 20 Hz-20 kHz +/-0.1 dB frequency response in live/bypass and broadcast delay modes. Digital audio is two-channel 24-bit AES/EBU with 44.1 kHz, 48 kHz, word clock or AES/EBU sync. Dimensions are 1U rackmount and Full Compass lists brand part #1189-001; .
