FERROFISH A32 Pro Dante — Converter
FERROFISH A32 Pro Dante — Converter
Ferrofish A32 Pro Dante is a 1RU fanless 32 x 32 AD/DA converter and routing system for analog audio, MADI, ADAT and Dante/AES67 networks.
Specifications
Format and Routing
| Product type | 32 x 32 AD/DA, MADI, ADAT and Dante/AES67 smart converter/router |
|---|---|
| Rack format | 1RU fanless rackmount |
| Routing matrix | Internal matrix for routing and splitting all 192 inputs to all 192 outputs; channels routable in groups of 8 |
| Total channels | Manufacturer page cites 386 processed channels; USA page cites 388 total channels |
Analog Conversion
| Analog io | 32 balanced analog inputs and 32 balanced analog outputs on 8 D-Sub25 connectors |
|---|---|
| Converter chips | 32-bit ESS A/D and D/A conversion |
| Analog level range | +20 dBu to -8 dBu, adjustable in 1 dB steps |
| Op amps | OPA1604 / OPA1664 |
Digital I/O
| Dante | 2 x RJ-45 Ethernet ports, 64 x 64 channel Dante Brooklyn II board, AES67 support and redundant network operation |
|---|---|
| Madi | 2 redundant MADI SFP ports; 64 channels at 32/44.1/48 kHz, 32 channels at 64/88.2/96 kHz and 32 channels at 128/176.4/192 kHz |
| Adat | 4 x 4 ADAT TOSLINK; 8 channels per port at 48 kHz, SMUX/2 up to 96 kHz |
| Sample rate | Up to 192 kHz |
Control and Monitoring

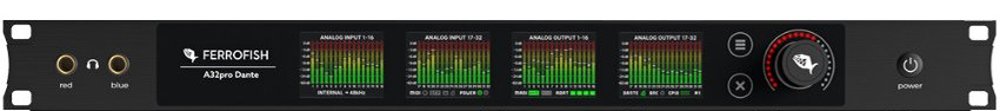

| Displays | Four multitouch TFT screens show all 64 analog I/O channels plus interface, GPIO and preset status |
|---|---|
| Remote control | RemoteFish for PC/Mac via USB-over-MIDI, MIDI, MIDI-over-MADI or remote-over-Dante |
| Headphone outputs | Two front-panel headphone outputs can monitor analog or digital I/O in mono, stereo, M/S, dual stereo or fully balanced modes |
| Clocking | Temperature-compensated high-precision clock with active jitter reduction; digital output jitter cited as 50-100 ps |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

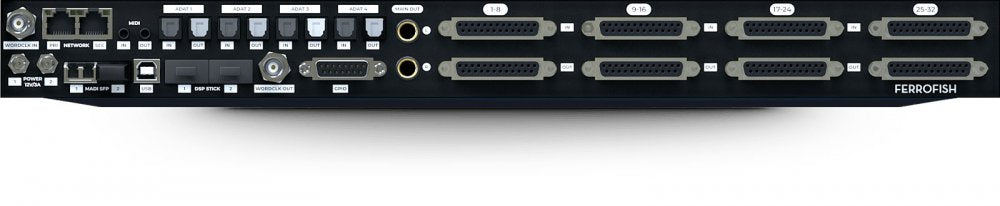

Ferrofish A32 Pro Dante is a 1RU fanless 32 x 32 AD/DA converter and routing system for analog audio, MADI, ADAT and Dante/AES67 networks. It provides 32 balanced analog inputs and 32 balanced analog outputs on D-Sub25 connectors, four ADAT I/O ports, dual SFP MADI ports, two RJ-45 Dante network ports with a 64 x 64 Brooklyn II board, word clock I/O, MIDI, GPIO and USB Type-B for firmware/remote functions. The unit routes and splits signals through an internal matrix and supports sample rates up to 192 kHz, with analog levels adjustable from -8 dBu to +20 dBu in 1 dB steps. Ferrofish specifies ESS 32-bit AD/DA conversion, active jitter reduction, a temperature-compensated clock, four multitouch TFT displays, dual headphone outputs and optional redundant power supply operation.
