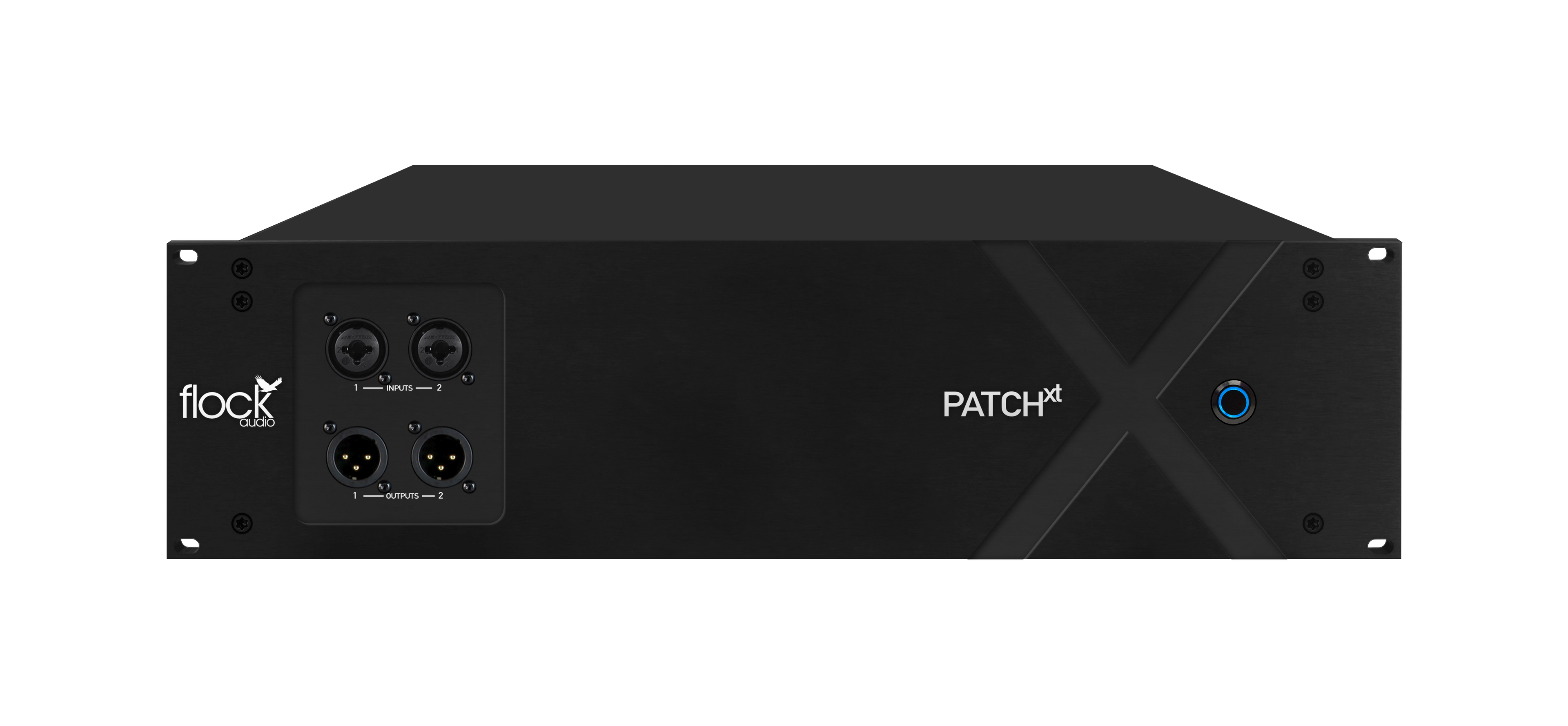

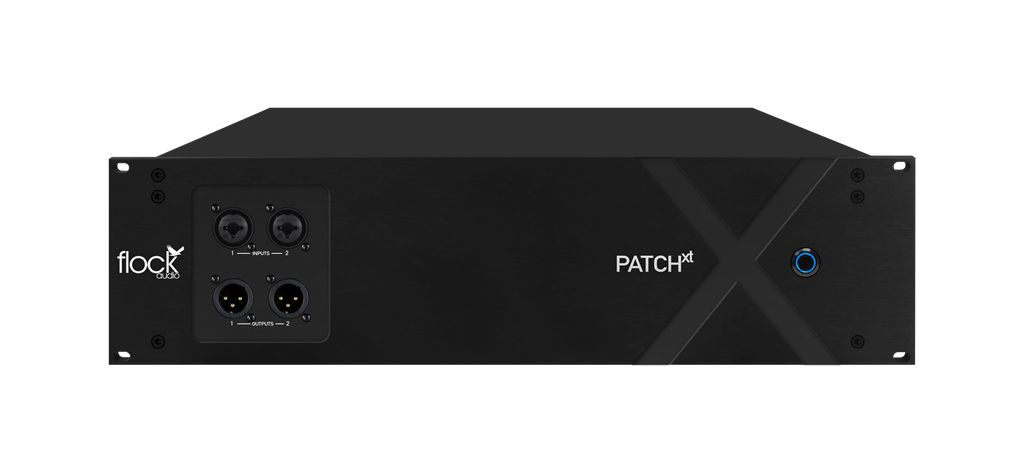

Front view of the Flock Audio PATCH XT, a 3U rackmount digitally controlled analog patchbay with a machined anodized front panel featuring two combo TRS/XLR inputs and two XLR outputs.

FLOCK AUDIO PATCH XT — Patchbay

$17,475.00
$17,475.00
Skip to product information
Front view of the Flock Audio PATCH XT, a 3U rackmount digitally controlled analog patchbay with a machined anodized front panel featuring two combo TRS/XLR inputs and two XLR outputs.
  • Front view of the Flock Audio PATCH XT, a 3U rackmount digitally controlled analog patchbay with a machined anodized front panel featuring two combo TRS/XLR inputs and two XLR outputs.
  • FLOCK AUDIO PATCH XT — Patchbay
  • Front view of the Flock Audio PATCH XT, a 3U rackmount digitally controlled analog patchbay with a machined anodized front panel featuring two combo TRS/XLR inputs and two XLR outputs.
  • FLOCK AUDIO PATCH XT — Patchbay
FLOCK AUDIO PATCH XT — Patchbay

FLOCK AUDIO PATCH XT — Patchbay

$17,475.00
$17,475.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios with large outboard collections that want console-free, software-recallable analog routing at scale: 96 inputs and 96 outputs (192 patch points) on DB-25 Tascam-pinout connectors, routed from the PATCH APP on macOS or Windows over USB 2.0 or optional CAT5…
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

32 independently controllable channels of 48V

I/O & Connectors

Total Patch Points 192 points (96 inputs / 96 outputs)
Inputs 96
Outputs 96

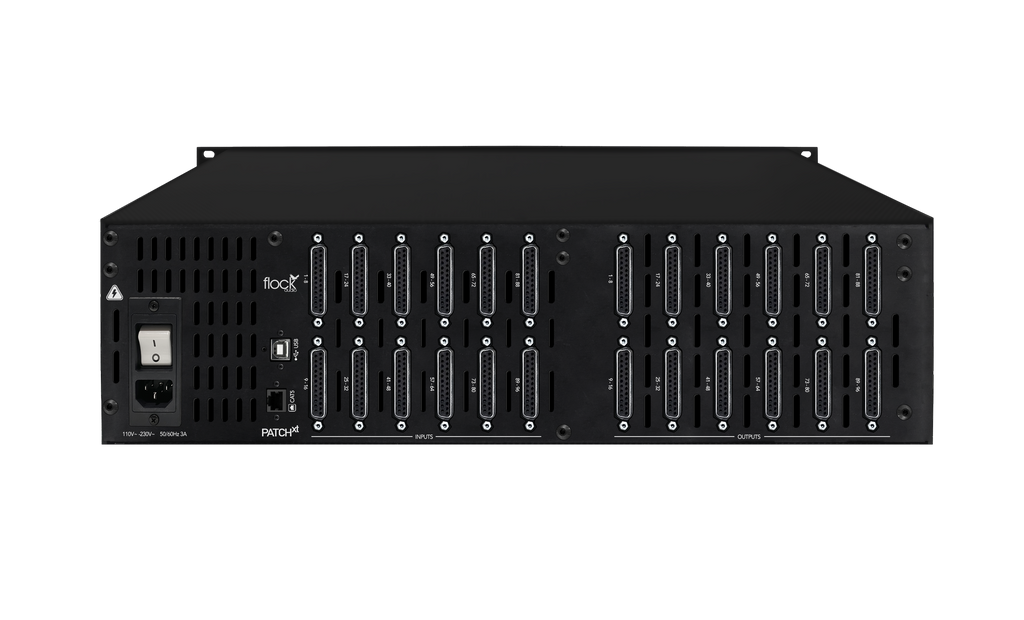

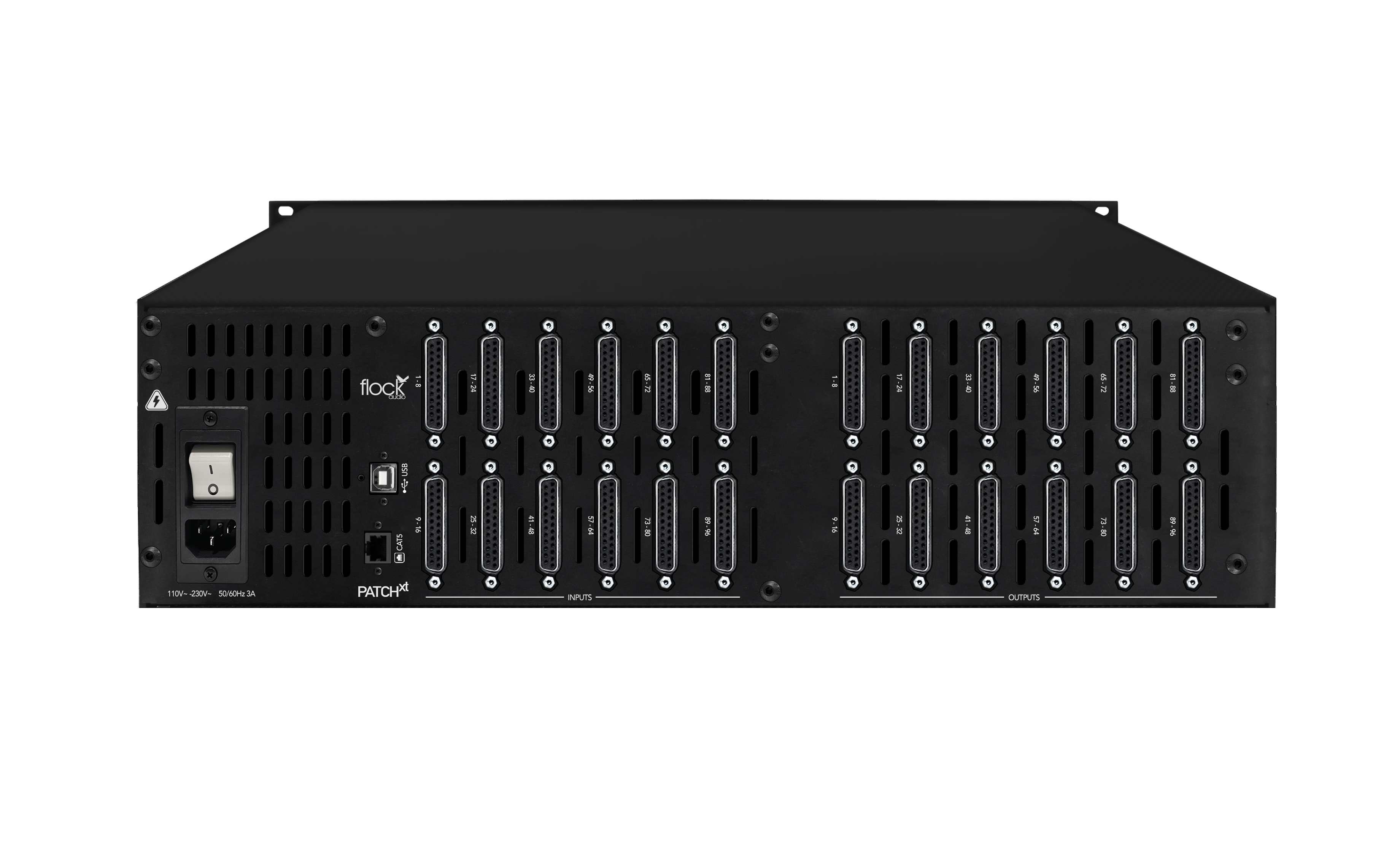

Rear Connectors DB-25/D-SUB female (standard Tascam wiring pinout)
Front-Panel I/O 2x combo TRS/XLR inputs, 2x XLR outputs
Phantom Power 32 independently controllable channels of 48V

Control & Signal Path

Audio Path 100% analog, no AD/DA conversion
Control Software PATCH APP (download)
Supported Platforms OSX 10.7 Lion & newer / Windows 7 & newer
Host Connection USB 2.0 (locking connector); CAT5 Ethernet network host connector option
Sleep/Wake Function Remote on/off control via PATCH APP software
Audio Detection Input analog audio detection
Included Cable 6 ft USB 2.0 cable with threaded securement (Ethernet cable not included)

Physical

Form Factor 3U rackmount, 13" deep
Dimensions 5.25" (H) x 19" (W) x 13" (D)
Weight 26 lbs
Panel Machined anodized panel

Power & Warranty

Power Supply Internal (110V or 220V)
Warranty 1-year total system + included cables manufacturer warranty

Fit and constraints

Studios with large outboard collections that wa… · 32 independently controllable channels of 48V

Intended use

Use Studios with large outboard collections that want console-free, software-recallable analog routing at scale: 96 inputs and 96 outputs (192 patch points) on DB-25 Tascam-pinout connectors, routed from the PATCH APP on macOS or Windows over USB 2.0 or optional CAT5 Ethernet, with 32 assignable channels of 48V phantom power so mics can be patched directly without a separate preamp-side phantom source.
Not for Small setups that a conventional 48- or 96-point TT/bantam patchbay already covers — the XT's 192-point matrix and DB-25-only rear panel mean you must wire (or buy) DB-25 looms for every device; anyone wanting digital conversion, Dante, or DSP in the routing layer (the PATCH XT is purely analog with no AD/DA); and buyers who want hands-on physical patch cables rather than software-controlled routing.

Constraints

Power32 independently controllable channels of 48V
ControlsSources disagree slightly on identifiers and depth: the manufacturer's page lists SKU '...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Flock Audio PATCH XT is a rackmount patchbay with fully analog signal routing controlled through software, enabling you to create, store, and recall signal paths without manual cable changes. It features extensive connectivity for outboard gear, input signal detection, phantom power management, and expansion capability. The system supports multing and remote control functions for professional recording, mixing, and mastering applications.

Seller notes: FLOCK AUDIO PATCH XT — Patchbay. flock audio PATCHxt.
