GENELEC 8020-Surround-Pak — Studio Monitor

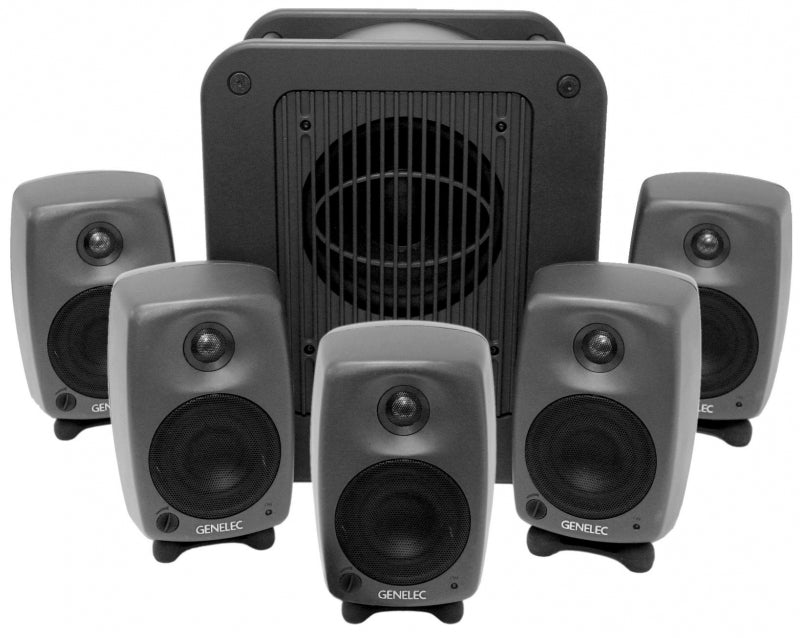

Genelec 8020-Surround-Pak is a pre-configured 5.1 monitoring package consisting of five 8020DPM active monitors and one 7050CPM active subwoofer.
Specifications
System
| Product type | 5.1 active surround monitoring package |
|---|---|
| Included monitors | 5 x Genelec 8020DPM active monitors |
| Included subwoofer | 1 x Genelec 7050CPM active subwoofer |
8020D Monitor
| Frequency response | 56 Hz-25 kHz (-6 dB) |
|---|---|
| Max spl | 100 dB |
| Amplifier power | 50 W bass + 50 W treble, Class D |
| Drivers | 105 mm bass driver and 19 mm treble driver |
| Connection | 1 x XLR analog input |
7050C Subwoofer
| Frequency response | 24 Hz-85 Hz (-6 dB) |
|---|---|
| Max spl | 103 dB |
| Amplifier power | 130 W bass, Class D |
| Driver | 205 mm bass driver |
| Connections | 6 x XLR analog inputs; 5 x XLR analog outputs |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Genelec 8020-Surround-Pak is a pre-configured 5.1 monitoring package consisting of five 8020DPM active monitors and one 7050CPM active subwoofer. Genelec specifies each 8020D as a compact two-way active studio monitor with 100 dB SPL, 56 Hz-25 kHz (-6 dB) frequency response, +/-2.5 dB response accuracy from 62 Hz-20 kHz, 50 W bass plus 50 W treble Class D amplification, 105 mm woofer, 19 mm tweeter, XLR analog input, 242 x 148 x 142 mm dimensions with Iso-Pod and 3.2 kg weight. Genelec specifies the 7050C subwoofer at 103 dB SPL, 24 Hz-85 Hz (-6 dB), 130 W Class D bass amplifier, 205 mm driver, six XLR inputs and five XLR outputs for bass-managed multichannel use.
