GML 8302
GML 8302

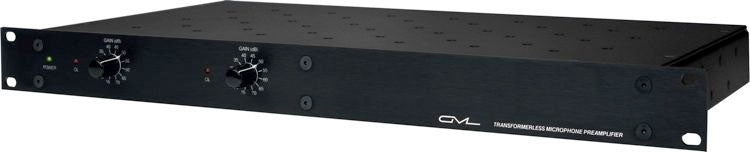

GML 8302 Series II is a two-channel transformerless microphone preamplifier from George Massenburg Labs. The manufacturer states that the 8302 uses all-discrete bipolar transistor circuitry with no FETs, ICs or electrolytic capacitors in the signal path, and direct-coupled outputs with active DC servos.
Specifications
Format
| Product type | Two-channel microphone preamplifier |
|---|---|
| Rack format | 1U rackmount |
| Power supply | Ships with external GML Model 8355 power supply and 5-pin XLR power cable |
Circuit
| Topology | All-discrete bipolar transistor, completely transformerless |
|---|---|
| Signal path | No FETs, ICs or electrolytic capacitors in the signal path |
| Outputs | Direct-coupled outputs with active servo DC correction |
Controls
| Gain | 10 dB to 65 dB in 5 dB steps |
|---|---|
| Phantom power | Switchable 48 V phantom power, 40 mA available |
| Phase reverse | Front-panel phase reverse switches |
| Clip indicator | +24 dBv +/-0.5 dB clip indicator |
Audio Specifications
| Input | 1 kOhm balanced XLR; 80 dB CMRR at 100 Hz and 10 kHz |
|---|---|
| Maximum input | +12.4 dBv before clipping at minimum gain |
| Maximum output | +27.4 dBv clipping, unbalanced XLR pin 2 hot |
| Distortion | Maximum SMPTE IMD 0.0015% at 30 dB gain / 0.007% at 70 dB gain at +20 dBv output |
| Frequency response | +0/-0.2 dB at 10 Hz and 50 kHz; +0/-0.3 dB at 1.7 Hz and 260 kHz |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
GML 8302 Series II is a two-channel transformerless microphone preamplifier from George Massenburg Labs. The manufacturer states that the 8302 uses all-discrete bipolar transistor circuitry with no FETs, ICs or electrolytic capacitors in the signal path, and direct-coupled outputs with active DC servos. Gain is front-panel selectable from 10 dB to 65 dB in 5 dB steps. Series II units add front-panel +48 V phantom power and phase reverse switches and use a redesigned lower-noise phantom supply. The spec sheet lists 1 kOhm balanced XLR input, 80 dB common-mode rejection at 100 Hz and 10 kHz, +12.4 dBv maximum input at minimum gain, +27.4 dBv output clipping, +24 dBv clip indication, 48 V phantom with 40 mA available, 1.75 x 19 x 10 in rack enclosure and external +/-28 V Model 8355 power supply with 5-pin XLR cable.
