Grace Design m108 is an 8-channel microphone preamplifier with integrated A/D conversion and remote-control features.
Specifications
Format
| Product type | 8-channel microphone preamplifier with ADC |
|---|---|
| Rack format | 1U rackmount |
| Channels | 8 microphone preamp channels |
| Gain range | -6 to 69 dB |
Analog I/O
| Mic inputs | 8 XLR microphone inputs |
|---|---|
| Hi z inputs | Front-panel Hi-Z inputs on channels 1 and 2 |
| Analog outputs | 8 balanced analog preamp outputs on DB25, Tascam pinout |
| Analog reference | 0 dBFS = +24 dBu |
Digital and Control
| Digital outputs | AES3 DB25, ADAT Lightpipe with SMUX, USB Class 2; optional Dante |
|---|---|
| Sample rate | A/D conversion up to 192 kHz; ADAT supports 44.1/48 kHz and 88.2/96 kHz SMUX |
| Clocking | Word clock in, through and out; s-Lock PLL |
| Remote control | Ethernet web control, controller app, RS485/RS422 and MIDI control |
Power
| Power supply | Universal AC supply, 90-240 VAC, 50/60 Hz |
|---|---|
| Power rating | 10 W |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

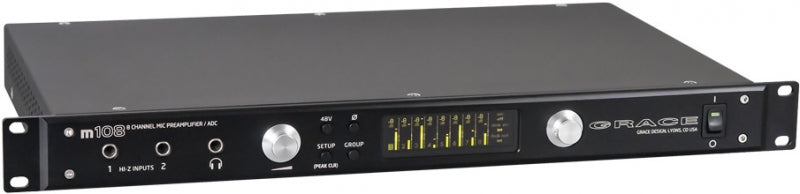

Grace Design m108 is an 8-channel microphone preamplifier with integrated A/D conversion and remote-control features. Grace lists eight balanced analog preamp outputs, transformerless transimpedance mic preamp design, -6 to 69 dB gain range, ribbon mic mode, 192 kHz A/D conversion, AES3, ADAT SMUX and USB Class 2 digital outputs, word clock I/O, Ethernet web control and Mac/Windows control software. The front panel includes Hi-Z inputs on channels 1 and 2, headphone monitoring, OLED display, phantom-power, phase and grouping controls. The rear panel uses DB25 connectors for analog and AES3 outputs, BNC word clock, ADAT optical, USB 2.0, Ethernet, a DB9 serial/MIDI control port and an option slot for Dante or control-room output cards.
