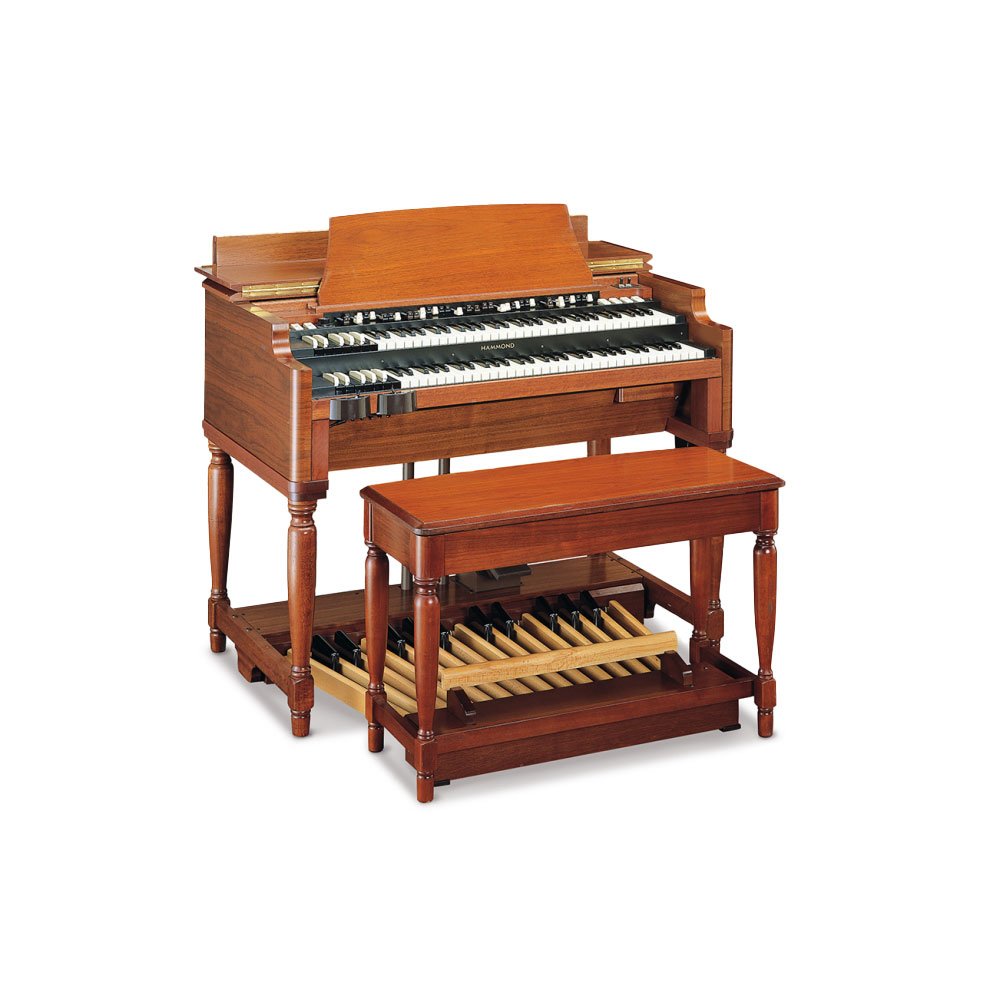

Hammond B-3 mk2 console organ: wooden four-legged console with two 61-key waterfall manuals, reverse-color preset keys, and rows of harmonic drawbars, shown with matching bench and 25-note pedalboard.

HAMMOND B-3 mk2 — Synthesizer

$36,980.00
$36,980.00
Skip to product information
Hammond B-3 mk2 console organ: wooden four-legged console with two 61-key waterfall manuals, reverse-color preset keys, and rows of harmonic drawbars, shown with matching bench and 25-note pedalboard.
  • Hammond B-3 mk2 console organ: wooden four-legged console with two 61-key waterfall manuals, reverse-color preset keys, and rows of harmonic drawbars, shown with matching bench and 25-note pedalboard.
  • HAMMOND B-3 mk2 — Synthesizer
  • HAMMOND B-3 mk2 — Synthesizer
  • Hammond B-3 mk2 console organ: wooden four-legged console with two 61-key waterfall manuals, reverse-color preset keys, and rows of harmonic drawbars, shown with matching bench and 25-note pedalboard.
  • HAMMOND B-3 mk2 — Synthesizer
  • HAMMOND B-3 mk2 — Synthesizer
HAMMOND B-3 mk2 — Synthesizer

HAMMOND B-3 mk2 — Synthesizer

$36,980.00
$36,980.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Organists who want the full classic B-3 console experience — two 61-key waterfall manuals, four sets of real drawbars, 12 preset keys per manual, a 25-note radial pedalboard, and a tube preamp — without the maintenance of a vintage tonewheel…
Requires compatible power and data connections, monitoring or MIDI setup as required
In stock Ask a question

Specifications

Sound Engine

Manual Sound Generator DTW1 Digital Tone-Wheels (Swell and Great)
Pedal Sound Generator VASE III
Tonewheel Pitches All 91 pitches continuously generated
Polyphony (Manuals) Full
Polyphony (Pedal) 8

Keyboards & Controls

Manuals Two 61-key waterfall manuals (Swell and Great), multi-contact for drawbars, direct analog keying
Pedalboard 25-key, radial flat type
Preset Keys 12 keys per manual, mechanical latch
Harmonic Drawbars Four sets of 9-pitch drawbars (2 sets per manual, B-type/Mellow) plus 2 pedal drawbars
Coupler Manual Bass
Combination Presets 5 common banks; 9 Swell presets; 9 Great and Pedal presets (switchable link/independent pedal)
Expression Expression (swell) pedal with foot switch

Effects & Amplification

Internal Leslie Advanced digital, 2 rotors
Vibrato and Chorus Digital scanner; V1, V2, V3, C1, C2, C3; Swell On / Great On; 5 speeds (6.10-7.25 Hz); tremolo, emphasis, depth
Percussion Tablets: On, Harmonic Selector, Decay, Volume; adjustable decay (fast/slow) and level (soft/normal)
Pre-amp Vacuum tubes: 12AU7 for overdrive, 12AX7 for buffer
Equalizer 3 bands and tone control
Reverb 11 programs, with Leslie on Reverb
Sustain 5 lengths (pedal division)

Connectivity & Storage

Connections AC inlet; MIDI Pedal In; MIDI In/Out; Leslie switch (main/echo); effect send/return; Line In L/R; Line Out L/R; Pedal Out; headphones; 11-pin Leslie (main, echo)
MIDI Zones 3 Swell, 3 Great, 3 Pedal
Display 20 characters, 2 lines, with 9 control switches
Storage CompactFlash card slot
Rotary Controllers Master volume, overdrive, bass, treble, reverb

Dimensions & Weight

Dimensions (console only) 123(W) x 73(D) x 97(H) cm / 48"(W) x 29"(D) x 38"(H)
Dimensions (with music rack, bench, pedalboard) 123(W) x 126(D) x 117(H) cm / 48"(W) x 50"(D) x 46"(H)
Weight (console only) 95 kg / 209 lbs
Weight (with music rack, bench, pedalboard) 132 kg / 291 lbs
Included Accessories Pedalboard, bench, music rack, CompactFlash card, Leslie speed switch, AC cable, hexagonal wrench

Fit and constraints

Organists who want the full classic B-3 console…

Intended use

Use Organists who want the full classic B-3 console experience — two 61-key waterfall manuals, four sets of real drawbars, 12 preset keys per manual, a 25-note radial pedalboard, and a tube preamp — without the maintenance of a vintage tonewheel organ. Well suited to church, jazz, gospel, and studio settings where the traditional console format, bench, and pedalboard matter, and where the internal two-rotor digital Leslie or an external 11-pin Leslie cabinet will be used.
Not for Despite the listing's 'Synthesizer' label, this is a drawbar organ, not a synthesizer — skip it if you need synth engines, pianos, or general keyboard sounds. Gigging players who move gear themselves should also skip it: the console alone is 95 kg (209 lbs) and 132 kg (291 lbs) with bench and pedalboard; Hammond's stage keyboards (e.g. the XK series) cover the same tonal territory in portable form. It has no built-in speakers listed, so you will need an amp, Leslie, or PA.

Constraints

ControlsSource conflict on the engine: the Economik listing describes the sound engine as 'VASE...

To use it

Required compatible power and data connections, monitoring or MIDI setup as required

Questions

3 to ask before buying

What firmware, software, storage, and synchronization features are supported by this exact model?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Which power supply, adapters, and included accessories ship with the retailer offer?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Hammond B-3 mk2 is a dual-manual console organ that recreates the original tonewheel B-3 in the digital domain. Its manuals are driven by Hammond's DTW1 digital tone-wheel generator, with all 91 pitches continuously generated, while the pedal division uses the VASE III engine. It has two 61-key waterfall manuals with multi-contact keying, a 25-key radial flat pedalboard, twelve mechanical-latch preset keys per manual, four sets of nine-pitch harmonic drawbars plus two pedal drawbars, digital-scanner vibrato/chorus (V1-C3), touch-response percussion, an internal two-rotor digital Leslie, and a vacuum-tube preamp (12AU7 overdrive, 12AX7 buffer). Connections include stereo line in/out, pedal out, headphones, MIDI in/out plus MIDI pedal in, and an 11-pin Leslie interface; settings are stored on a CompactFlash card. The console ships with a bench, pedalboard, music rack, Leslie speed switch, and accessories, weighing 95 kg for the console alone and 132 kg with bench and pedalboard.
