HAMMOND SKX PRO — Synthesizer
HAMMOND SKX PRO — Synthesizer

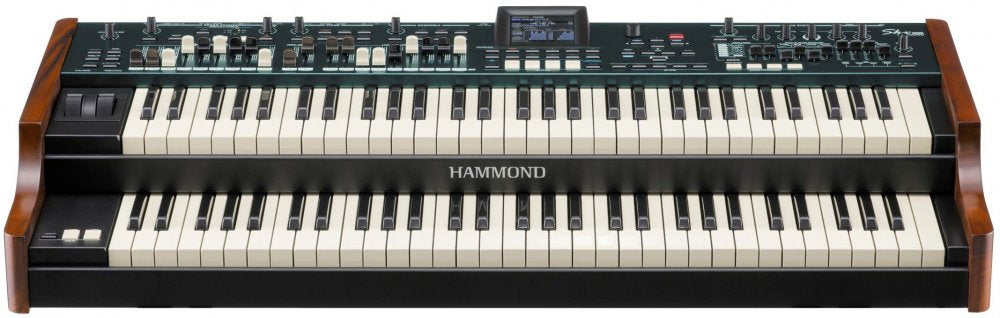

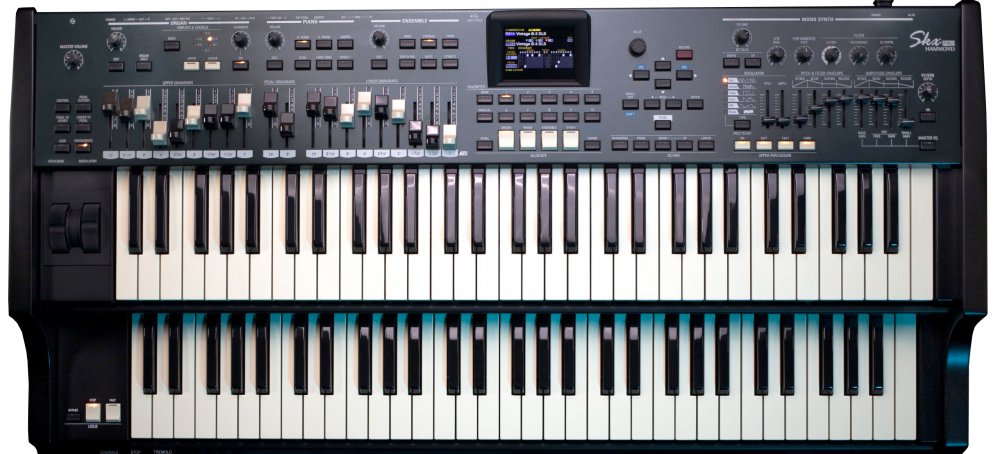

Hammond SKX PRO is a dual-manual stage keyboard/organ with two 61-note velocity-sensitive semi-weighted waterfall-style manuals.
Specifications
Keyboard and Engines
| Keyboard | Dual 61-note C1-C6 velocity-sensitive semi-weighted square-front waterfall-style manuals |
|---|---|
| Organ engine | MTW1 Modelled Tone Wheel I, 61-note tone-wheel organ polyphony |
| Piano ensemble engine | Sampling sound engine, 128-note polyphony |

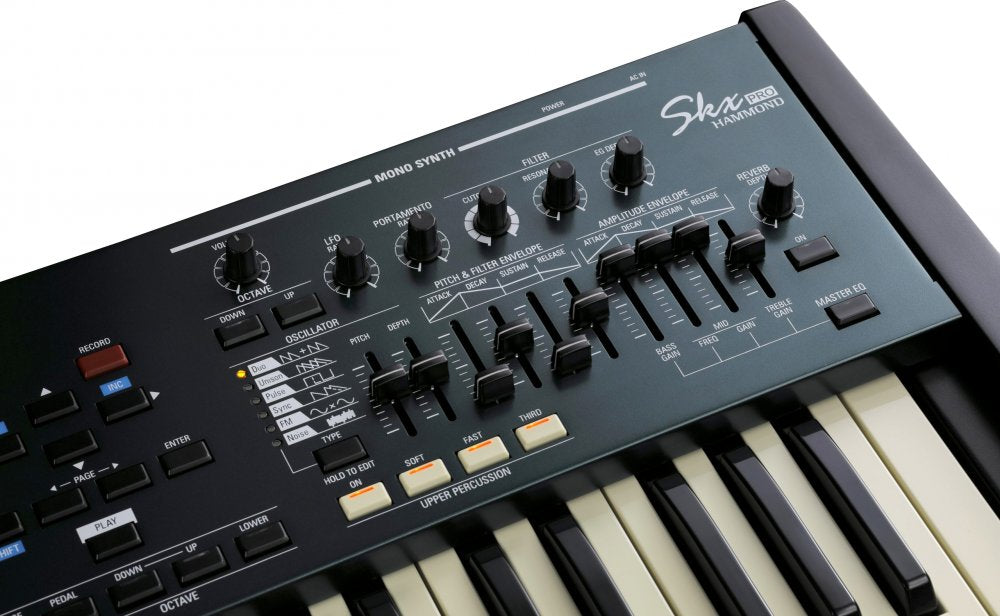

| Mono synth engine | Monophonic analog-modeling synthesizer |
Organ Section
| Parts | Upper, Lower and Pedal |
|---|---|

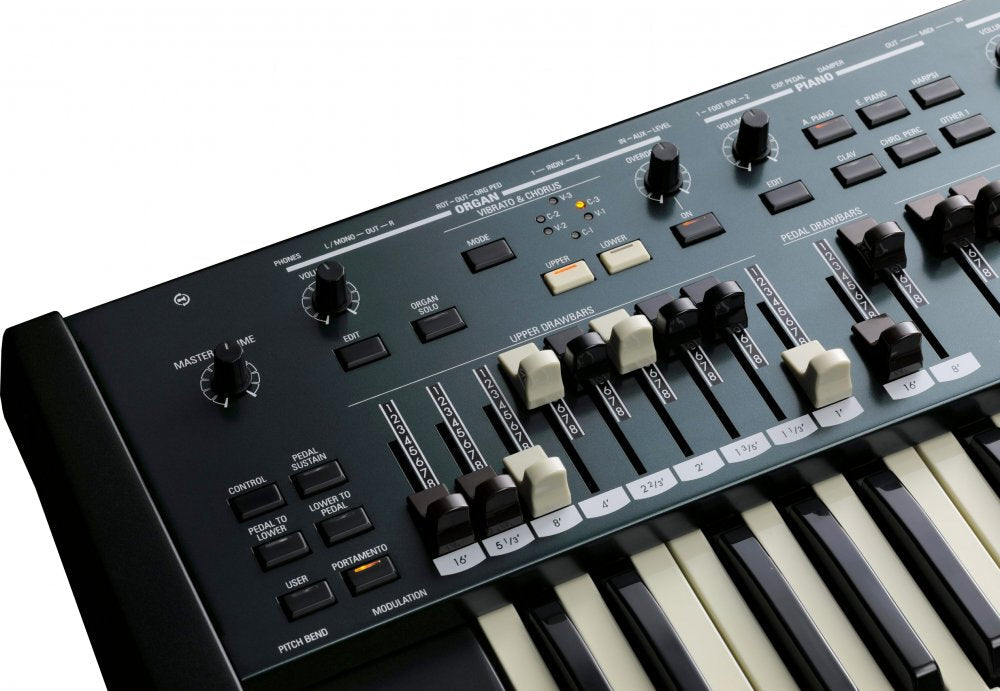

| Drawbars | 3 sets: upper and lower 9 pitches; pedal 2 pitches |
| Voicings | Upper/lower: A-100, B-3, C-3, Mellow, Vx, Farf, Ace, Pipe; pedal: Normal, Muted, Pipe |
| Percussion | On, Volume Soft, Decay Fast and Third Harmonic buttons |
Effects and Control
| Effects | Organ vibrato/chorus, multi-effects, overdrive, matching transformer, Leslie, EQ/tone control and master reverb |
|---|---|
| Zones | Internal transpose/octave/split functions and 3 external zones assignable to each keyboard |
| Controllers | Pitch bend wheel, modulation wheel, portamento and Leslie bypass/stop/fast controls |
| Display | 320 x 240 pixel tilted display |
Memory and Connections
| Memory | 100 user combinations, 100 user organ patches, 400 user piano/ensemble patches, 100 user mono synth patches and USB flash storage |
|---|---|

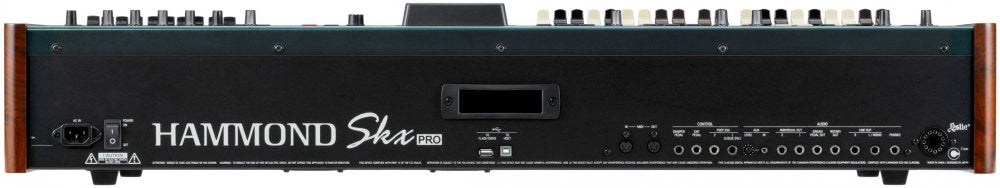

| Audio outputs | Line Out L/R, headphones, Individual 1/2, Rotary Out, Organ Pedal Out and Aux In with volume control |
| Midi usb | MIDI In/Out and USB to Host |
| Leslie | 11-pin Leslie connector with 1- and 3-channel availability |
| Power consumption | 22 W |
Fit and constraints
Intended use
Constraints
To use it
Questions
What firmware, software, storage, and synchronization features are supported by this exact model?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Which power supply, adapters, and included accessories ship with the retailer offer?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Hammond SKX PRO is a dual-manual stage keyboard/organ with two 61-note velocity-sensitive semi-weighted waterfall-style manuals. Hammond specifies three main sound engines: MTW1 modeled tone-wheel organ with 61-note organ polyphony, a sampling piano/ensemble engine with 128-note polyphony, and a monophonic analog-modeling synth. The organ section has upper, lower and pedal parts, three drawbar sets, eight upper/lower organ voicings and three pedal voicings, plus percussion, vibrato/chorus, overdrive, Leslie, matching transformer, EQ and reverb effects. The SKX PRO also provides internal split and allocation functions, three external MIDI zones assignable to each keyboard, 100 user combinations, 400 user piano/ensemble patches and USB flash storage. Connections include MIDI in/out, USB to host, stereo line outputs, headphones, individual outputs 1/2, rotary out, organ pedal out, aux in, 11-pin Leslie and pedal/controller jacks. Manufacturer specs list 39.5 x 19 x 7.2 inches and 37.25 lb.
