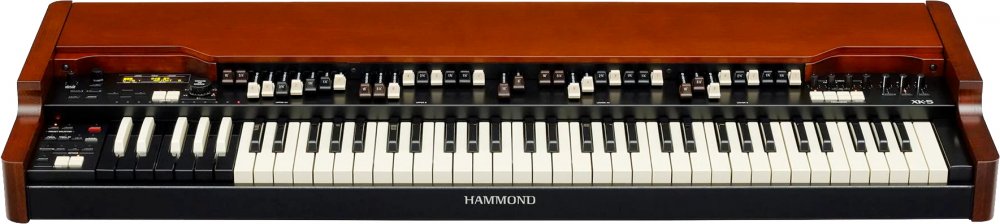

Hammond XK-5 is a single-manual drawbar organ designed around Hammond's MTW modeled tone-wheel engine and Virtual Multi-Contacts keyboard system.
Specifications
Keyboard and Organ Engine
| Manuals | Upper and lower organ architecture: 73 notes each, 61 playing keys plus 12 preset keys |
|---|---|
| Keybed | Square-front waterfall-style mechanical key-bed |
| Tone generator | MTW modeled tone wheels, Farf, VX and Pipe Organ |
| Polyphony | 61-note polyphony for manuals; 5-note polyphony for pedals |
Drawbars and Tone Shaping
| Virtual multi contacts | 3 physical contacts and 9 assignable virtual contacts with adjustable attack, release and decay |
|---|---|
| Drawbars | 5 sets: four manual drawbar sets and one pedal set |
| Drawbar voicings | Manuals: A-100, B-3, C-3, Mellow; pedals: Normal, Muted, Synth 1 and Synth 2 |
| Tube preamp | 12AU7/12AX7 tubes with adjustable routing and drive level |
| Matching transformer | MT Matching Transformer with adjustable drive, hysteresis and upper/lower/percussion levels |
Effects and Performance

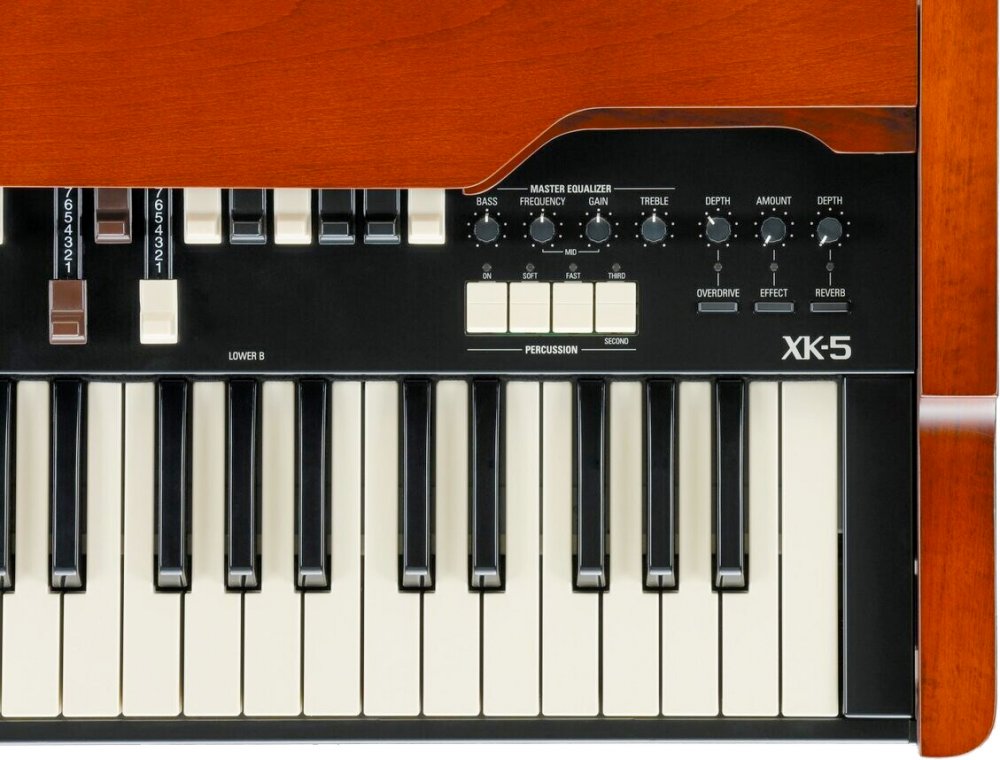

| Percussion | Touch-Response Percussion with normal/soft volume, slow/fast decay, 2nd/3rd harmonic and adjustable parameters |
|---|---|
| Vibrato chorus | Virtual Scanner with 3 settings and adjustable rate and mix |
| Overdrive | Tube/Solid State overdrive with adjustable drive |

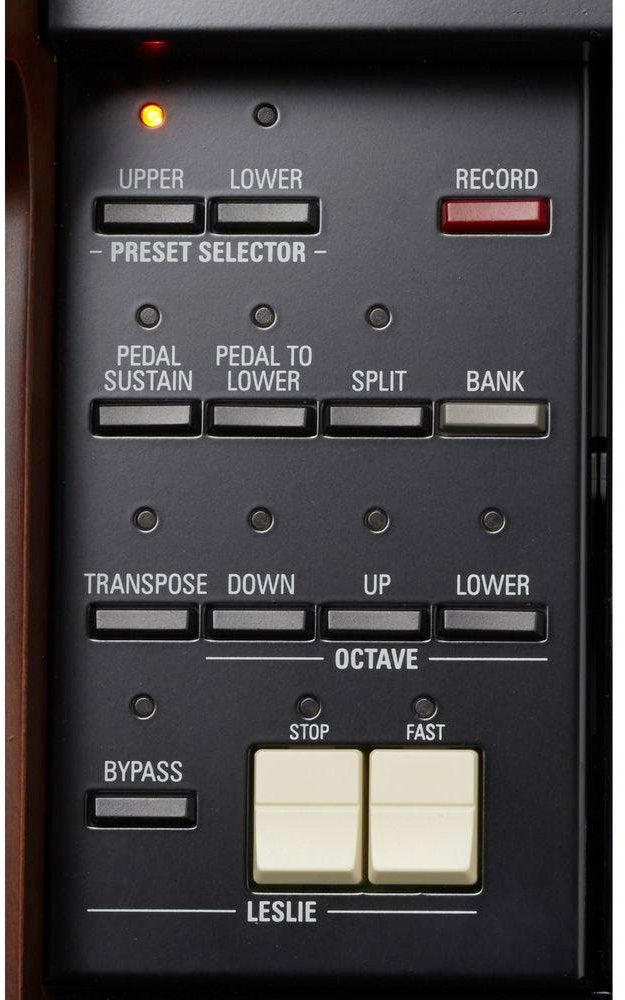

| Leslie | Leslie stop/fast/bypass controls, 8 preset and 8 user custom cabinets |
| Reverb | 11 programs with Leslie-on-reverb option |
Connectivity
| Midi | MIDI In 1, In 2 and Out; 5 MIDI templates and 6 external zones |
|---|---|
| Usb | USB A to flash drive and USB B to host |
| Audio | Line Out L/Mono and R plus headphone jack |
| Leslie connector | 11-pin Leslie connector |
| Other connections | Control 1, Control 2, 8-pin DIN EXP-100F expression pedal and AC input |
Fit and constraints
Intended use
Constraints
To use it
Questions
What firmware, software, storage, and synchronization features are supported by this exact model?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Which power supply, adapters, and included accessories ship with the retailer offer?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Hammond XK-5 is a single-manual drawbar organ designed around Hammond's MTW modeled tone-wheel engine and Virtual Multi-Contacts keyboard system. Hammond's specs describe upper and lower manuals as 73 notes each in organ architecture, made up of 61 playing keys plus 12 preset keys, with square-front waterfall-style keys and a new mechanical key-bed. The tone generator provides MTW, Farf, VX and Pipe organ modes, 61-note manual polyphony and 5-note pedal polyphony. The XK-5 includes five drawbar sets, four manual drawbar voicings, tube preamp using 12AU7/12AX7 tubes, matching transformer modeling, touch-response percussion, vibrato/chorus, tube/solid-state overdrive, Leslie simulation, reverb, MIDI templates and six external zones. Connections include MIDI In 1/In 2/Out, USB A and B, stereo line outputs, headphone jack, 11-pin Leslie, control jacks, expression pedal DIN and AC input. Manufacturer specs list 46.8 x 15.8 x 4.7 inches and 34.6 lb.
