Specifications
Drivers
| Woofers | 12 x 6.5" per speaker (Kii THREE + BXT combined) |
|---|---|
| Midrange | 1 x 5" |
| Tweeter | 1 x 1" custom waveguided |
| BXT driver layout | Eight 17 cm bass drivers per BXT module: four forward-facing, two on each side panel |
Amplification
| Total power per speaker | 3,500 W per speaker (manufacturer rating) |
|---|---|
| BXT module amplification | 8 x 250 W (2,000 W per BXT module) |
Frequency Response
| Low-frequency extension | -3 dB at 20 Hz |
|---|---|
| Response accuracy (100 Hz - 10 kHz) | +/-0.5 dB |
| Response accuracy (10 kHz - 20 kHz) | +/-1 dB |
| Controlled directivity | 4.8 dB (54 Hz - 1 kHz, slowly rising thereafter) |
DSP & Acoustic Design
| Crossover | Active Wave Focusing DSP crossover filter |
|---|---|
| Dispersion | Cardioid, to minimize room interaction |
| Phase/latency modes | Selectable linear phase or minimum latency |
| Boundary/placement correction | Selectable correction for free-standing, near-wall, or in-corner placement (14 positions) |
| Line-source design | Line-source vertical dispersion control for low/mid frequencies |
Connectivity
| Audio inputs | Analog, AES/EBU, KiiLink |
|---|---|
| Inputs via Kii CONTROL | USB, SPDIF (coax), TOSLINK (optical) |
| USB audio formats | Up to PCM 24-bit/384 kHz and DSD 64/128 |
Physical
| Dimensions per speaker (W x H x D) | 200 x 1200 x 400 mm (8" x 47" x 16") |
|---|---|
| Weight per speaker | 51 kg (112 lbs) per speaker |
System Contents & Finish
| Included units | 2 x Kii THREE speakers, 2 x BXT modules, Kii CONTROL interface |
|---|---|
| Control interface | Kii CONTROL with full-color OLED display and touch input |
| Premium color options (per retailer) | Azzurro High Gloss, Ferrari Rosso Corsa, Iced Bronze Metallic, Nardo Grey High Gloss, Iced Green Metallic, Iced Sapphire Metallic, Iced Titanium Metallic, Tempranillo Red High Gloss, Phoenix Orange High Gloss Metallic, Spring Green High Gloss, Graphite Satin Metallic |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

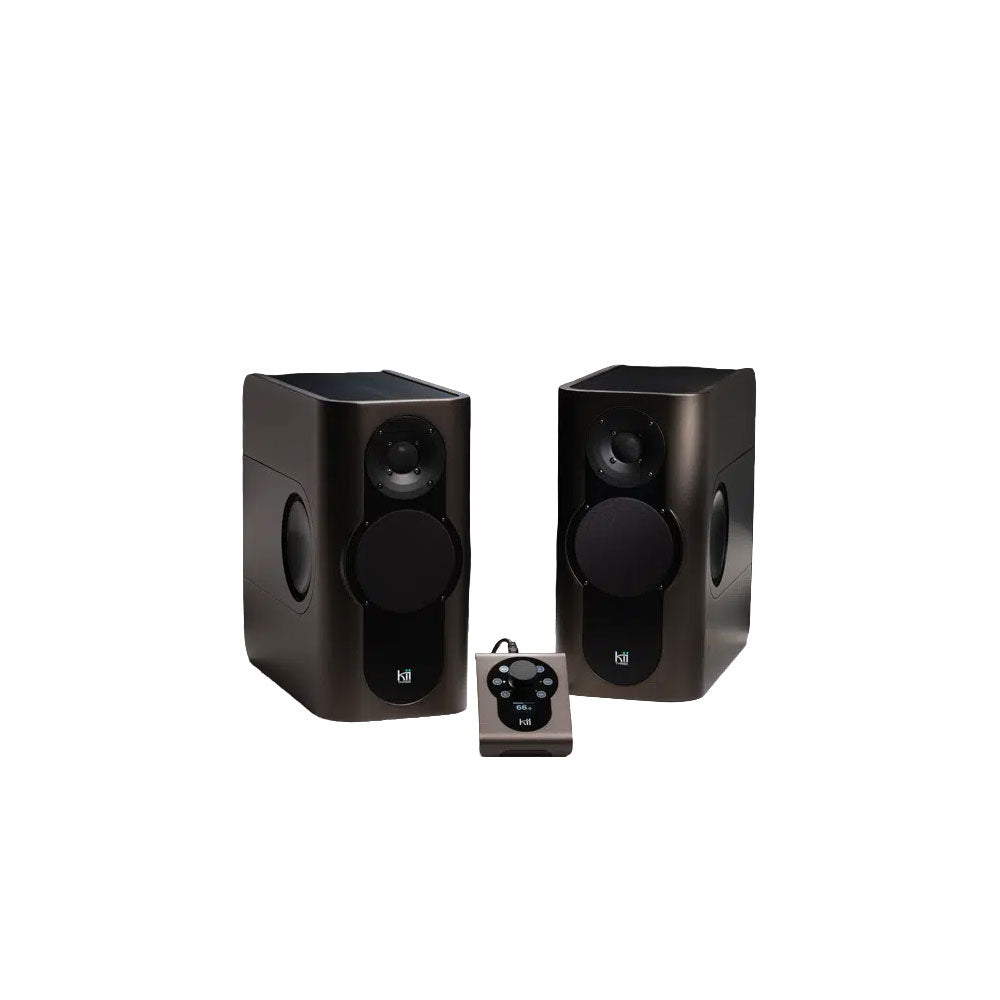

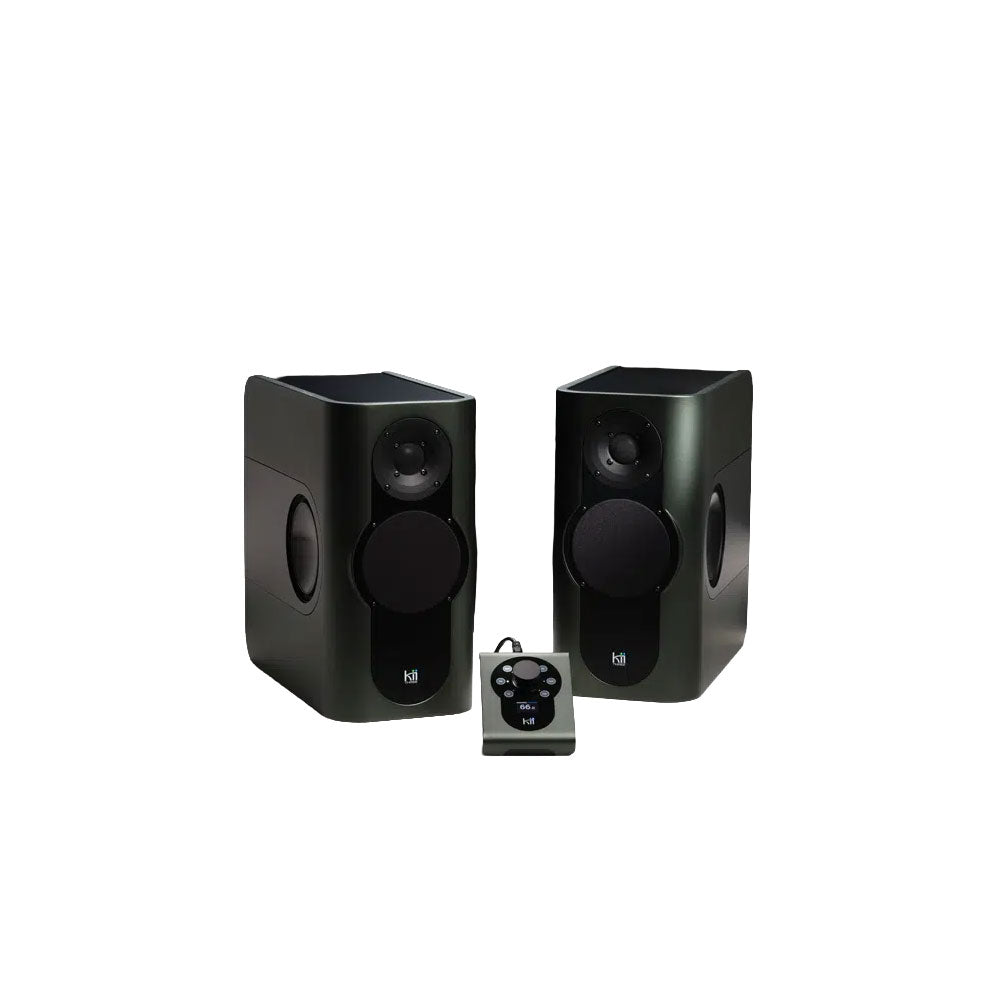

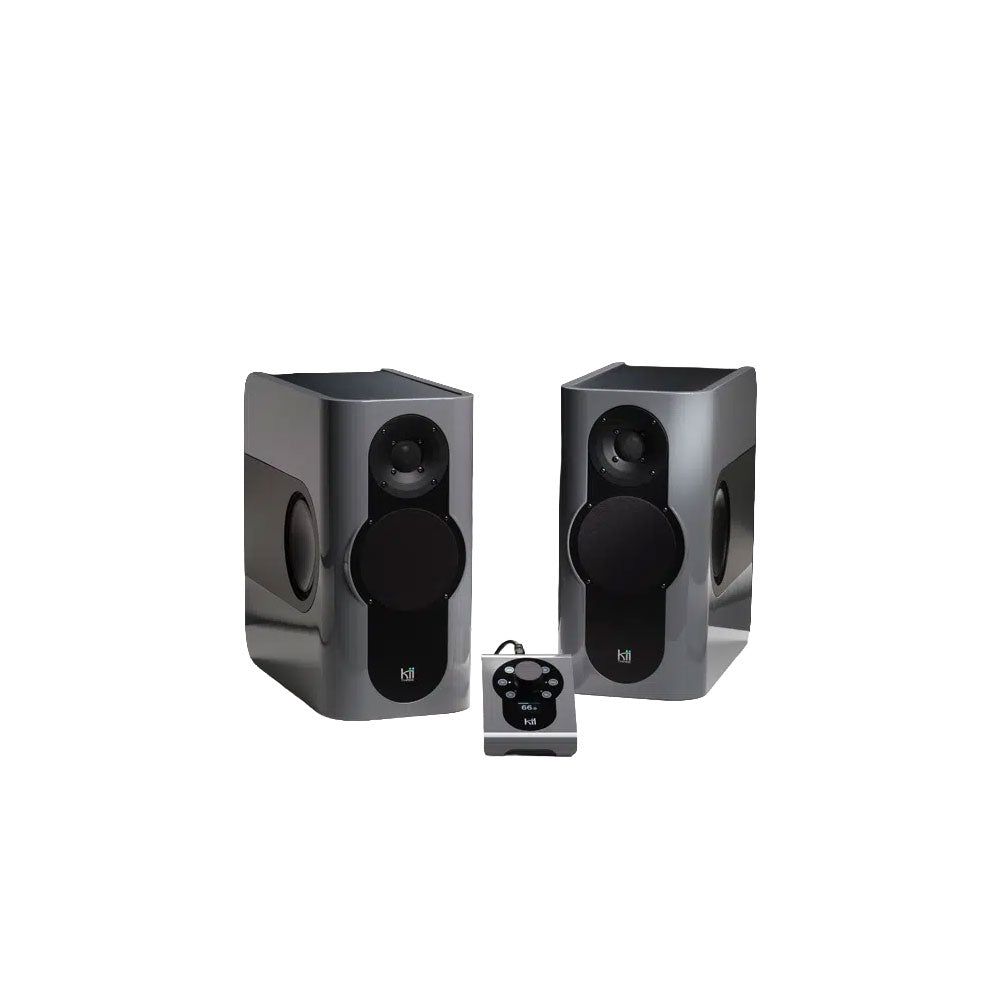

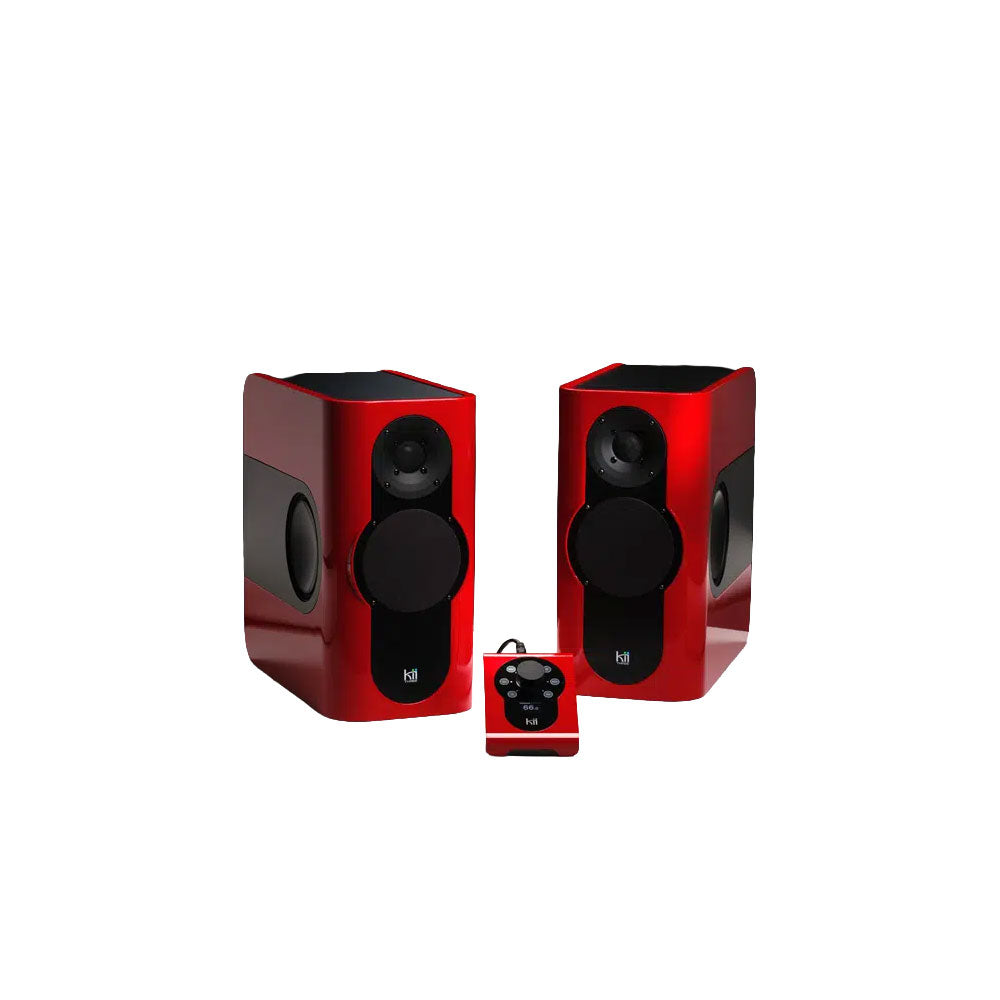

The Kii THREE BXT System Pro is a full-range, DSP-controlled active floorstanding loudspeaker system consisting of two Kii THREE three-way monitors, two BXT bass-extension modules, and the Kii CONTROL interface. Each speaker-plus-BXT tower carries 12 x 6.5-inch woofers, a 5-inch midrange, and a 1-inch waveguided tweeter driven by Class D amplification, with the manufacturer rating each side at 3,500 watts. The system uses Active Wave Focusing DSP crossover filtering and cardioid dispersion, with controlled directivity from 54 Hz to 1 kHz and a line-source woofer array that manages vertical dispersion of low and mid frequencies. Frequency response is -3 dB at 20 Hz, with +/-0.5 dB accuracy from 100 Hz to 10 kHz and +/-1 dB from 10 kHz to 20 kHz, and boundary correction offers 14 selectable placement settings. Inputs are analog, AES/EBU, and KiiLink, with USB, SPDIF, and TOSLINK added via the Kii CONTROL; this Premium Colors edition is offered in a range of high-gloss and metallic finishes.
