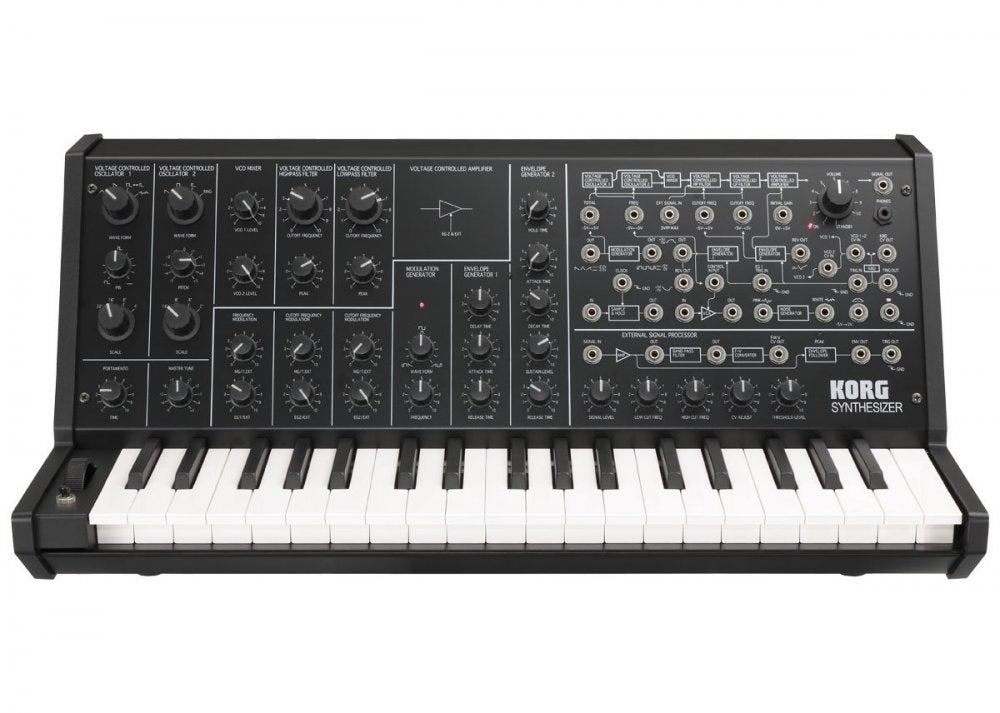

Black keyboard synthesizer with multiple knobs and patch cable jacks labeled KORG synthesizer.

KORG MS-20-Mini — Synthesizer

$1,049.99
$1,049.99
Skip to product information
Black keyboard synthesizer with multiple knobs and patch cable jacks labeled KORG synthesizer.
  • Black keyboard synthesizer with multiple knobs and patch cable jacks labeled KORG synthesizer.
  • Black keyboard synthesizer with multiple knobs and patch cable jacks labeled KORG synthesizer.
KORG MS-20-Mini — Synthesizer

KORG MS-20-Mini — Synthesizer

The Korg MS-20 mini is a 5/8-scale reissue of the 1978 MS-20, a monophonic analog semi-modular synthesizer. It reproduces the original's dual-VCO architecture, resonant high-pass and low-pass filters, two envelope generators, and a modulation generator, all exposed on a patch panel for modular-style routing.

$1,049.99
$1,049.99
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use We stock this for players who want the classic MS-20 sound and patch-cable workflow in a compact, affordable reissue.
Requires compatible power and data connections, monitoring or MIDI setup as required
In stock Ask a question

Specifications

Monophonic analog synthesizer (semi-modular) · DC 9V, 9W (AC adaptor 9V/1.7A included)

Identity

Mpn MS20MINI
Gtin 4959112094529

General

Type Monophonic analog synthesizer (semi-modular)
Keyboard 37 mini keys, C–C, 3 octaves

Oscillators & Filters

Vco1 32'/16'/8'/4'; Triangle/Sawtooth/PW-Square/Noise
Vco2 16'/8'/4'/2'; Sawtooth/Square/Pulse/Ring mod
Hpf cutoff 50 Hz – 15 kHz
Lpf cutoff 50 Hz – 15 kHz
Lfo 0.1 Hz – 20 Hz

I/O

Audio out Mono 1/8" mini phone jack, 2 Vp-p, 3.5 kΩ
Headphones Stereo 1/8" mini phone jack, 33 Ω, 48 mW
Usb Type B, USB-MIDI I/O (note messages only; no velocity)
Midi MIDI In (note messages only; no velocity)

Power & Physical

Power DC 9V, 9W (AC adaptor 9V/1.7A included)
Dimensions 493 × 257 × 208 mm (19.41 × 10.12 × 8.19 in)
Weight 4.8 kg (10.58 lbs)
Accessories AC adaptor, 10 patch cords

Fit and constraints

We stock this for players who want the classic … · DC 9V, 9W (AC adaptor 9V/1.7A included)

Intended use

Use We stock this for players who want the classic MS-20 sound and patch-cable workflow in a compact, affordable reissue. It's a strong pick for learning subtractive/semi-modular synthesis, aggressive analog bass and leads, and processing external audio through its filter and envelope follower.
Not for Skip it if you need polyphony, velocity-sensitive keys, full-size keys, or modern MIDI (no velocity/CC over USB-MIDI). It's not a do-everything workstation.

Constraints

PowerDC 9V, 9W (AC adaptor 9V/1.7A included)
ControlsUSB-MIDI and MIDI In transmit note messages only — velocity is not supported. Outputs a...

To use it

Required compatible power and data connections, monitoring or MIDI setup as required

Questions

3 to ask before buying

What firmware, software, storage, and synchronization features are supported by this exact model?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Which power supply, adapters, and included accessories ship with the retailer offer?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Korg MS-20 mini is a 5/8-scale reissue of the 1978 MS-20, a monophonic analog semi-modular synthesizer. It reproduces the original's dual-VCO architecture, resonant high-pass and low-pass filters, two envelope generators, and a modulation generator, all exposed on a patch panel for modular-style routing. The 37-note mini keyboard spans three octaves (C–C). Connectivity includes USB-MIDI (Type B) and MIDI In for note data, a mono 1/8" audio output, and a headphone jack. An external signal processor lets the filter and envelope track external audio. It ships with an AC adaptor and ten patch cables.
