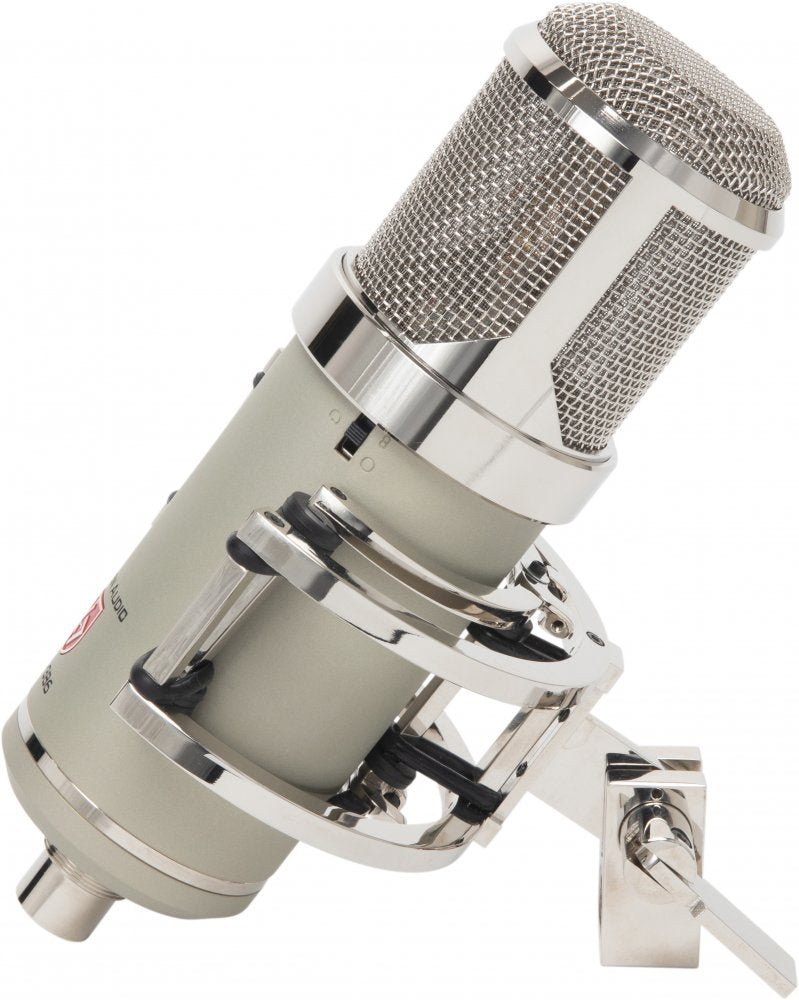

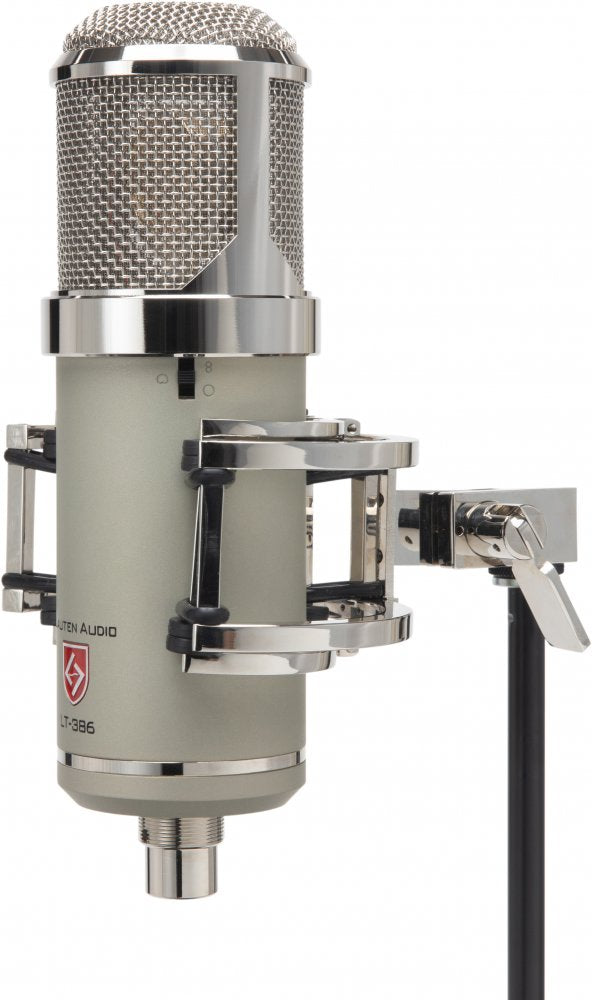

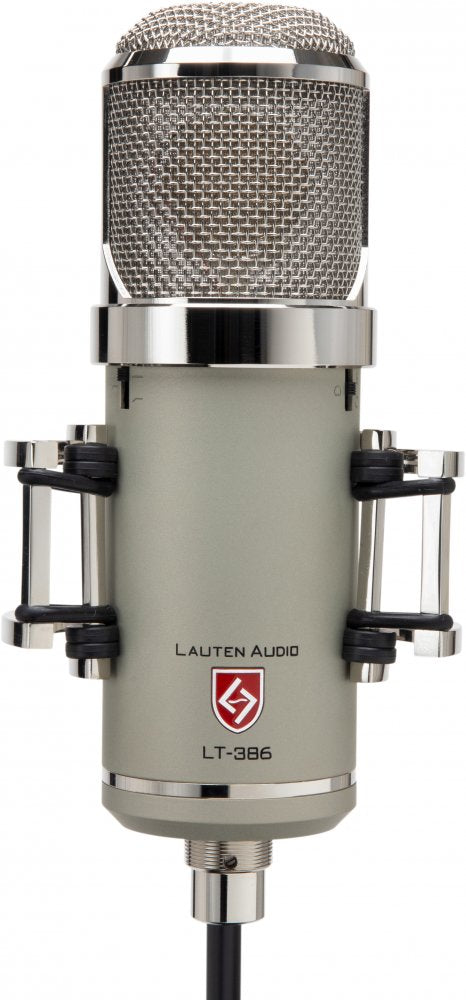

LAUTEN AUDIO Eden LT-386 — Microphone
LAUTEN AUDIO Eden LT-386 — Microphone
Lauten Audio Eden LT-386 is a large-diaphragm pressure-gradient tube condenser microphone. Lauten specifies a 38 mm dual-diaphragm capsule, EF806s tube, custom-wound U.S.-made output transformer and three selectable polar patterns: cardioid, omnidirectional and figure-8.
Specifications
Microphone Format
| Product type | Large-diaphragm tube condenser microphone |
|---|---|
| Capsule | 38 mm dual-diaphragm capsule |
| Tube | EF806s tube |
| Transformer | Custom-wound U.S.-made output transformer |
Patterns and Voicing
| Polar patterns | Cardioid, omnidirectional and figure-8 |
|---|---|
| Multi voicing | Forward, Neutral and Gentle analog circuit paths |
| High pass | Flat, Mid and Max high-pass settings placed after the tube and before Multi-Voicing/transformer sections |
Audio Specifications
| Frequency response | 20 Hz to 20 kHz |
|---|---|
| Dynamic range | 120 dB minimum |
| Max spl | 130 dB at 0.5% THD, 1000 Hz |
| Impedance | <200 ohms |
| Self noise | <12 dB(A) |
| Sensitivity | 16 mV/Pa or -36 +/-2 dB re 1 V/Pa at 1 kHz |
Power and Included Items
| Connectors | 5-pin XLR from PSU to microphone; 3-pin XLR from PSU to preamp |
|---|---|
| Power supply | Custom power supply, 100 V to 240 V compatible |

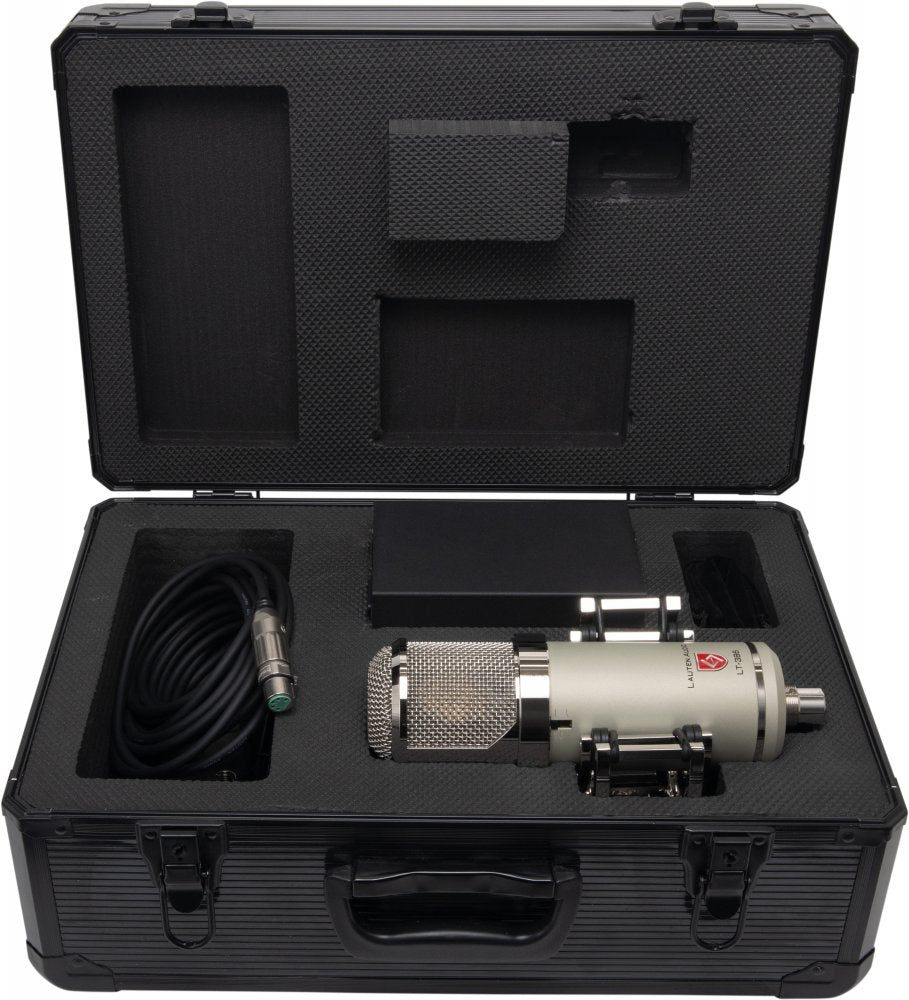

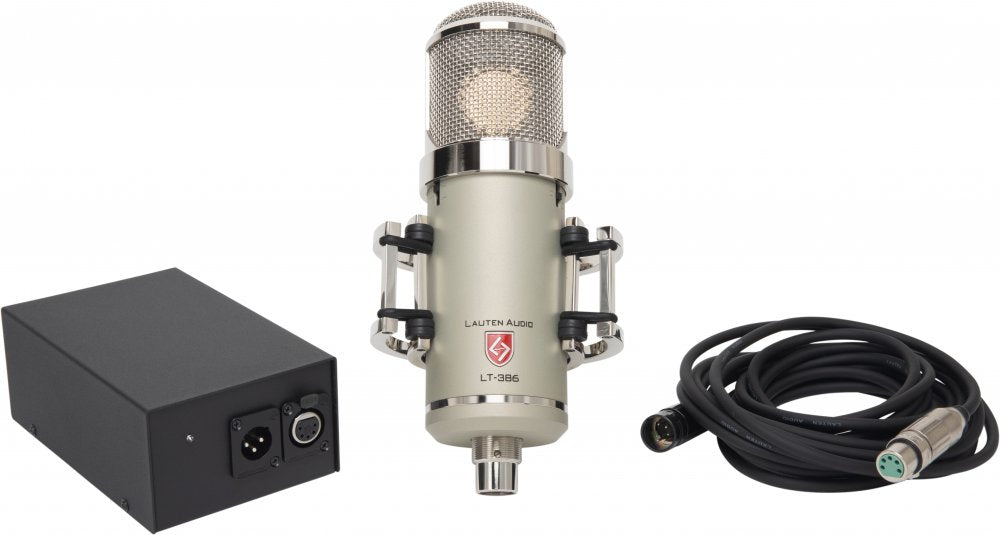

| Included accessories | Rugged flight case, power supply, 5-pin cable and suspension mount |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Lauten Audio Eden LT-386 is a large-diaphragm pressure-gradient tube condenser microphone. Lauten specifies a 38 mm dual-diaphragm capsule, EF806s tube, custom-wound U.S.-made output transformer and three selectable polar patterns: cardioid, omnidirectional and figure-8. Its Multi-Voicing switch selects Forward, Neutral or Gentle analog circuit paths, and a three-position high-pass switch is placed after the tube and before the Multi-Voicing and transformer sections. Published specifications list 20 Hz-20 kHz frequency response, at least 120 dB dynamic range, 130 dB max SPL at 0.5% THD/1 kHz, output impedance below 200 ohms, self-noise below 12 dB(A) and sensitivity of 16 mV/Pa, also listed as -36 +/-2 dB re 1 V/Pa at 1 kHz. The microphone uses 5-pin XLR from PSU to microphone and 3-pin XLR from PSU to preamp, includes flight case, power supply, cable and suspension mount, and has Cerakote/nickel finish. .
