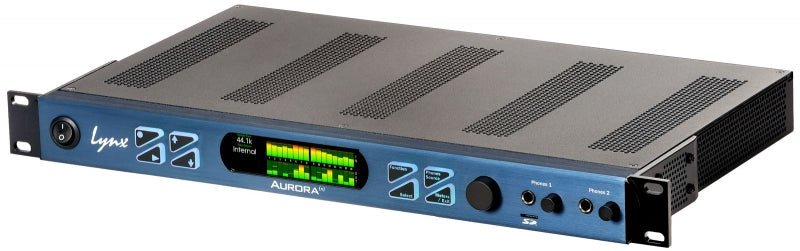

Black and blue audio converter with front panel display, buttons, headphone jacks, and rotary knob in a rackmount case.

LYNX STUDIO TECHNOLOGY Aurora (n) 16 USB — Converter

$5,745.00
$5,745.00
Skip to product information
Black and blue audio converter with front panel display, buttons, headphone jacks, and rotary knob in a rackmount case.
  • Black and blue audio converter with front panel display, buttons, headphone jacks, and rotary knob in a rackmount case.
  • LYNX STUDIO TECHNOLOGY Aurora (n) 16 USB — Converter
  • Black and blue audio converter with front panel display, buttons, headphone jacks, and rotary knob in a rackmount case.
  • LYNX STUDIO TECHNOLOGY Aurora (n) 16 USB — Converter
LYNX STUDIO TECHNOLOGY Aurora (n) 16 USB — Converter

LYNX STUDIO TECHNOLOGY Aurora (n) 16 USB — Converter

Lynx Studio Technology Aurora (n) 16 USB is a 1U modular audio converter/interface with 16 channels of 24-bit/192 kHz A/D and D/A conversion and a pre-installed USB LSlot card.

$5,745.00
$5,745.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios needing a high-quality 16-channel USB converter/interface with modular expansion, stable word clock and onboard recording/routing tools.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Format

Channel count 16 channels of A/D and D/A conversion
Rack format 1U rackmount
Sample rate bit depth 24-bit / 192 kHz conversion
Computer connection USB LSlot card; USB has a maximum of 16 channels

Conversion Performance

Ad dynamic range 119 dB A-weighted
Ad thd n -113 dB at 1 kHz, -1 dBFS, 20 kHz filter, +20 dBu trim
Ad frequency response +/-0.010 dB, 20 Hz to 20 kHz
Da dynamic range 120 dB A-weighted
Da thd n -108 dB at 1 kHz, -1 dBFS, 20 kHz filter, +20 dBu trim
Da frequency response +/-0.025 dB, 20 Hz to 20 kHz
Crosstalk -130 dB maximum at 1 kHz, -1 dBFS signal
Trim settings +6 dBV or +20 dBu full-scale trim settings

Clocking and Features

Word clock 1 input and 3 outputs on BNC with SynchroLock 2; 300,000:1 jitter reduction and 5-second lock time
Onboard recorder 32-channel microSD recorder for direct recording and playback
Headphone outputs Two headphone outputs with independent volume controls
Mixer Onboard 32-channel digital mixer/routing
Expansion Swappable LSlot cards for USB, Thunderbolt, Pro Tools|HD and Dante; expandable analog modules in groups of 8 channels up to 32

Fit and constraints

Studios needing a high-quality 16-channel USB c…

Intended use

Use Studios needing a high-quality 16-channel USB converter/interface with modular expansion, stable word clock and onboard recording/routing tools.
Not for Users needing more than 16 USB channels, built-in mic preamps without adding modules, or Dante/Thunderbolt/Pro Tools connectivity without swapping the LSlot card.

Constraints

ControlsThe reviewed manufacturer page covers the Aurora (n) family; MPN for the USB 16-channel...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

LYNX STUDIO TECHNOLOGY Aurora (n) 16 USB — Converter. lynx AURORA+.
