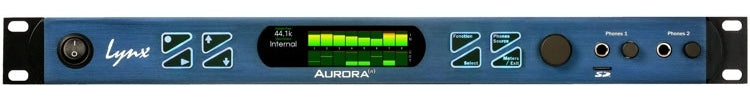

Lynx Studio Technology Aurora(n) 8 USB 8-channel AD/DA converter, with two front-panel 1/4-inch headphone outputs, microSD recording slot, and DB25 analog I/O plus BNC word clock connections on the rear

LYNX STUDIO TECHNOLOGY Aurora (n) 8 USB — Converter

$3,795.00
$3,795.00
Skip to product information
Lynx Studio Technology Aurora(n) 8 USB 8-channel AD/DA converter, with two front-panel 1/4-inch headphone outputs, microSD recording slot, and DB25 analog I/O plus BNC word clock connections on the rear
  • Lynx Studio Technology Aurora(n) 8 USB 8-channel AD/DA converter, with two front-panel 1/4-inch headphone outputs, microSD recording slot, and DB25 analog I/O plus BNC word clock connections on the rear
  • LYNX STUDIO TECHNOLOGY Aurora (n) 8 USB — Converter
  • Lynx Studio Technology Aurora(n) 8 USB 8-channel AD/DA converter, with two front-panel 1/4-inch headphone outputs, microSD recording slot, and DB25 analog I/O plus BNC word clock connections on the rear
  • LYNX STUDIO TECHNOLOGY Aurora (n) 8 USB — Converter
LYNX STUDIO TECHNOLOGY Aurora (n) 8 USB — Converter

LYNX STUDIO TECHNOLOGY Aurora (n) 8 USB — Converter

The Lynx Studio Technology Aurora(n) 8 USB (MPN LYN-AN08-USB) is an 8-channel, 24-bit mastering-grade AD/DA converter with a Lynx LT-USB (USB 2.0) LSlot interface card preinstalled.

$3,795.00
$3,795.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Mastering and critical-listening studios that need verified converter performance on paper: 119/120 dB A-weighted dynamic range (in/out), -113/-108 dB THD+N, and ±0.010 dB input frequency response 20 Hz - 20 kHz.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Conversion & Clocking

Bit depth 24

Measured Performance

Line input dynamic range 119
Line output dynamic range 120

Fit and constraints

Mastering and critical-listening studios that n…

Intended use

Use Mastering and critical-listening studios that need verified converter performance on paper: 119/120 dB A-weighted dynamic range (in/out), -113/-108 dB THD+N, and ±0.010 dB input frequency response 20 Hz - 20 kHz. Ideal if your patchbay or console is already wired for DB25 looms, if you want 8 pristine line-level channels over plain USB 2.0 (no PCIe or Thunderbolt card needed), or if you value the built-in microSD recorder as a computer-free capture/playback path for up to 32 channels of broadcast WAV.
Not for Anyone needing more than 8 channels of analog conversion in one box, or more than 8 channels over USB at 192 kHz (the LT-USB card drops from 16 in/16 out at 96 kHz to 8 channels at 192 kHz). Also skip if you want front-panel XLR/TRS analog connections out of the box - all 8 ins and 8 outs are on DB25, so there is no direct plug-in path for individual jacks without DB25 breakout cabling.

Constraints

ControlsDB25 analog I/O means budgeting for breakout cables or looms if your studio is not alre...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Lynx Studio Technology Aurora(n) 8 USB (MPN LYN-AN08-USB) is an 8-channel, 24-bit mastering-grade AD/DA converter with a Lynx LT-USB (USB 2.0) LSlot interface card preinstalled. It converts 8 analog inputs and 8 analog outputs on DB25 connectors at all standard sample rates from 44.1 kHz to 192 kHz, clocked by Lynx's SynchroLock-2 sample clock generator with internal clock or external word clock sync (BNC, 75-ohm; 1 input / 3 outputs). Measured performance: 119 dB A-weighted dynamic range on the line inputs and 120 dB on the line outputs, THD+N of -113 dB (input) and -108 dB (output) at 1 kHz, frequency response within ±0.010 dB (input) / ±0.025 dB (output) from 20 Hz to 20 kHz, and -130 dB maximum adjacent-channel crosstalk. Full-scale trim is software-selectable between +6 dBV and +20 dBu. Two front-panel 1/4-inch TRS headphone outputs have independent volume control (+18.4 dBu max, 120 dB dynamic range). A microSD slot records and plays up to 32 channels of broadcast WAV, and the LT-USB card carries up to 16 in / 16 out channels at up to 96 kHz, or 8 channels at 192 kHz.
