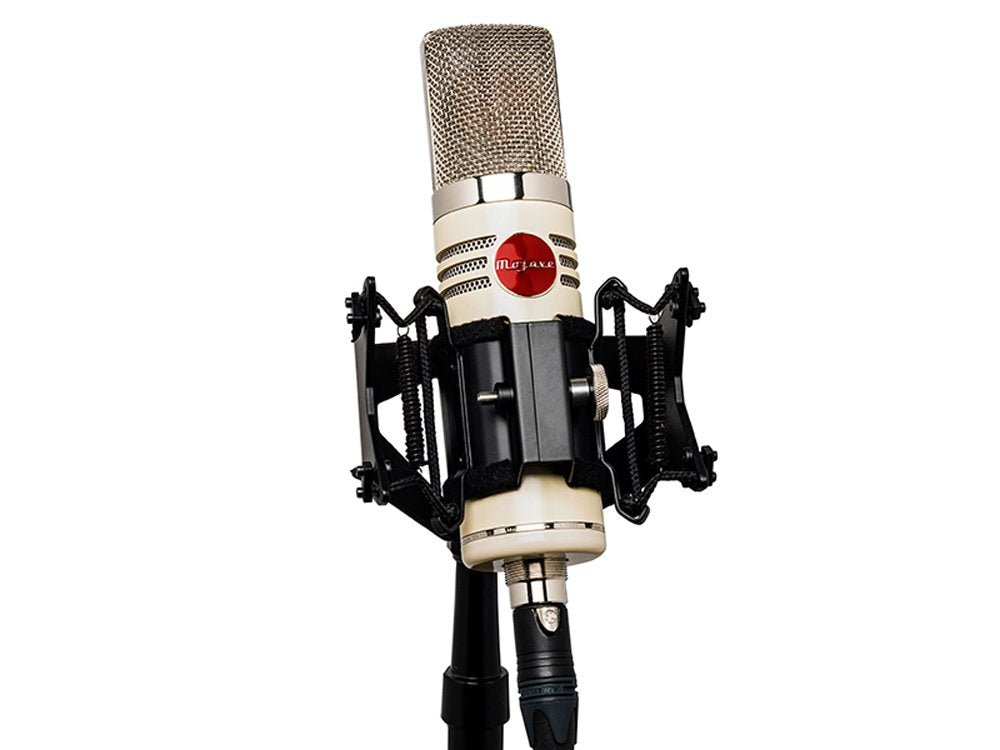

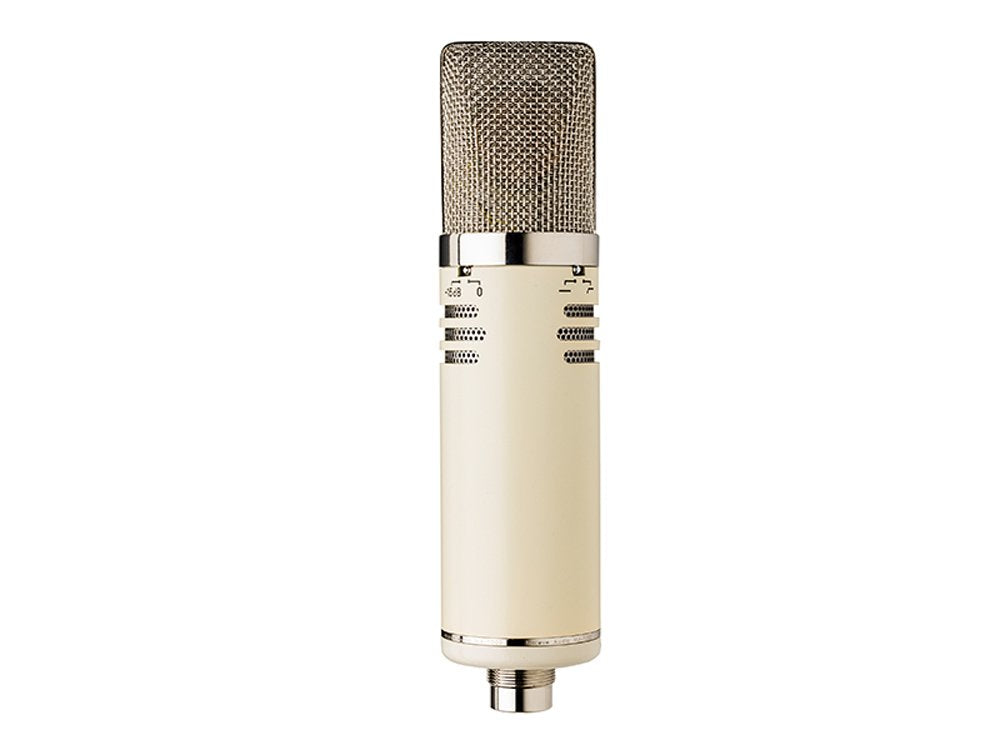

MOJAVE AUDIO MA-1000 DS — Microphone
MOJAVE AUDIO MA-1000 DS — Microphone
Mojave Audio MA-1000 DS is a multi-pattern vacuum tube condenser microphone system; the DS suffix in retailer/catalog usage denotes the dark-satin finish version of the MA-1000.
Specifications
Microphone Type
| Type | Externally polarized pressure-gradient tube condenser microphone |
|---|---|
| Diaphragm | 1-inch gold-sputtered diaphragm, 3 microns thick |
| Polar pattern | Continuously variable from omnidirectional to figure-8 |
| Capsule | 251-style capsule |
Electronics
| Tube | Original new old-stock 5840 tube |
|---|---|
| Transformer | Custom-designed Coast Magnetics transformer |
| Power supply | Dedicated power supply with continuously variable polar-pattern selector |
| Power requirement | 6 VDC at 150 mA and 125 VDC at 0.7 mA from dedicated power supply |
Audio Performance
| Frequency response | 20 Hz to 20 kHz +/-3 dB |
|---|---|
| Sensitivity | Omni -37.5 dB, cardioid -36.0 dB, figure-8 -34.0 dB re. 1 V/Pa |
| Maximum spl | 120 dB with pad off; 135 dB with pad on |
| Distortion | Pad off: <1% at 117 dB SPL, <3% at 125 dB SPL; pad on: <1% at 132 dB SPL, <3% at 140 dB SPL |
| Self noise | 14 dBA nominal, not to exceed 16 dBA |
| Impedance | 200 ohms |
Switches and Included Hardware
| Pad | Switchable 15 dB pad |
|---|---|
| Bass cut | 6 dB per octave below 100 Hz |
| Included accessories | Royer Labs Sling-Shock shock mount, Mogami cable and Neutrik connectors listed by manufacturer |
| Finish variant | DS suffix is used in retailer/catalog naming for dark-satin MA-1000 variant; core specifications follow MA-1000 |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

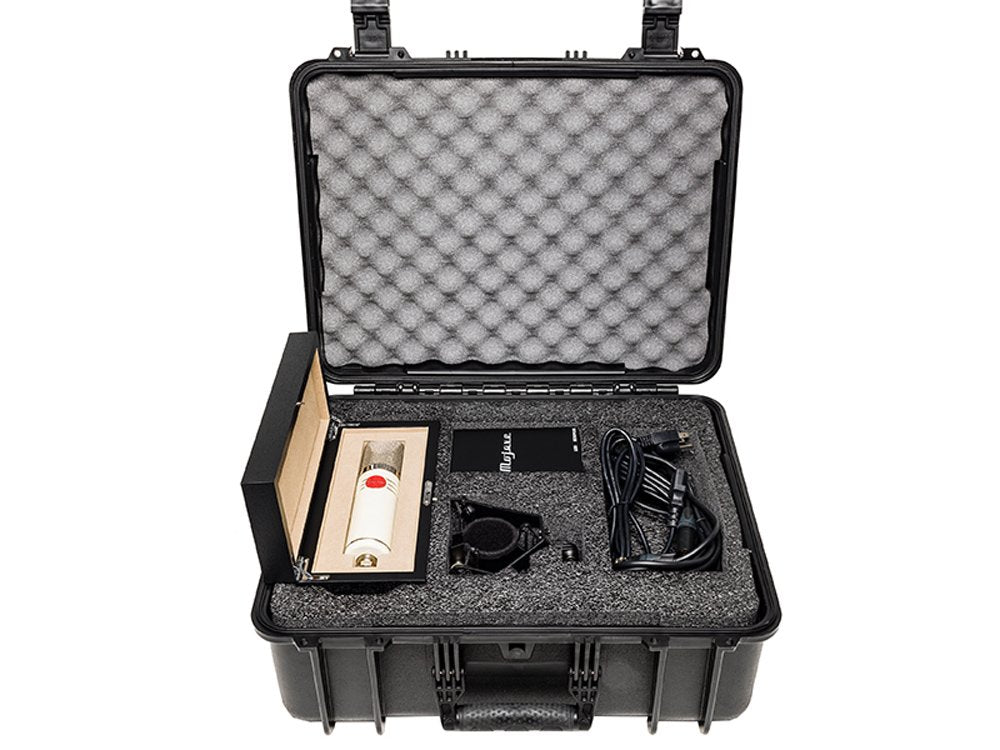

Mojave Audio MA-1000 DS is a multi-pattern vacuum tube condenser microphone system; the DS suffix in retailer/catalog usage denotes the dark-satin finish version of the MA-1000. Mojave's MA-1000 specifications list an externally polarized pressure-gradient double-diaphragm capsule with 1-inch gold-sputtered, 3-micron diaphragm, original new-old-stock 5840 tube and a custom Coast Magnetics transformer. Polar pattern is continuously variable from omnidirectional through cardioid to figure-8 from the dedicated power supply. The microphone has 20 Hz to 20 kHz frequency response +/-3 dB, 200 ohm impedance, 14 dBA nominal self-noise, switchable 15 dB pad and 6 dB/octave bass cut below 100 Hz. Maximum SPL is 120 dB with pad off and 135 dB with pad on. Mojave lists the microphone body at 7 5/8 x 2 inches and 1 lb; the complete carrying case with mic, power supply, shock mount and cables is 13 lb. Accessible pages did not expose GTIN data.
