Moog Muse — Synthesizer
Moog Muse — Synthesizer

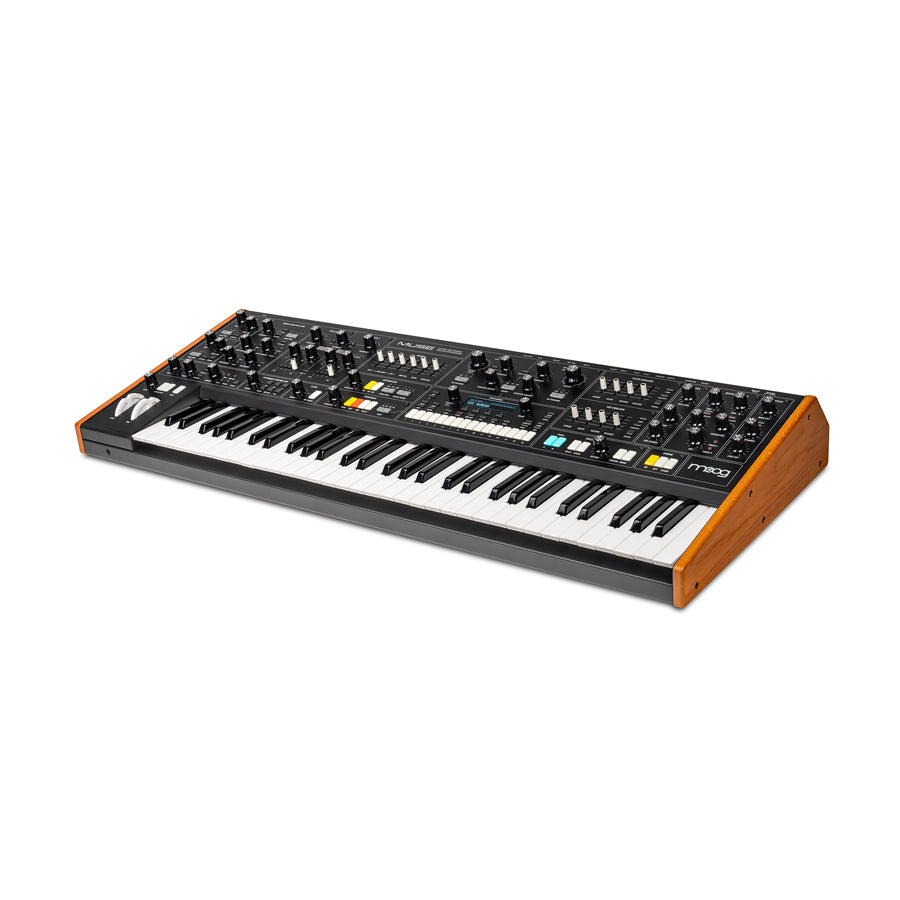

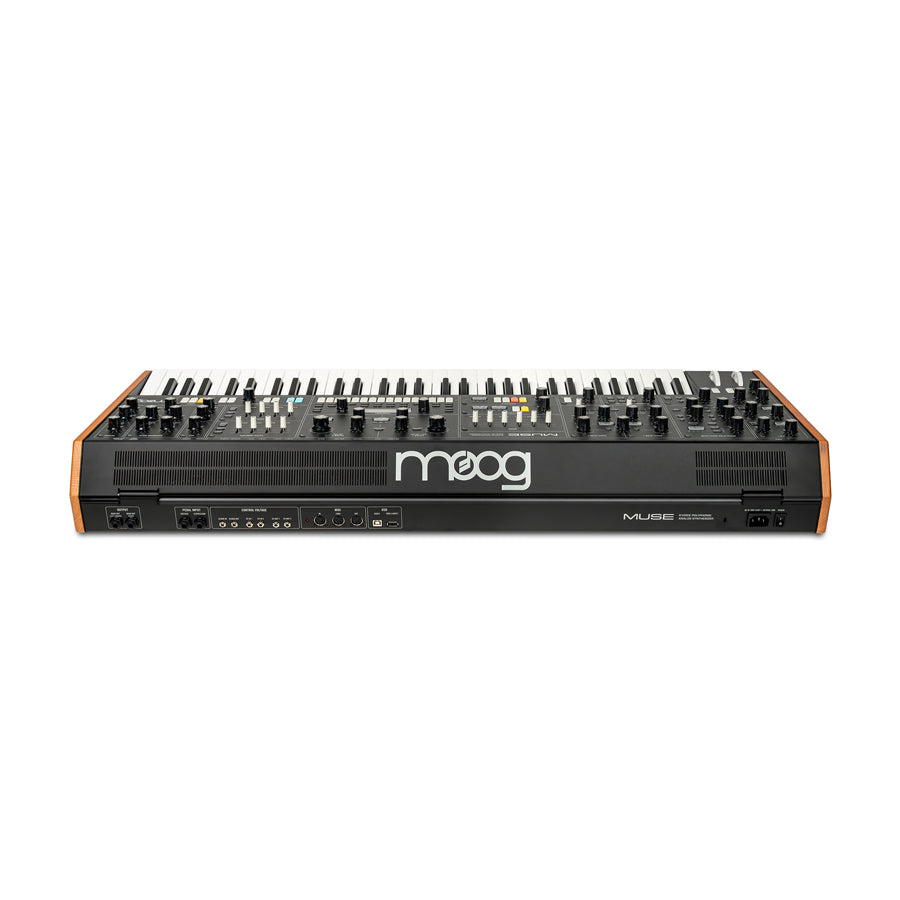

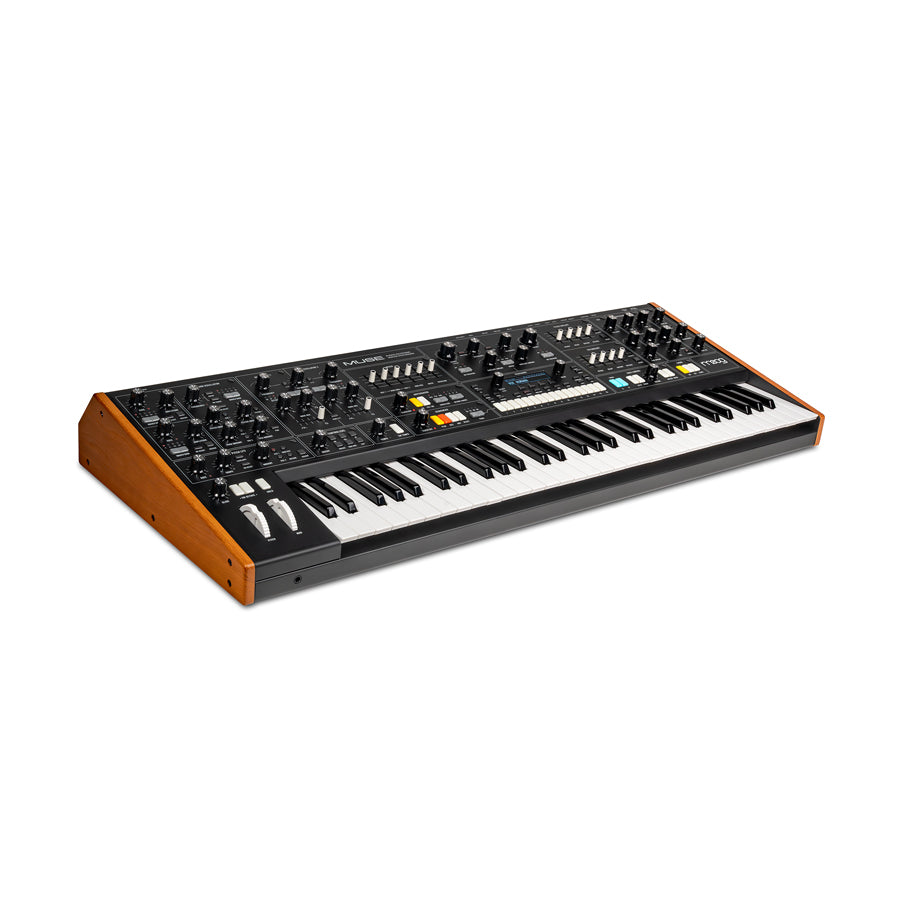

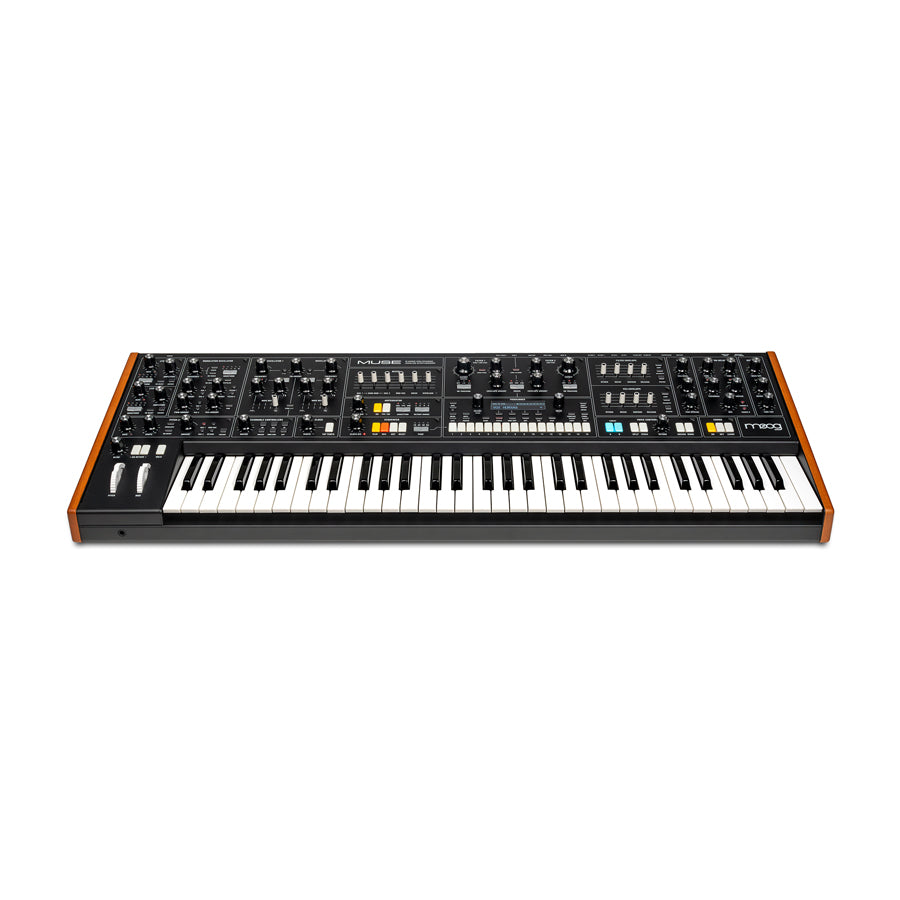

Moog Muse is an eight-voice bi-timbral analog polyphonic synthesizer with a 61-key full-size semi-weighted Fatar keybed, velocity and channel aftertouch.
Specifications
Synthesis
| Product type | Polyphonic bi-timbral analog synthesizer |
|---|---|
| Polyphony | 8 voices |
| Sound engine | Analog |
| Oscillators | 2 analog voltage-controlled oscillators per voice; triangle/saw mix, variable pulse, octave ranges 16', 8', 4', 2', FM routing and hard sync |
Performance
| Keybed | 61 full-size semi-weighted Fatar keybed with velocity and channel aftertouch |
|---|---|
| Controllers | Pitch wheel, modulation wheel, macro knob, octave switch, hold switch, sustain pedal input and expression pedal input |
| Sequencing | Built-in arpeggiator and polyphonic sequencer |
| Panel controls | 44 knobs, 16 sliders, 129 buttons and OLED screen |
I/O and Physical
| Audio outputs | Main left/right 1/4-inch TRS outputs and front-edge 1/4-inch stereo headphone output |
|---|---|
| Control voltage | Two 1/8-inch TS CV inputs, two 1/8-inch TS CV outputs, analog clock input and clock output |
| Dimensions | 99 x 42 x 11 cm / 39 x 17 x 4.5 in |
| Weight | 14.55 kg / 32 lb |
Fit and constraints
Intended use
Constraints
To use it
Questions
What firmware, software, storage, and synchronization features are supported by this exact model?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Which power supply, adapters, and included accessories ship with the retailer offer?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Moog Muse is an eight-voice bi-timbral analog polyphonic synthesizer with a 61-key full-size semi-weighted Fatar keybed, velocity and channel aftertouch. Moog specifies two analog voltage-controlled oscillators per voice with selectable triangle/saw mix, variable-width pulse, octave settings from 16' to 2', hard sync and FM routing; the instrument also includes a stereo Diffusion Delay processor, arpeggiator, polyphonic sequencer, pitch and modulation wheels, assignable sustain/expression pedal inputs, CV inputs/outputs, analog clock I/O, 1/4-inch TRS main outputs and a front-edge 1/4-inch stereo headphone output. Moog support lists product-only dimensions as 99 x 42 x 11 cm and weight as 14.55 kg / 32 lb.
