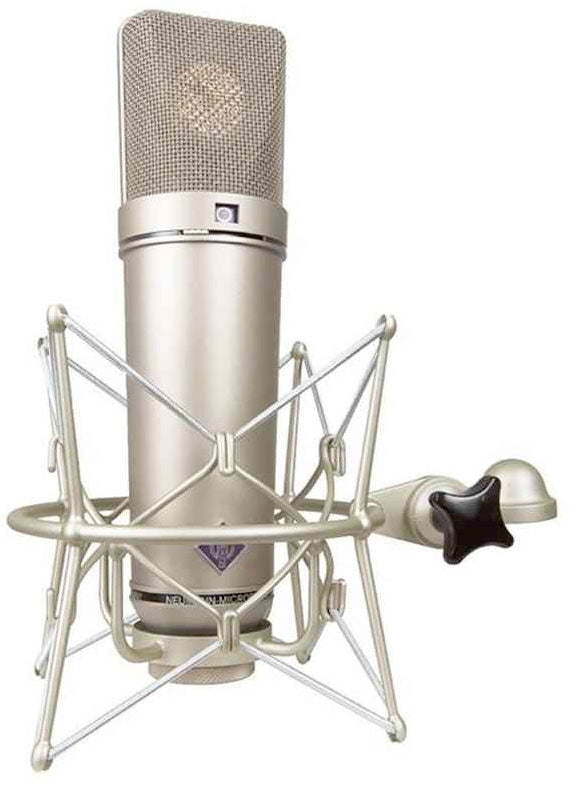

Silver large diaphragm studio microphone with shock mount and black tension knob on white background.

NEUMANN U 87 Ai Studio Set — Microphone

$5,250.00
$5,250.00
Skip to product information
Silver large diaphragm studio microphone with shock mount and black tension knob on white background.
  • Silver large diaphragm studio microphone with shock mount and black tension knob on white background.
  • NEUMANN U 87 Ai Studio Set — Microphone, studio recording microphone body
  • NEUMANN U 87 Ai Studio Set — Microphone, studio recording microphone body
  • Silver large diaphragm studio microphone with shock mount and black tension knob on white background.
  • NEUMANN U 87 Ai Studio Set — Microphone, studio recording microphone body
  • NEUMANN U 87 Ai Studio Set — Microphone, studio recording microphone body
NEUMANN U 87 Ai Studio Set — Microphone

NEUMANN U 87 Ai Studio Set — Microphone

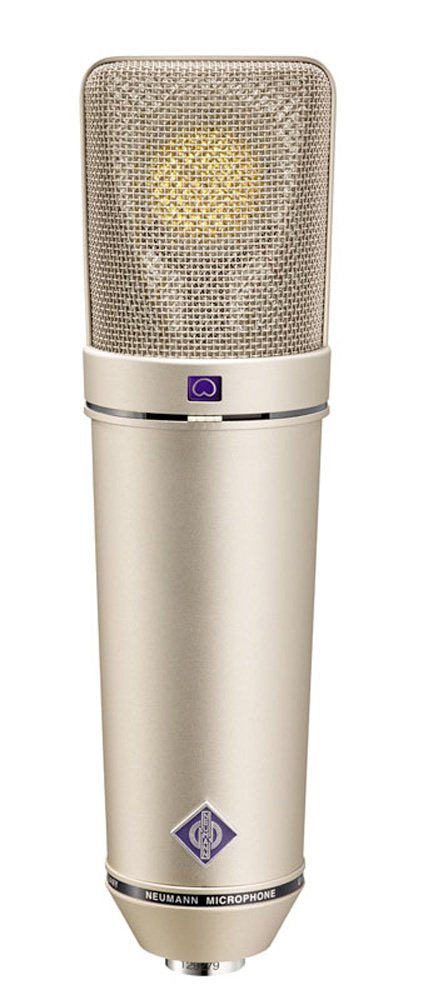

Neumann U 87 Ai Studio Set is the nickel-finish studio package for the U 87 Ai large-diaphragm FET condenser microphone.

$5,250.00
$5,250.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios needing a multipattern large-diaphragm condenser for vocals, speech, acoustic instruments, overheads, guitar cabinets, room pickup or stereo techniques when paired.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Large-diaphragm FET condenser studio microphone set · 48 V +/- 4 V, 0.8 mA

Identity

Product type Large-diaphragm FET condenser studio microphone set
Finish Nickel
Catalog number 008660

Transducer and Patterns

Operating principle Pressure gradient transducer
Directional patterns Omnidirectional, cardioid, figure-8
Frequency range 20 Hz-20 kHz
Switches Switchable 10 dB preattenuation and low-frequency cutoff

Electrical

Sensitivity 20/28/22 mV/Pa +/- 1 dB at 1 kHz into 1 kOhm, omni/cardioid/figure-8
Equivalent noise a weighted 15/12/14 dB-A, omni/cardioid/figure-8
Max spl 117 dB cardioid at 0.5% THD; 127 dB with preattenuation
Signal to noise 79/82/80 dB A-weighted, omni/cardioid/figure-8
Phantom power 48 V +/- 4 V, 0.8 mA

Set Contents

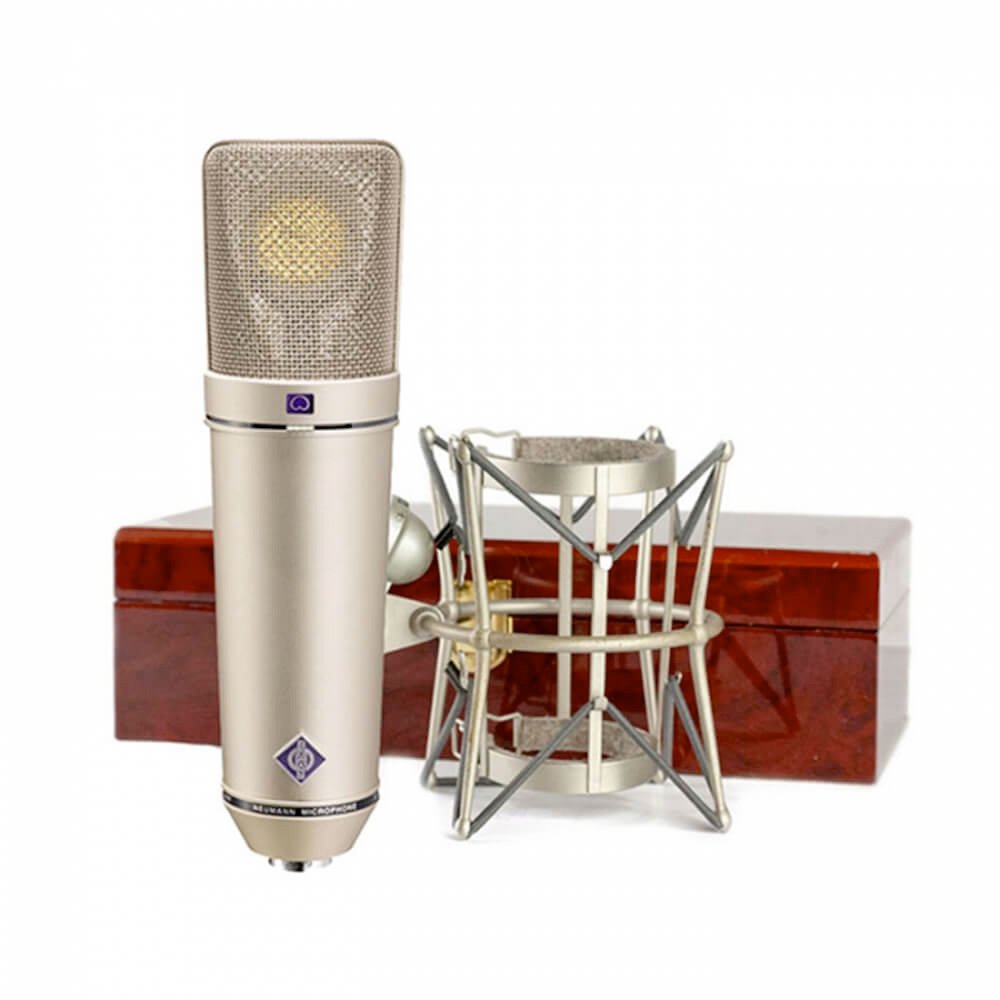

Included accessories Studio set includes shockmount, pop filter, mic cable and wooden storage box according to retailer listing

Fit and constraints

Studios needing a multipattern large-diaphragm … · 48 V +/- 4 V, 0.8 mA

Intended use

Use Studios needing a multipattern large-diaphragm condenser for vocals, speech, acoustic instruments, overheads, guitar cabinets, room pickup or stereo techniques when paired.
Not for Users needing a budget condenser, dynamic handheld mic, onboard digital output, tube electronics, or a matched stereo pair in one package.

Constraints

Power48 V +/- 4 V, 0.8 mA

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

Neumann U 87 Ai Studio Set is the nickel-finish studio package for the U 87 Ai large-diaphragm FET condenser microphone. Neumann specifies a pressure-gradient transducer with switchable omnidirectional, cardioid and figure-8 polar patterns, 20 Hz-20 kHz frequency range, 200 ohm rated impedance and 48 V phantom powering at 0.8 mA. Sensitivity is listed as 20/28/22 mV/Pa for omni/cardioid/figure-8, equivalent noise as 15/12/14 dB-A, and A-weighted S/N as 79/82/80 dB. Maximum SPL is 117 dB in cardioid at 0.5% THD, or 127 dB with preattenuation. The microphone measures 200 mm long by 56 mm diameter and weighs 500 g. Neumann lists catalog number 008660 for the nickel Studio Set.
