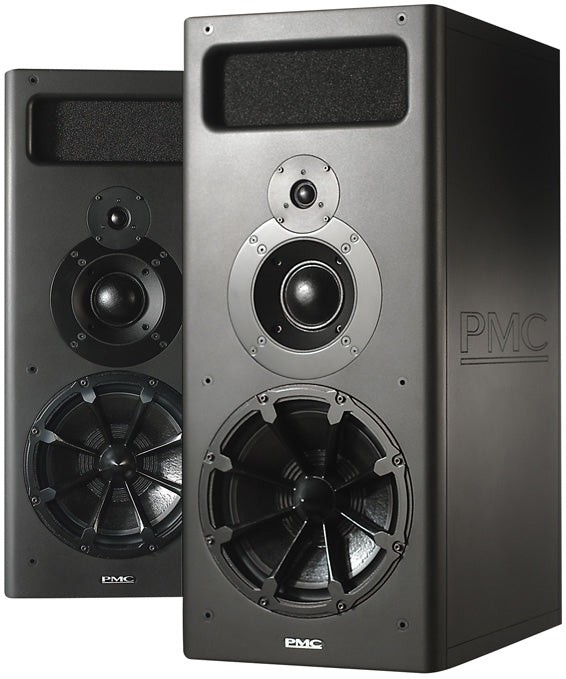

A tall, upright rectangular PMC MB2S passive studio monitor in a dark cabinet, with a three-way driver array on the front baffle: a large low-frequency cone driver, a smaller midrange dome, and a tweeter above it.

PMC MB2S Passive — Studio Monitor

$31,950.00
$31,950.00
Skip to product information
A tall, upright rectangular PMC MB2S passive studio monitor in a dark cabinet, with a three-way driver array on the front baffle: a large low-frequency cone driver, a smaller midrange dome, and a tweeter above it.
  • A tall, upright rectangular PMC MB2S passive studio monitor in a dark cabinet, with a three-way driver array on the front baffle: a large low-frequency cone driver, a smaller midrange dome, and a tweeter above it.

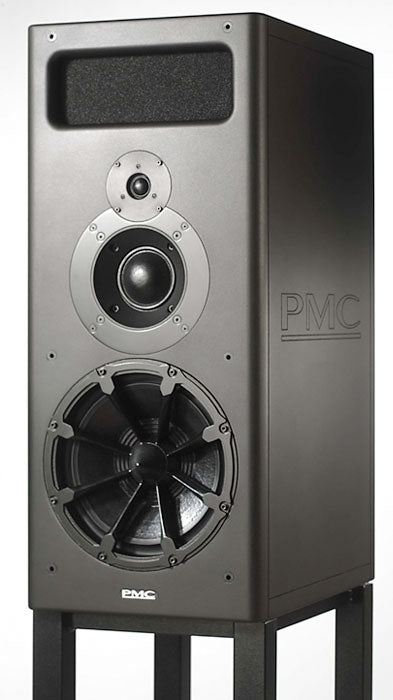

  • PMC MB2S Passive — Studio Monitor, nearfield reference loudspeaker
  • A tall, upright rectangular PMC MB2S passive studio monitor in a dark cabinet, with a three-way driver array on the front baffle: a large low-frequency cone driver, a smaller midrange dome, and a tweeter above it.
  • PMC MB2S Passive — Studio Monitor, nearfield reference loudspeaker
PMC MB2S Passive — Studio Monitor

PMC MB2S Passive — Studio Monitor

$31,950.00
$31,950.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Professional mid-sized control rooms doing mastering, mixing, broadcast, and film/post-production where a full-range passive main monitor is wanted.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

3-way passive studio monitor · 200-800W

Configuration & Design

Type 3-way passive studio monitor
Enclosure Technology PMC Advanced Transmission Line (ATL)
Effective ATL Length 3 m (10 ft)
Mounting Soffit-mountable or on custom stands

Drivers

Low Frequency 310mm PMC Radial driver
Mid Frequency 75mm PMC fabric soft dome
High Frequency 27mm fabric soft dome

Acoustic Performance

Frequency Response 20Hz - 25kHz
Sensitivity 91dB 1W 1m
Impedance 8 Ohm nominal
Crossover Frequencies 380Hz & 3.8kHz
HF Film Filter Roll-off 1.5dB, 3dB, and flat

Amplification & Connectivity

Recommended Amp Power 200-800W
Input Connectors 3 pairs of 4mm sockets (tri-wire or tri-amp)

Physical

Height 870mm (34.25 in)
Width 380mm (14.96 in)
Depth 535mm (21.06 in)
Weight 49kg (108 lbs)

Fit and constraints

Professional mid-sized control rooms doing mast… · 200-800W · 380mm (14.96 in)

Intended use

Use Professional mid-sized control rooms doing mastering, mixing, broadcast, and film/post-production where a full-range passive main monitor is wanted. The HF film filter (1.5dB/3dB/flat) makes it well suited to post/broadcast rooms that need to match a defined HF target, and it can be soffit-mounted for permanent installs.
Not for Home or project studios and anyone wanting a plug-and-play active monitor: the MB2S is passive and requires a separate 200-800W amplifier (or three amps for tri-amping), plus tri-wire/tri-amp cabling into 4mm sockets. At 49kg each and 870mm tall it is heavy and large, so it is impractical for small desktops or nearfield-only setups.

Constraints

Power200-800W
Board space380mm (14.96 in)
ControlsSources conflict on two specs. Depth: the manufacturer page lists 535mm (21.06 in), whi...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The PMC MB2S is a passive three-way studio monitor for mid-sized control rooms. PMC specifies 200–800 W recommended amplifier power; confirm amplification, installation, and room requirements before setup.
