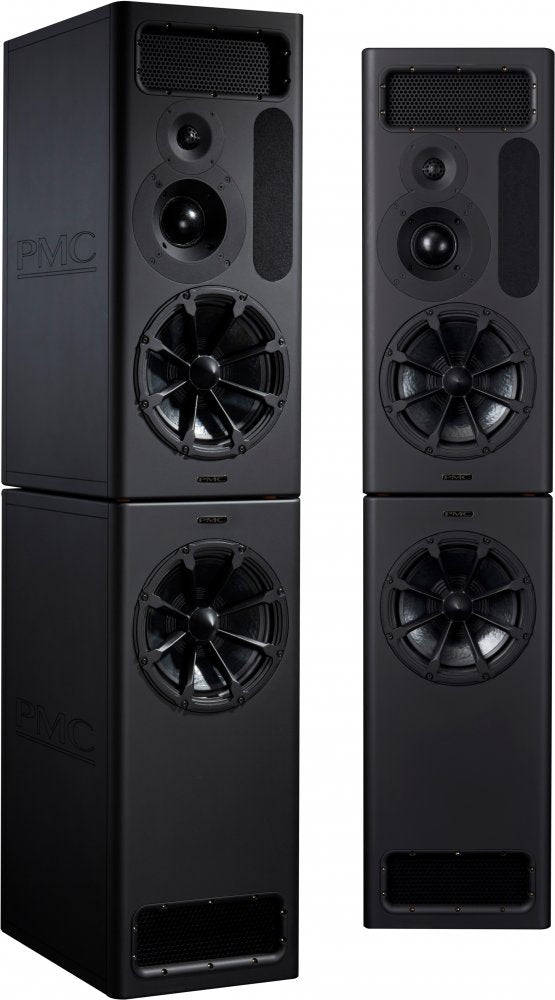

A matched pair of PMC MB3S XBD-A studio monitors in black, each a tall two-box stack: an upper main cabinet with a large 12-inch woofer, a midrange dome, a small tweeter and a slotted transmission-line vent, sitting on a lower XBD bass cabinet holding a second 12-inch woofer, with the embossed PMC logo on the side panel.

PMC MB3S XBD-A — Studio Monitor

$132,200.00
$132,200.00
Skip to product information
A matched pair of PMC MB3S XBD-A studio monitors in black, each a tall two-box stack: an upper main cabinet with a large 12-inch woofer, a midrange dome, a small tweeter and a slotted transmission-line vent, sitting on a lower XBD bass cabinet holding a second 12-inch woofer, with the embossed PMC logo on the side panel.
  • A matched pair of PMC MB3S XBD-A studio monitors in black, each a tall two-box stack: an upper main cabinet with a large 12-inch woofer, a midrange dome, a small tweeter and a slotted transmission-line vent, sitting on a lower XBD bass cabinet holding a second 12-inch woofer, with the embossed PMC logo on the side panel.
  • PMC MB3S XBD-A — Studio Monitor, nearfield reference loudspeaker
  • PMC MB3S XBD-A — Studio Monitor, nearfield reference loudspeaker
  • PMC MB3S XBD-A — Studio Monitor, nearfield reference loudspeaker
  • A matched pair of PMC MB3S XBD-A studio monitors in black, each a tall two-box stack: an upper main cabinet with a large 12-inch woofer, a midrange dome, a small tweeter and a slotted transmission-line vent, sitting on a lower XBD bass cabinet holding a second 12-inch woofer, with the embossed PMC logo on the side panel.
  • PMC MB3S XBD-A — Studio Monitor, nearfield reference loudspeaker
  • PMC MB3S XBD-A — Studio Monitor, nearfield reference loudspeaker
  • PMC MB3S XBD-A — Studio Monitor, nearfield reference loudspeaker
PMC MB3S XBD-A — Studio Monitor

PMC MB3S XBD-A — Studio Monitor

Three-way active reference monitor with dual 12-inch bass drivers per channel via twin-cabinet design, tri-amplified at 3225 W per channel, delivering 129 dB peak SPL and 20 Hz-25 kHz response without requiring a subwoofer.

$132,200.00
$132,200.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Large-room, high-output professional work where full-range (20 Hz) reproduction is needed without a subwoofer: mastering suites, scoring/dubbing and post-production stages, and multichannel main-monitor arrays (a matching MB3 XBD-C-A centre channel is available).
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

3-way ATL active reference monitor · 2400 Wrms

System

Type 3-way ATL active reference monitor
Configuration Twin-cabinet per channel (MB3 main cabinet + XBD extended-bass cabinet)
Amplification Active, tri-amplified
Frequency Response 20 Hz - 25 kHz
Peak SPL 129 dB @ 1 m
Input Sensitivity Adjustable +4 to +20 dBu

Drive Units

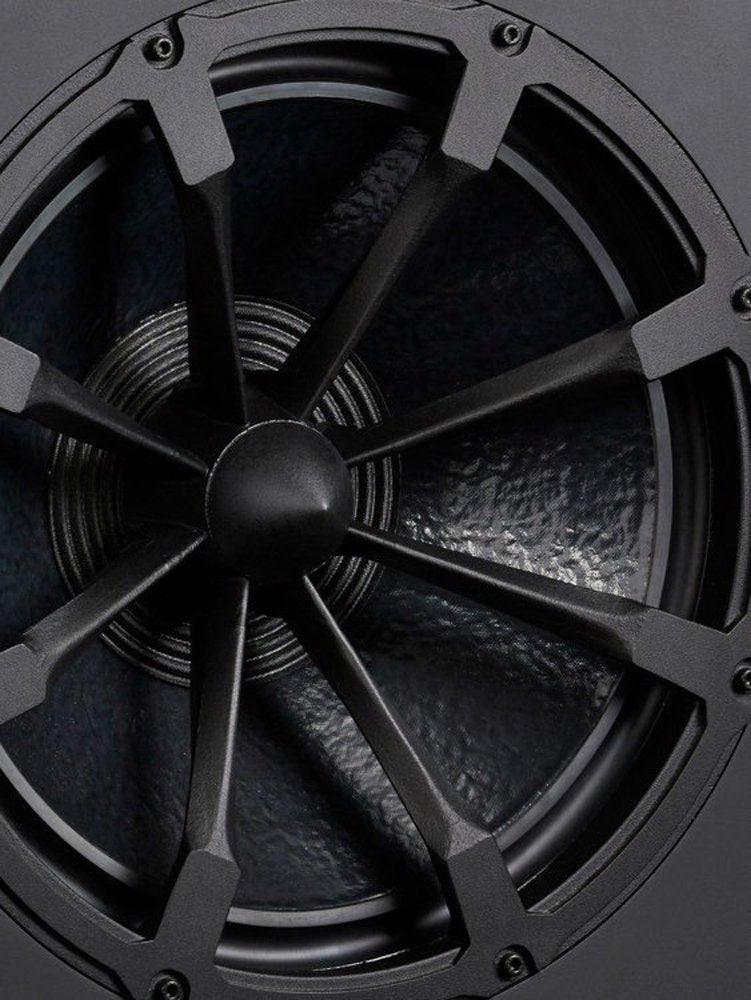

LF Driver 2 x PMC 310 mm (12 in) Radial driver
MF Driver PMC hand-built 75 mm soft-dome driver
HF Driver PMC 34 mm soft-dome tweeter with acoustic radiator

Crossover & Amplifier Power

Crossover Frequencies 380 Hz & 3.8 kHz
LF Amplifier Power 2400 Wrms
MF Amplifier Power 550 Wrms
HF Amplifier Power 275 Wrms
Total Power per Channel 3225 W per channel

Bass Loading

Loading Alignment Advanced Transmission Line (ATL)
Effective ATL Length 2 x 3 m (10 ft)
XBD Bass Headroom Additional 3 dB of headroom below the 380 Hz bass crossover

Connectivity

Input Connectors AES3, 24-bit, 96 kHz
Input Impedance 20 kOhm balanced

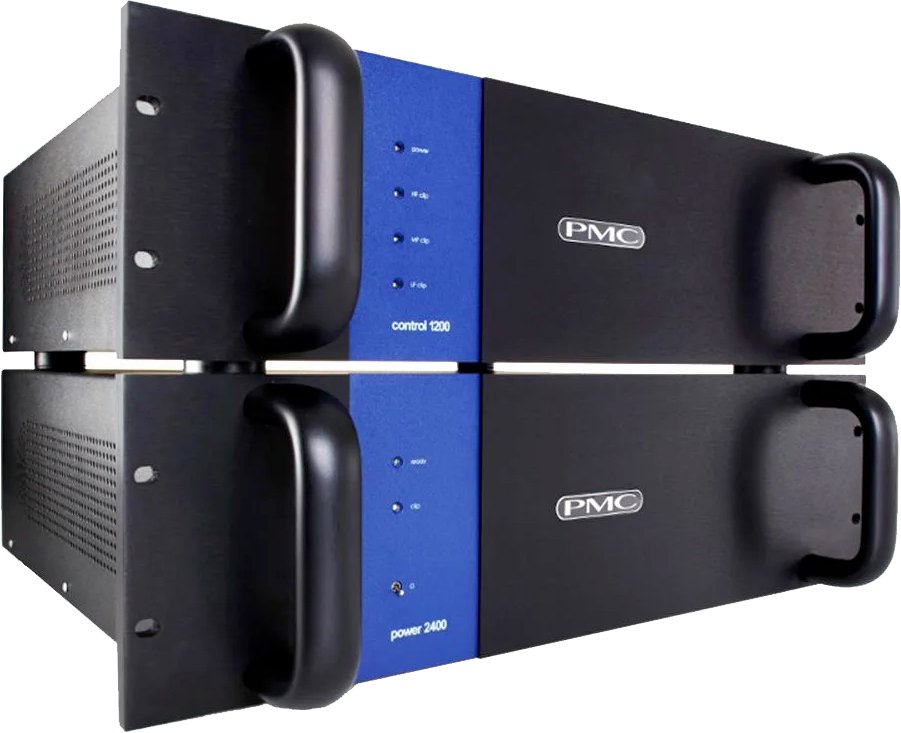

Amplifier Electronics PMC Control 1200, PMC Power 2400 and RC2 remote per side

Physical

Height 1740 mm (68.5 in)
Width 380 mm (15 in)
Depth 535 mm (21 in)
Weight (each) 88 kg (194 lbs) each

Warranty & Options

Warranty Up to 20 years with product registration within 10 days of purchase (manufacturer T&Cs apply)
Matching Centre Channel MB3 XBD-C-A available for multi-channel arrays
Mounting Freestanding or soffit-mounted; cabinets may be positioned vertically or side by side

Fit and constraints

Large-room, high-output professional work where… · 2400 Wrms · 380 mm (15 in)

Intended use

Use Large-room, high-output professional work where full-range (20 Hz) reproduction is needed without a subwoofer: mastering suites, scoring/dubbing and post-production stages, and multichannel main-monitor arrays (a matching MB3 XBD-C-A centre channel is available). The tri-amped 3225 W-per-channel design and 129 dB peak SPL suit main/soffit-mounted monitoring at midfield-to-main distances.
Not for Small or acoustically untreated rooms and nearfield setups: at 1740 mm tall and 88 kg per side, each channel is a two-box floor stack, not a nearfield monitor. Also skip if your interface only offers analog line outputs, because PMC lists the input as AES3 digital (24-bit/96 kHz) for this model, or if you need a compact/lower-cost monitor.

Constraints

Power2400 Wrms
Board space380 mm (15 in)
ControlsSources conflict on low-frequency extension, SPL and model naming. PMC's own datasheet ...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The PMC MB3S XBD-A is a three-way active reference studio monitor built on PMC's Advanced Transmission Line (ATL) bass loading. Each channel is a twin-cabinet system: a main cabinet housing a 12-inch Radial bass driver, a 75 mm soft-dome midrange and a 34 mm soft-dome tweeter, stacked with a separate XBD cabinet that adds a second 12-inch Radial bass driver. It is tri-amplified with 3225 W per channel (2400 W LF, 550 W MF, 275 W HF) and crosses over at 380 Hz and 3.8 kHz. The manufacturer specifies a 20 Hz-25 kHz frequency response and a peak SPL of 129 dB at 1 m, and states the extended-bass design removes the need for a dedicated subwoofer. The twin cabinets can be freestanding or soffit-mounted and positioned vertically or side by side.
