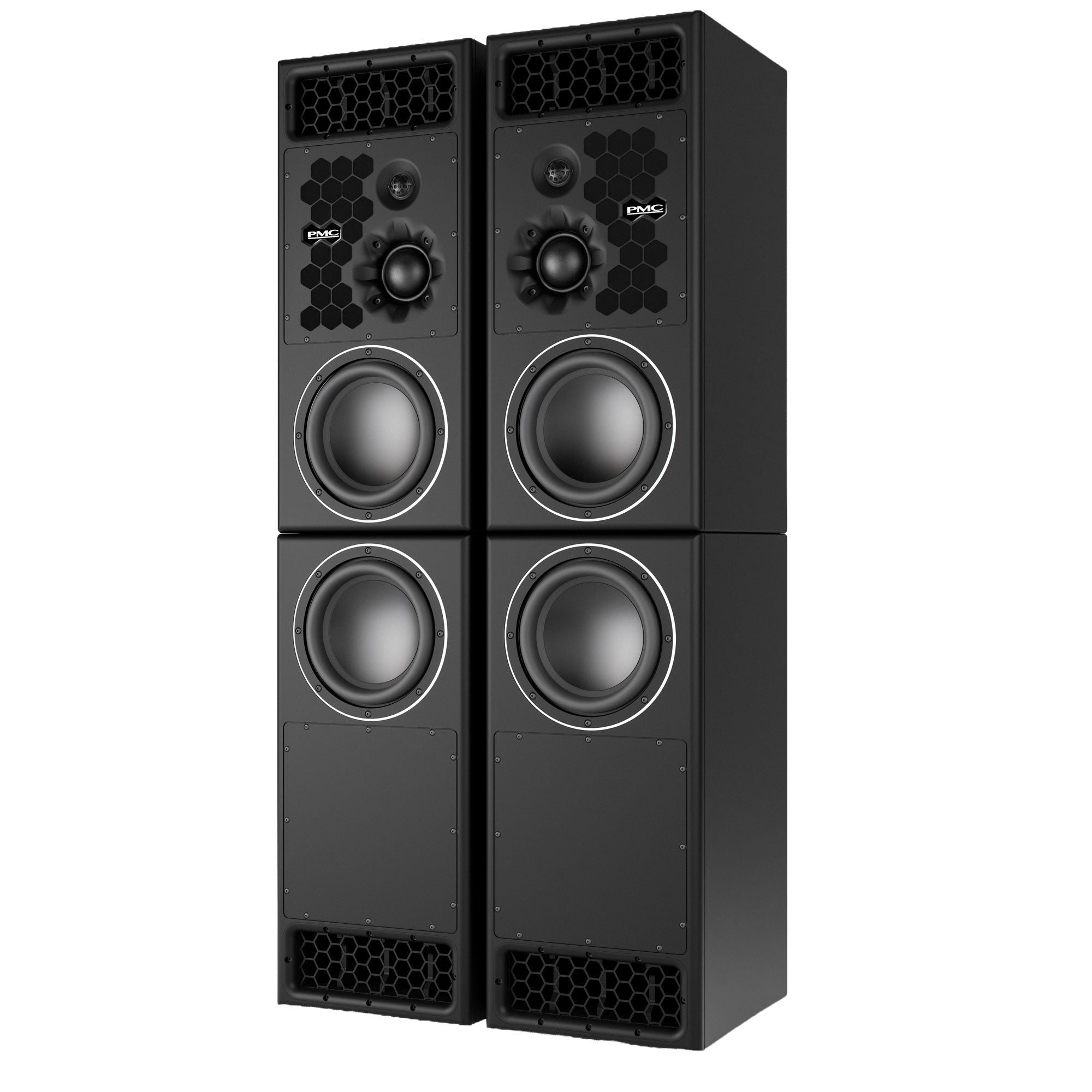

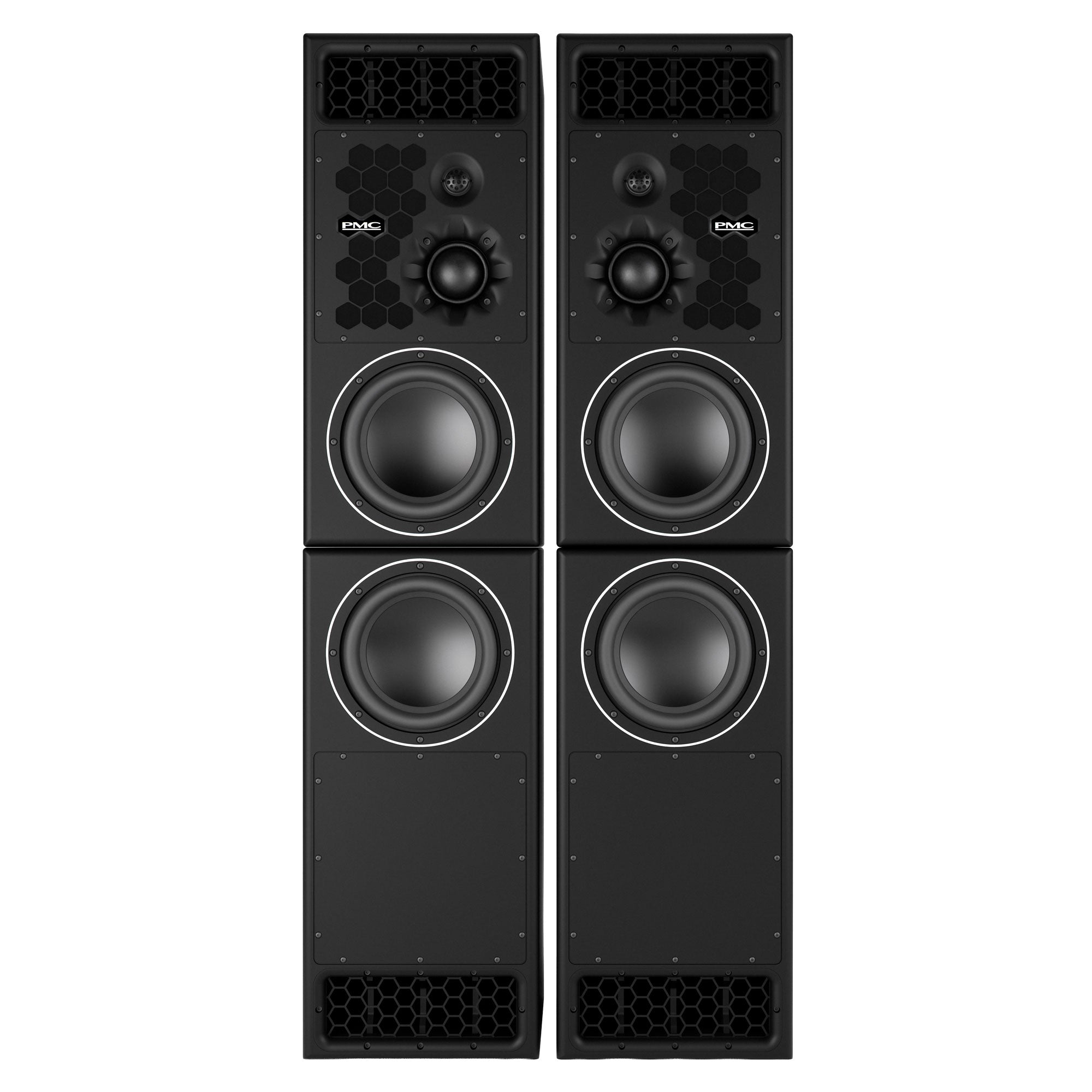

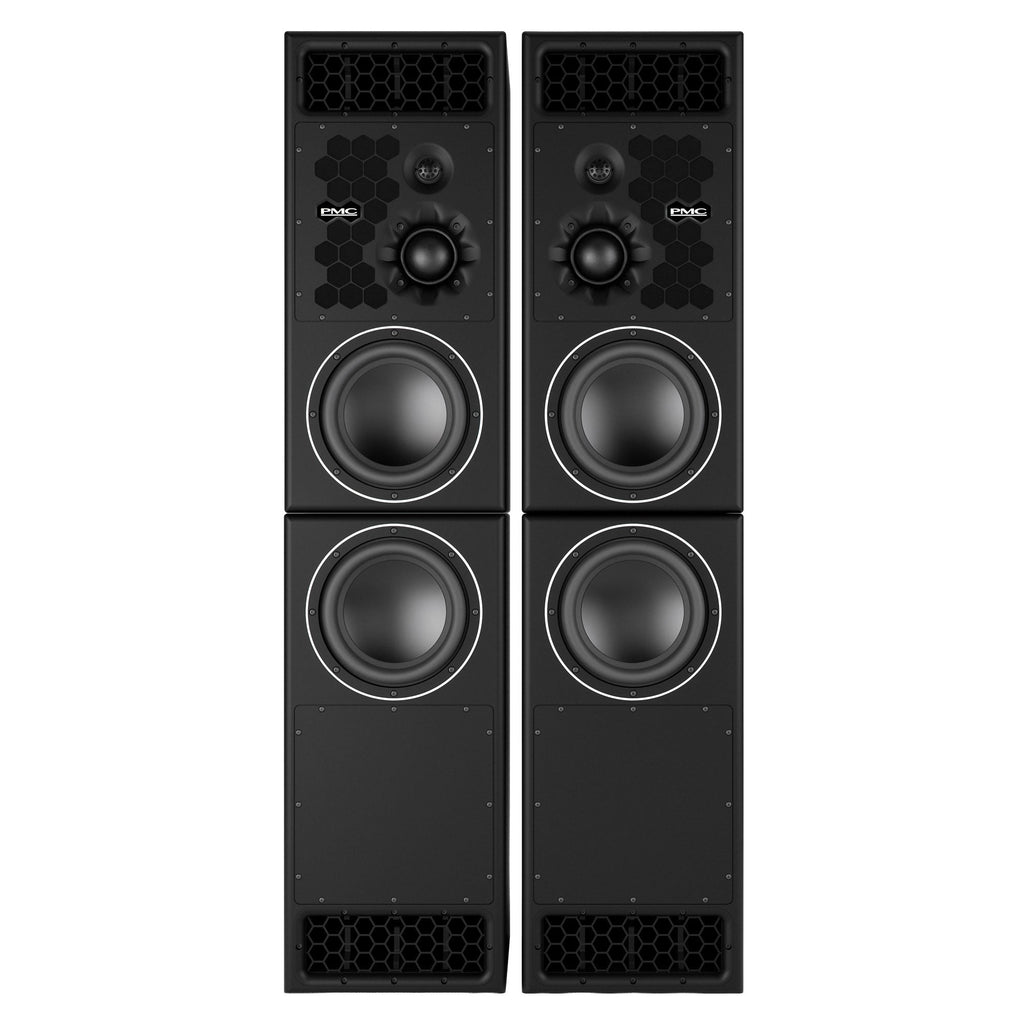

Two matching tall black rectangular PMC studio monitor cabinets shown as a vertical stack; the upper cabinet has three visible drive units (a small dome tweeter, a midrange, and a 10-inch bass driver) with a front PMC logo, and the lower cabinet houses a single 10-inch bass driver.

PMC 10 XBD — Studio Monitor

$87,350.00
$87,350.00
Skip to product information
Two matching tall black rectangular PMC studio monitor cabinets shown as a vertical stack; the upper cabinet has three visible drive units (a small dome tweeter, a midrange, and a 10-inch bass driver) with a front PMC logo, and the lower cabinet houses a single 10-inch bass driver.
  • Two matching tall black rectangular PMC studio monitor cabinets shown as a vertical stack; the upper cabinet has three visible drive units (a small dome tweeter, a midrange, and a 10-inch bass driver) with a front PMC logo, and the lower cabinet houses a single 10-inch bass driver.
  • PMC 10 XBD — Studio Monitor
  • PMC 10 XBD — Studio Monitor
  • PMC 10 XBD — Studio Monitor
  • PMC 10 XBD — Studio Monitor
  • Two matching tall black rectangular PMC studio monitor cabinets shown as a vertical stack; the upper cabinet has three visible drive units (a small dome tweeter, a midrange, and a 10-inch bass driver) with a front PMC logo, and the lower cabinet houses a single 10-inch bass driver.
  • PMC 10 XBD — Studio Monitor
  • PMC 10 XBD — Studio Monitor
  • PMC 10 XBD — Studio Monitor
  • PMC 10 XBD — Studio Monitor
PMC 10 XBD — Studio Monitor

PMC 10 XBD — Studio Monitor

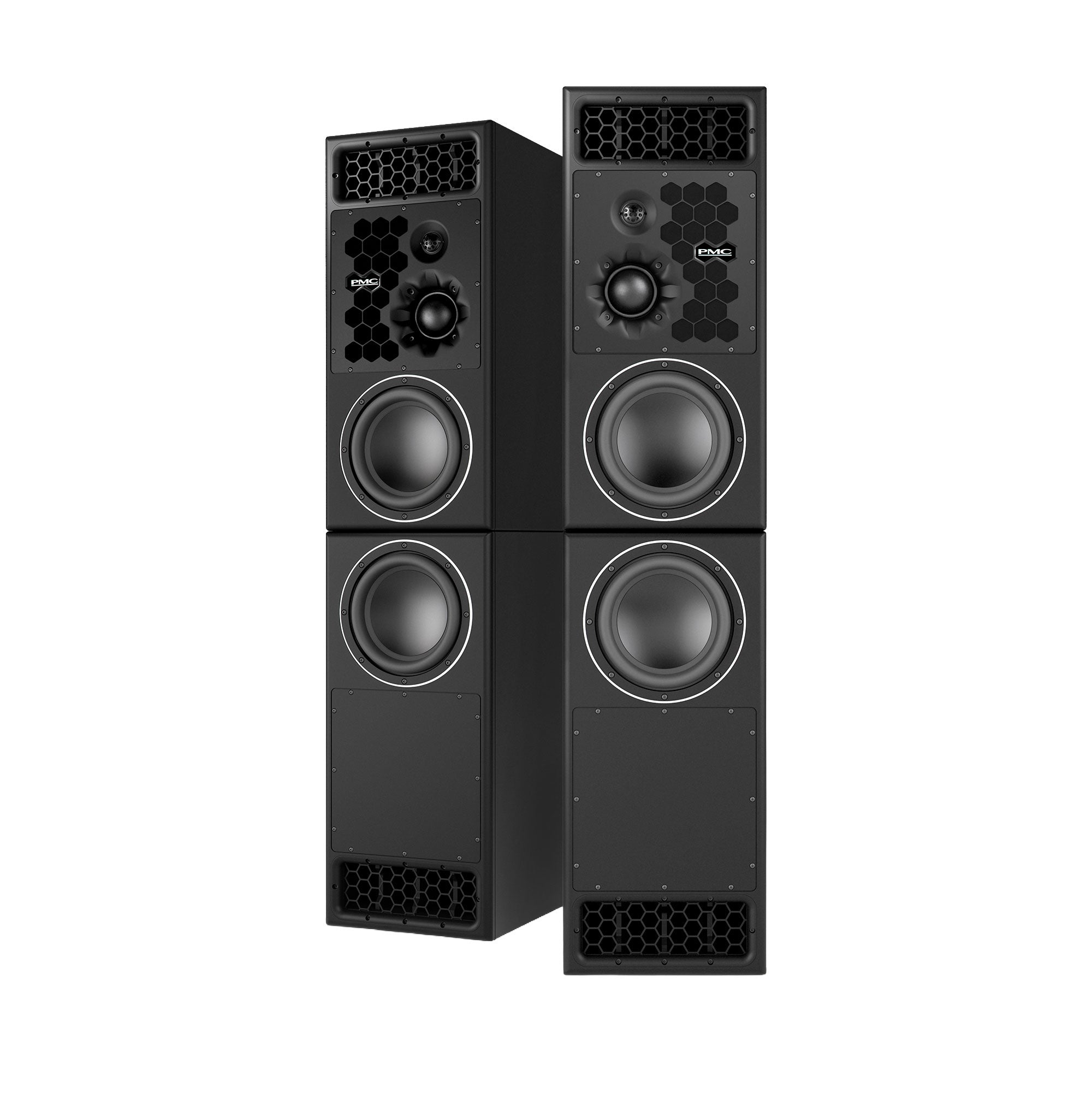

Three-way, four-driver active monitor combining a main cabinet with tweeter, midrange, and 10-inch woofer plus a separate XBD cabinet with matching woofer for extended bass. Dual transmission-line cabinets powered by external 3.6kW amplifier with browser-based room tuning via SoundAlign2.

$87,350.00
$87,350.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Large-format studios that need high low-frequency headroom and SPL: music tracking and mix rooms, film/TV post-production, mastering, and streaming facilities, in both stereo and immersive (Atmos-scale) setups.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

3-way, four-driver, dual-cabinet ATL active reference monitor · 3600W (3.6kW)

System Configuration

Type 3-way, four-driver, dual-cabinet ATL active reference monitor
Driver Count (per channel) 4
Cabinet Configuration Dual-cabinet: main PMC10 three-way loudspeaker plus a matching XBD cabinet fitted only with a bass driver

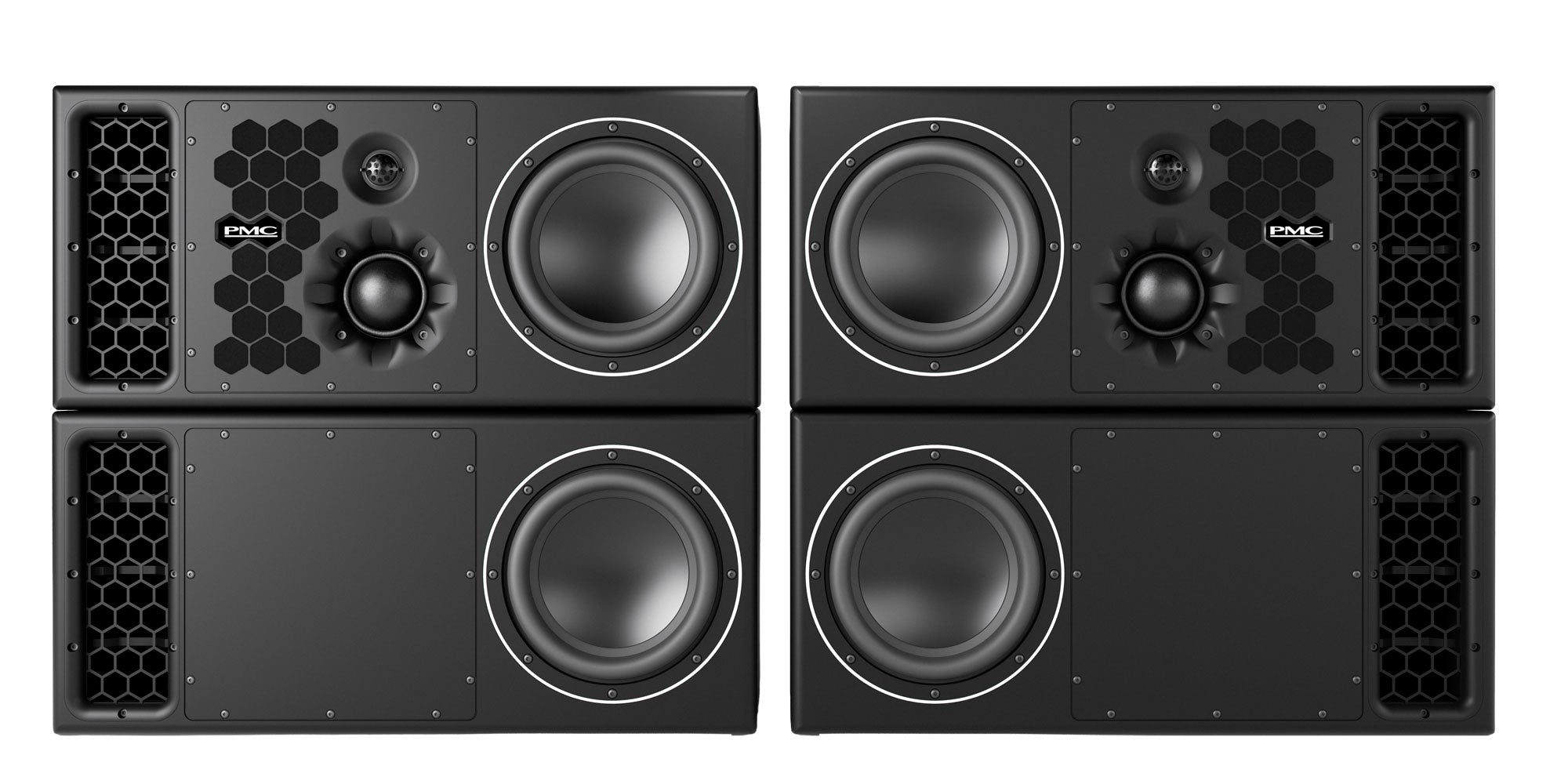

Placement Options Freestanding vertical or horizontal stack, or side-by-side in a soffit; rotatable front panel for vertical or horizontal orientation

Drive Units

High Frequency (Tweeter) 34mm hand-built soft-dome
Mid Frequency PMC75v3 (PMC75 MKIII) soft-dome with a-void damping and n-compass waveguide
Low Frequency (Bass) 2 x 10-inch in-house-designed bass drivers (one in main cabinet, one in XBD cabinet, wired in parallel)

Amplification

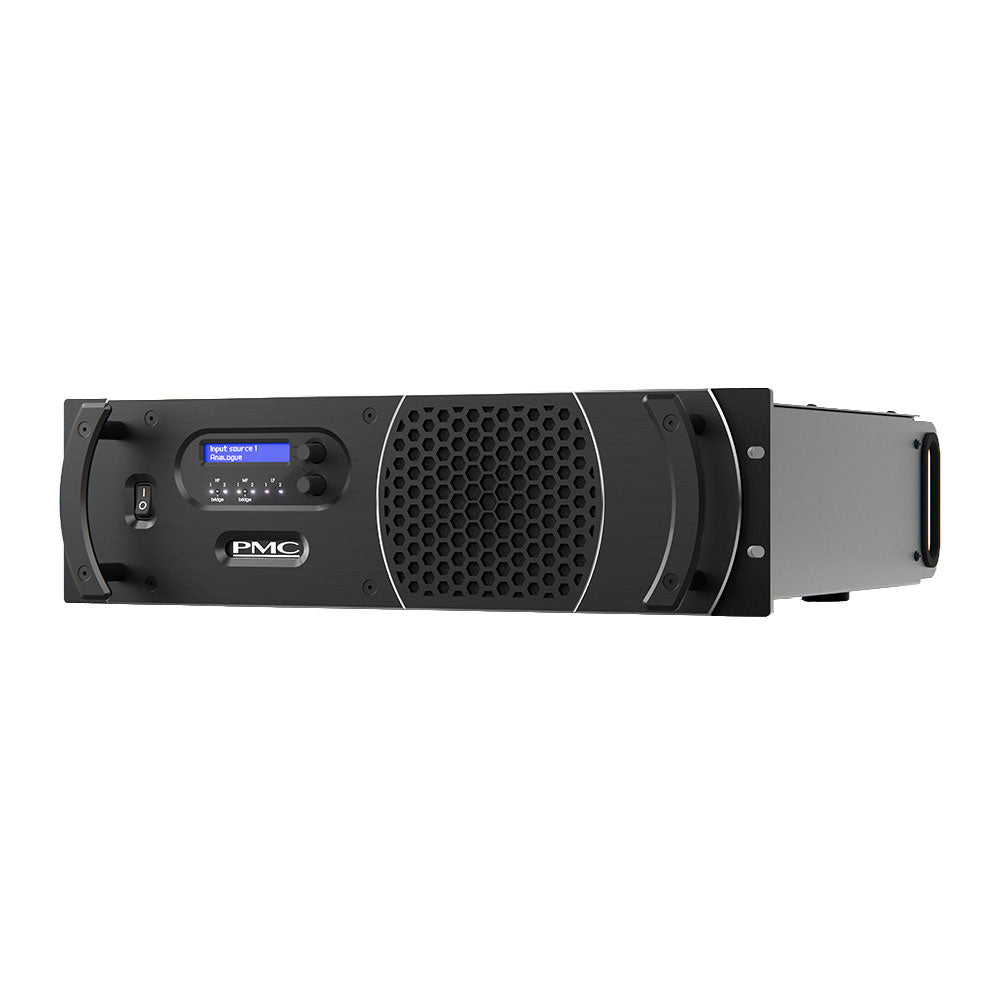

Amplifier / Electronics 1 x PMC master36 rack-mountable DSP / Class-D power amplifier per channel
Total Power (per channel) 3600W (3.6kW)
HF Amplifier Power 800
MF Amplifier Power 800
LF Amplifier Power 2 x 1000W

Enclosure & Acoustic Design

Bass Loading ATL (Advanced Transmission Line)
Venting Technology LaminairX aerodynamic vents

Connectivity & Control

Inputs Analogue & digital, up to 192kHz
Digital Input Format AES3
Crossover Precision digital crossovers optimised for the PMC10 driver combination, with transparent excursion limiting
Room Alignment / Control Full DSP room alignment EQ via SoundAlign2 browser-based interface over LAN

Physical

Dimensions (per cabinet) 770mm H x 355mm W x 420mm D (+10mm LF driver surround)
Weight - Main 3-way Cabinet 52
Weight - XBD Bass Cabinet 42
Weight - Total (per channel system) 94

Fit and constraints

Large-format studios that need high low-frequen… · 3600W (3.6kW)

Intended use

Use Large-format studios that need high low-frequency headroom and SPL: music tracking and mix rooms, film/TV post-production, mastering, and streaming facilities, in both stereo and immersive (Atmos-scale) setups. Suited to buyers who want PMC's ATL transmission-line bass with full DSP room alignment and don't mind a large dual-cabinet, externally-amplified system.
Not for Nearfield or small-room users, home studios, and anyone wanting a compact plug-and-play powered monitor. Each channel is a two-cabinet system weighing 94kg with two 770mm cabinets and requires a separate rack-mounted master36 amplifier plus a LAN connection for setup, so it is impractical where floor space, weight, or simple self-powered operation matter.

Constraints

Power3600W (3.6kW)
ControlsSources conflict on overall size and weight: PMC (manufacturer) states 770 x 355 x 420m...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The PMC10 XBD is a three-way, four-driver active studio reference monitor built as a dual-cabinet system. A main cabinet holds a 34mm soft-dome tweeter, the PMC75v3 midrange driver, and a 10-inch bass driver, while a second XBD cabinet adds a matching 10-inch bass driver wired in parallel to extend low-frequency output. Both cabinets use PMC's ATL transmission-line loading with LaminairX vents and are powered per channel by a single external PMC master36 DSP/Class-D amplifier supplying 800W to the tweeter, 800W to the midrange, and 1000W to each bass driver, for 3.6kW total. The system accepts analogue and digital inputs up to 192kHz and is configured and room-aligned through the browser-based SoundAlign2 interface over a LAN.
