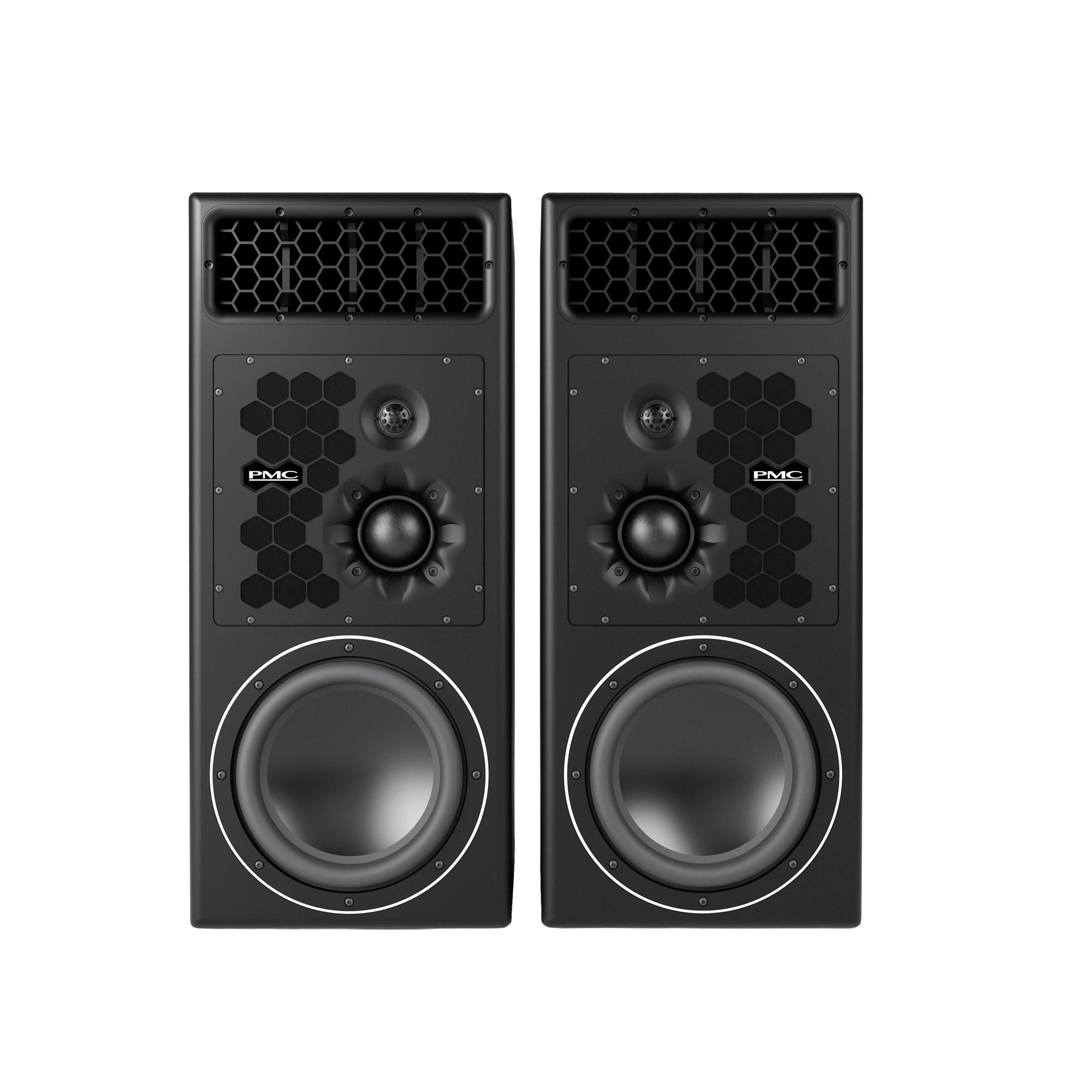

A large PMC PMC12 three-way active studio monitor with a black cabinet, drivers arranged vertically on the front baffle: a 12-inch bass driver, a mid-dome, and a soft-dome tweeter in a waveguide.

PMC 12 — Studio Monitor

$87,350.00
$87,350.00
Skip to product information
A large PMC PMC12 three-way active studio monitor with a black cabinet, drivers arranged vertically on the front baffle: a 12-inch bass driver, a mid-dome, and a soft-dome tweeter in a waveguide.
  • A large PMC PMC12 three-way active studio monitor with a black cabinet, drivers arranged vertically on the front baffle: a 12-inch bass driver, a mid-dome, and a soft-dome tweeter in a waveguide.
  • PMC 12 — Studio Monitor
  • PMC 12 — Studio Monitor
  • PMC 12 — Studio Monitor
  • PMC 12 — Studio Monitor
  • A large PMC PMC12 three-way active studio monitor with a black cabinet, drivers arranged vertically on the front baffle: a 12-inch bass driver, a mid-dome, and a soft-dome tweeter in a waveguide.
  • PMC 12 — Studio Monitor
  • PMC 12 — Studio Monitor
  • PMC 12 — Studio Monitor
  • PMC 12 — Studio Monitor
PMC 12 — Studio Monitor

PMC 12 — Studio Monitor

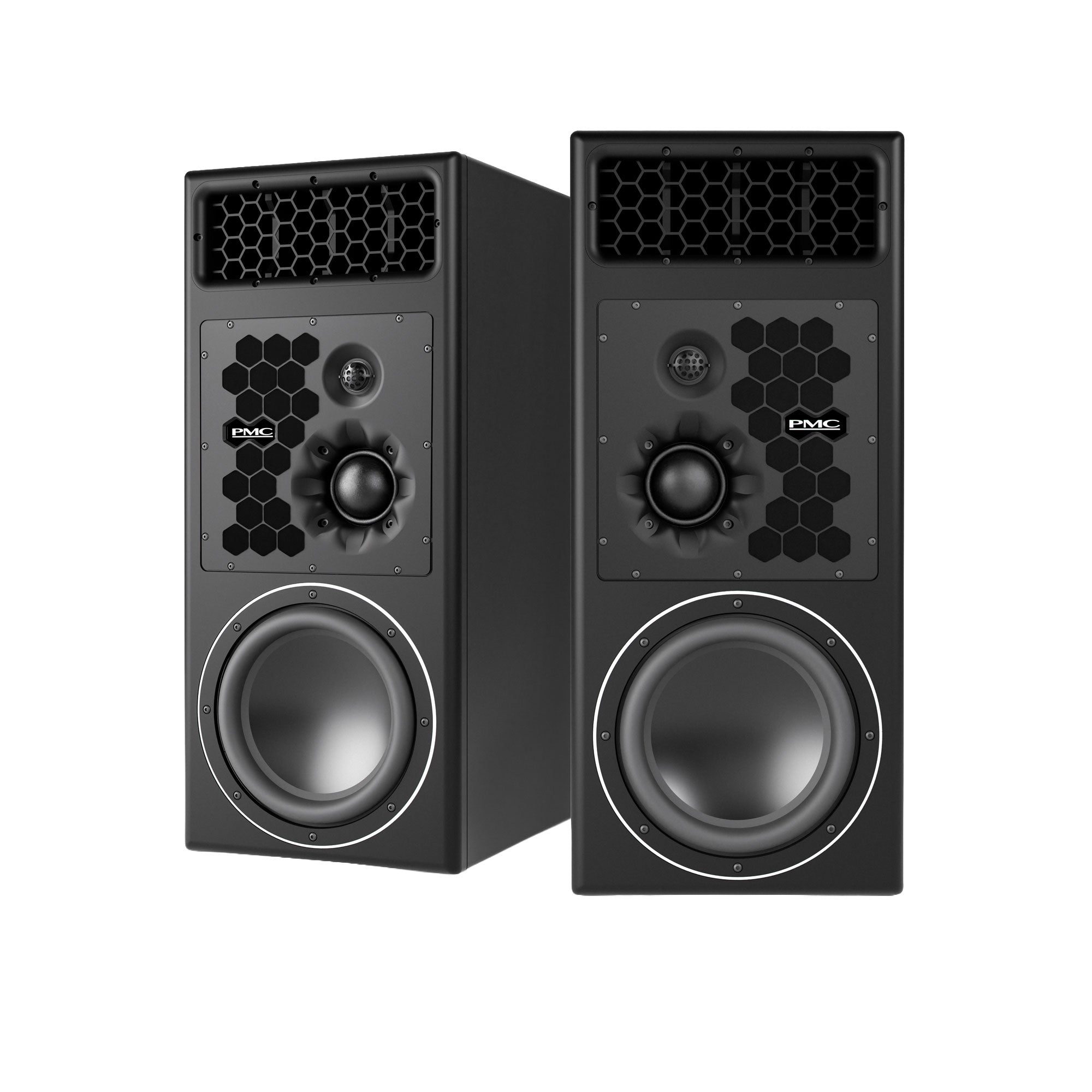

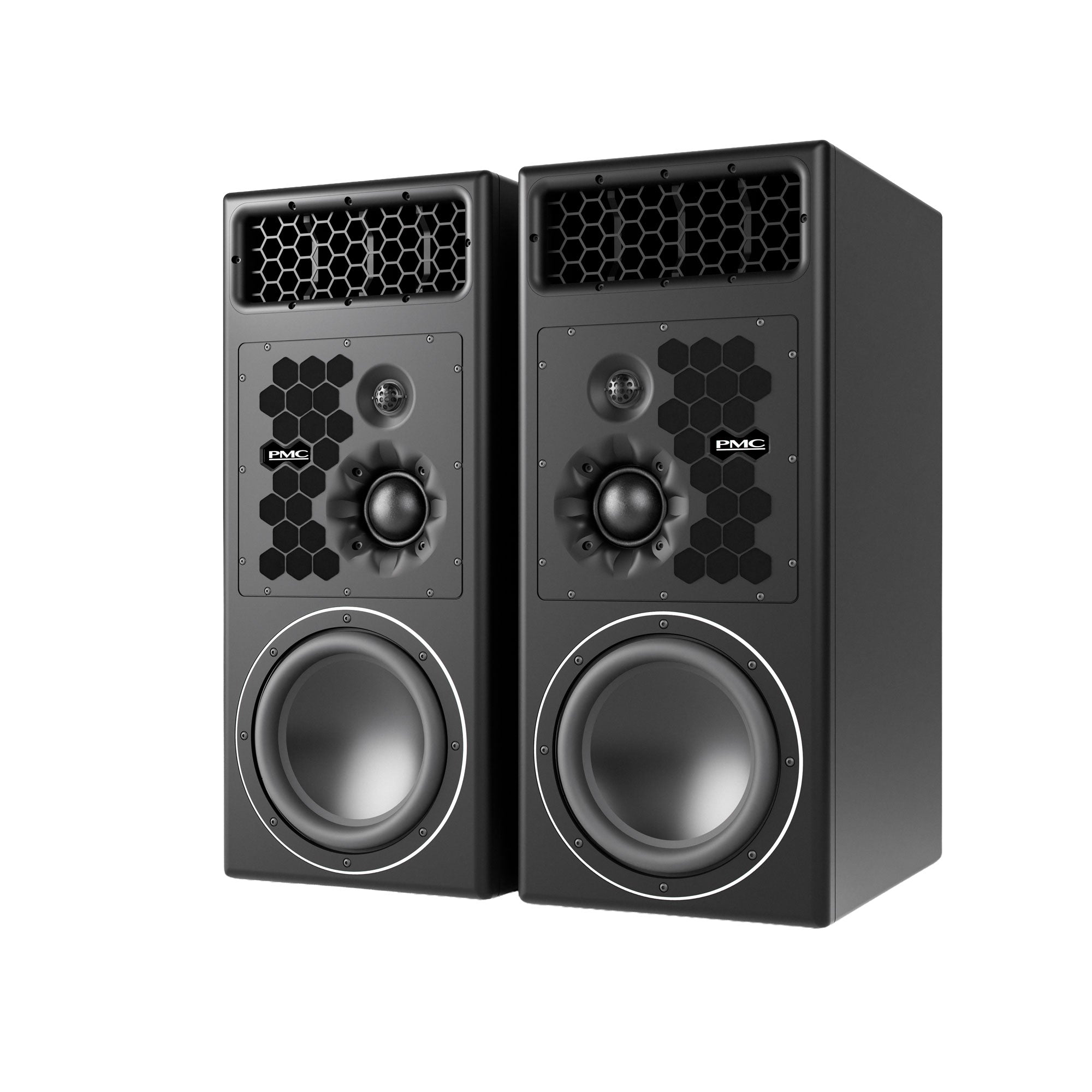

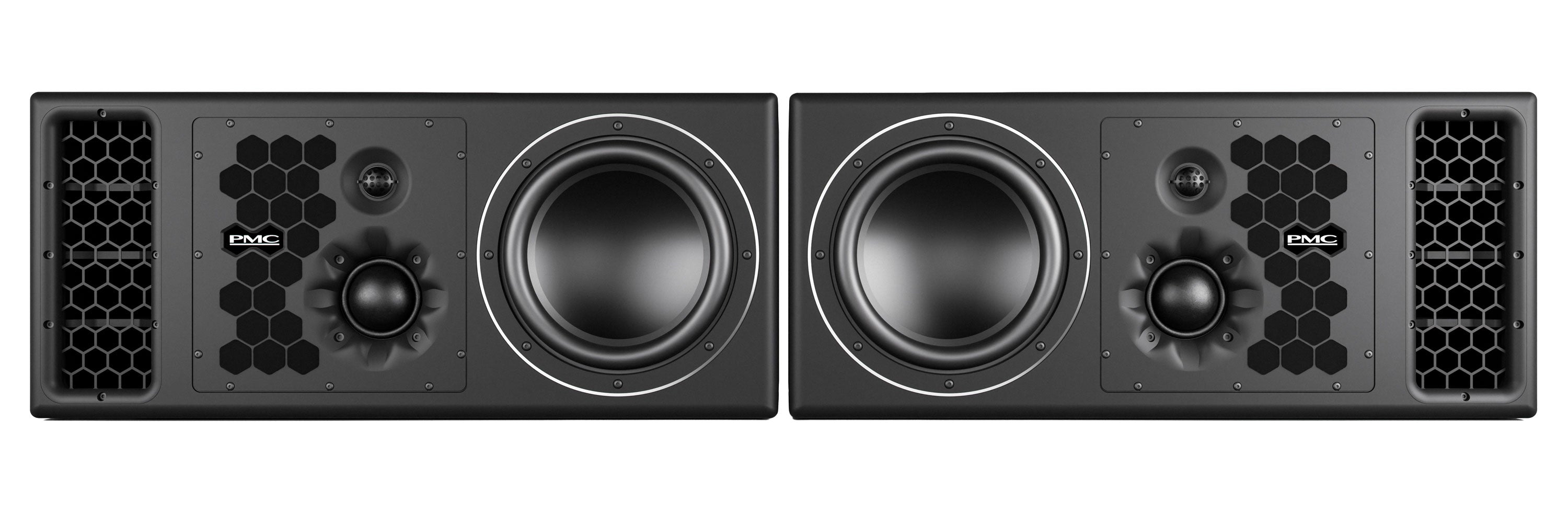

Three-way active studio monitor featuring a 12-inch woofer, PMC75v3 midrange driver, and waveguide-mounted tweeter powered by 2600W master36 DSP platform with analogue/digital inputs to 192kHz and room-alignment EQ via SoundAlign2 software.

$87,350.00
$87,350.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use High-end music recording, mixing and mastering rooms, plus larger broadcast, television and film post-production facilities that need high SPL, deep low-frequency extension and generous headroom.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

3-way ATL active reference monitor · 2600W per cabinet

Overview

Type 3-way ATL active reference monitor
Cabinet Technology Advanced Transmission Line (ATL) with LaminairX venting
Expandability Scales to twin-cabinet XBD configuration

Drive Units

LF (Bass) Driver 12-inch in-house bass driver
LF Driver Detail Double-stacked magnets, 3-inch three-layer voice coil, highly stable suspension
MF (Midrange) Driver 75mm PMC75v3 soft-dome midrange
HF (Tweeter) 34mm hand-built soft-dome tweeter
Waveguide n-compass waveguide

Amplification & DSP

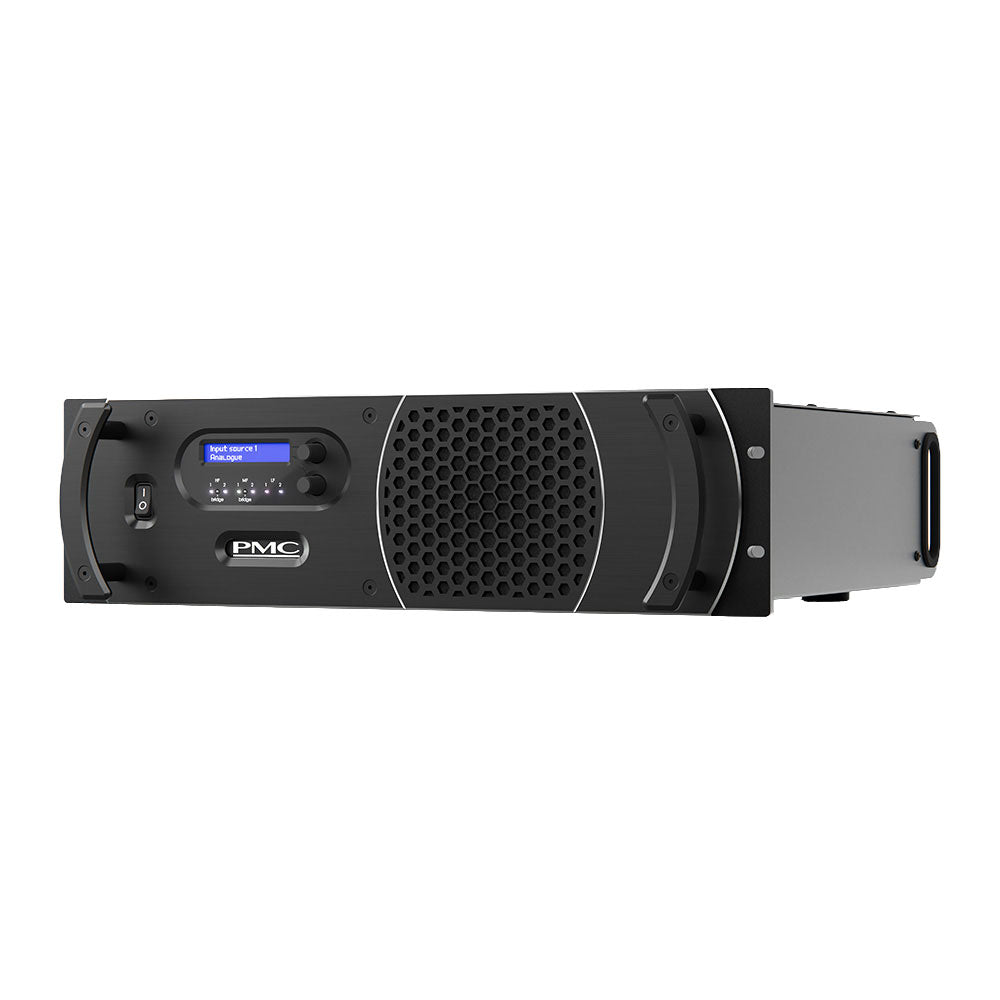

Amplifier Platform PMC master36 rack-mount DSP/power amplifier (one per channel)
Total Power per Cabinet 2600W per cabinet
HF Amplifier Power 800W
MF Amplifier Power 800W
LF Amplifier Power 1000W
Room EQ / DSP SoundAlign2 DSP room-alignment EQ, optimised crossovers and protection

Connectivity

Inputs Analogue & digital inputs
Digital Input Sample Rate Digital input up to 192kHz

Cabinet & Physical

Effective ATL Length 3.5m (11.5ft)
Height 870mm (+10mm LF driver surround)
Width 380mm
Depth 535mm (+10mm LF driver surround)
Weight (per unit) 62kg each

Fit and constraints

High-end music recording, mixing and mastering … · 2600W per cabinet · 380mm

Intended use

Use High-end music recording, mixing and mastering rooms, plus larger broadcast, television and film post-production facilities that need high SPL, deep low-frequency extension and generous headroom. Suits studios building stereo or immersive (e.g. Atmos) main-monitor systems that may later scale to the XBD twin-cabinet configuration.
Not for Home, project and nearfield setups, and anyone in a small room. Each cabinet is 870mm tall and 62kg, and requires the separate master36 rack DSP/amplifier per channel, so it needs the space, structural support and infrastructure of a purpose-built control room.

Constraints

Power2600W per cabinet
Board space380mm
ControlsSources conflict on cabinet size and transmission-line length. The manufacturer (pmc-sp...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The PMC12 is a three-way active reference studio monitor built around PMC's Advanced Transmission Line (ATL) cabinet with LaminairX venting. It combines a 12-inch bass driver, a 75mm PMC75v3 soft-dome midrange, and a 34mm soft-dome tweeter set in an n-compass waveguide, powered by PMC's master36 DSP and amplification platform delivering 2600W per cabinet. It accepts analogue and digital inputs up to 192kHz and provides DSP crossovers and room-alignment EQ through PMC's SoundAlign2 interface. The design scales to a twin-cabinet XBD configuration for greater system output and low-frequency headroom.
