The Roland JD-08 is a Boutique-series digital sound module based on the JD-800 architecture.
Specifications
Sound Engine
| Product type | Boutique digital sound module |
|---|---|
| Basis | JD-800 architecture with four-tone structure and 108 waveforms |
| Presets | 64 original JD-800 presets |
| User memory | 256 sound patches and 128 patterns |
| Effects | Distortion, phaser, spectrum, enhancer, delay, chorus, reverb |
Sequencing and Control
| Sequencer | Two-part 64-step polyphonic sequencer with 8 notes per part |
|---|---|
| Motion recording | Supported |
| Arpeggiator | Onboard arpeggiator |
| Display | 7-segment, 4-character LED |
Connectivity and Power

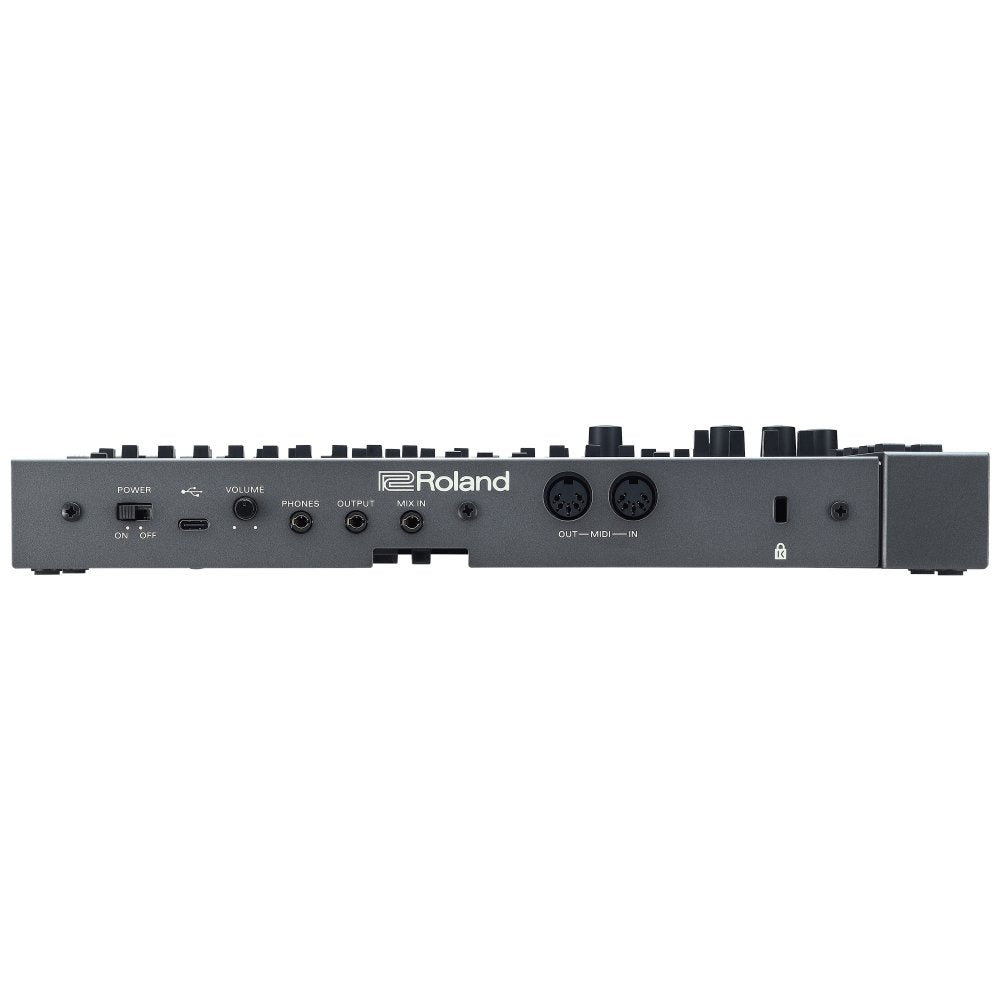

| Connectors | EXT CLOCK IN, PHONES, OUTPUT, MIX IN, MIDI IN/OUT, USB-C audio/MIDI |
|---|---|
| Power | USB bus power or 4 AA Ni-MH/alkaline batteries |
| Battery life | Approximately 6 hours with 1,900 mAh Ni-MH batteries |
| Included accessories | Quick Start, safety leaflet, 4 AA alkaline batteries |
Fit and constraints
Intended use
Constraints
To use it
Questions
What firmware, software, storage, and synchronization features are supported by this exact model?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Which power supply, adapters, and included accessories ship with the retailer offer?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
The Roland JD-08 is a Boutique-series digital sound module based on the JD-800 architecture. Roland lists 64 original JD-800 presets, a four-tone structure, 108 waveforms, 256 sound patch memories, 128 pattern memories, two-part multitimbral capability, a two-part 64-step polyphonic sequencer with eight notes per part, motion recording, arpeggiator, 7-segment 4-character LED display, and effects including distortion, phaser, spectrum, enhancer, delay, chorus, and reverb. Connectivity includes external clock in, phones, output, mix in, full-size MIDI in/out, and USB-C audio/MIDI. It can run from USB bus power or four AA batteries and includes a built-in speaker. Size is 300 x 128 x 49 mm and weight with batteries is 840 g.
