ROYER R-122 MKII Matched Pair/SS1 — Microphone
ROYER R-122 MKII Matched Pair/SS1 — Microphone

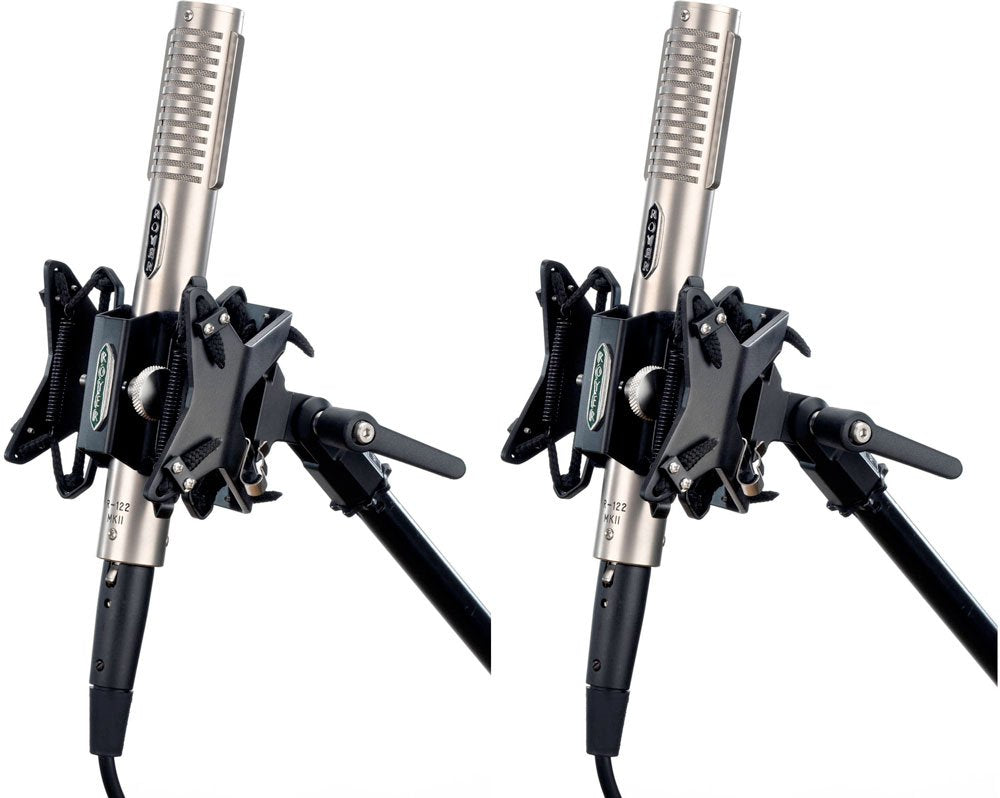

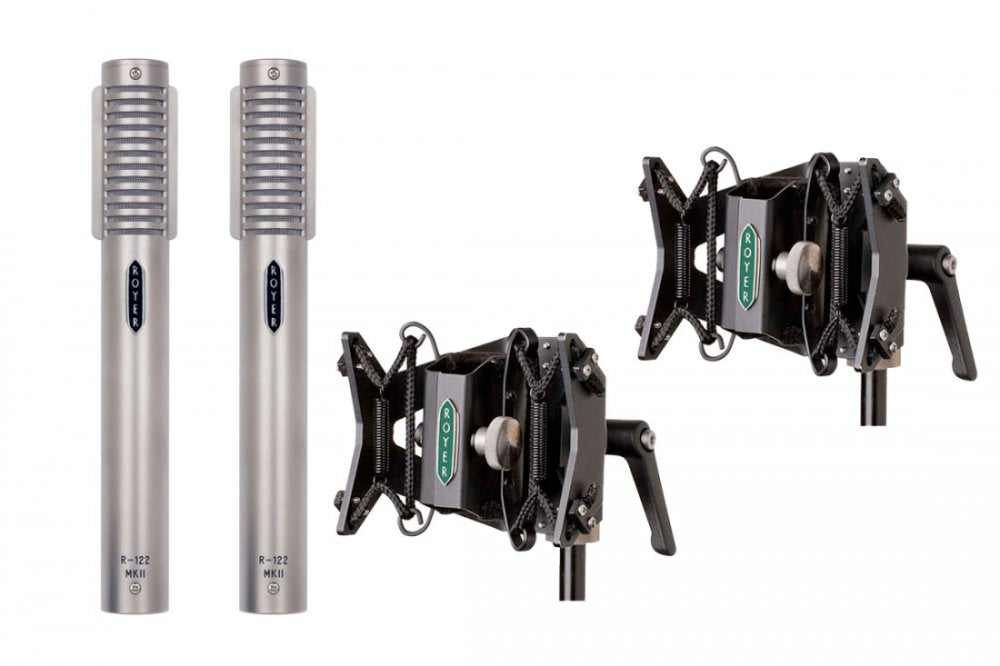

Royer R-122 MKII Matched Pair/SS1 is a matched-pair bundle based on two R-122 MKII active ribbon microphones with SS1-style suspension shockmount accessories.
Specifications
Microphone Type
| Bundle configuration | Matched pair with SS1-style suspension shockmounts |
|---|---|
| Microphones included | 2 x R-122 MKII active ribbon microphones |
| Operating principle | Electrodynamic pressure-gradient active ribbon |
| Polar pattern | Figure-8 |
Ribbon and Electronics
| Ribbon element | 2.5-micron aluminum ribbon |
|---|---|
| Magnets | Rare-earth neodymium |
| Electronics | Phantom-powered active impedance-matching electronics |
| Transformer | Royer-designed toroidal transformer |
Controls and Response
| Pad | Switchable -15 dB pad before electronics |
|---|---|
| Bass cut | Switchable 100 Hz bass-cut filter, 6 dB/octave |
| Frequency response | 30 Hz to 15 kHz |
| Rear side response | Back side is slightly brighter than front at distances of three feet and closer |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Royer R-122 MKII Matched Pair/SS1 is a matched-pair bundle based on two R-122 MKII active ribbon microphones with SS1-style suspension shockmount accessories. Royer describes the R-122 MKII as a phantom-powered active ribbon microphone with impedance-matching electronics, a switchable -15 dB pad and switchable bass-cut filter. With pad and filter disengaged, the MKII operates like the original R-122; the pad is placed before the electronics for high-SPL sources and the bass-cut filter starts at 100 Hz with a 6 dB/octave slope. Published R-122 MKII specifications include figure-8 polar pattern, 2.5-micron aluminum ribbon, rare-earth neodymium magnets, 30 Hz-15 kHz frequency response, active electronics and high-output operation. Public manufacturer pages did not expose a bundle GTIN or exact matched-pair MPN.
