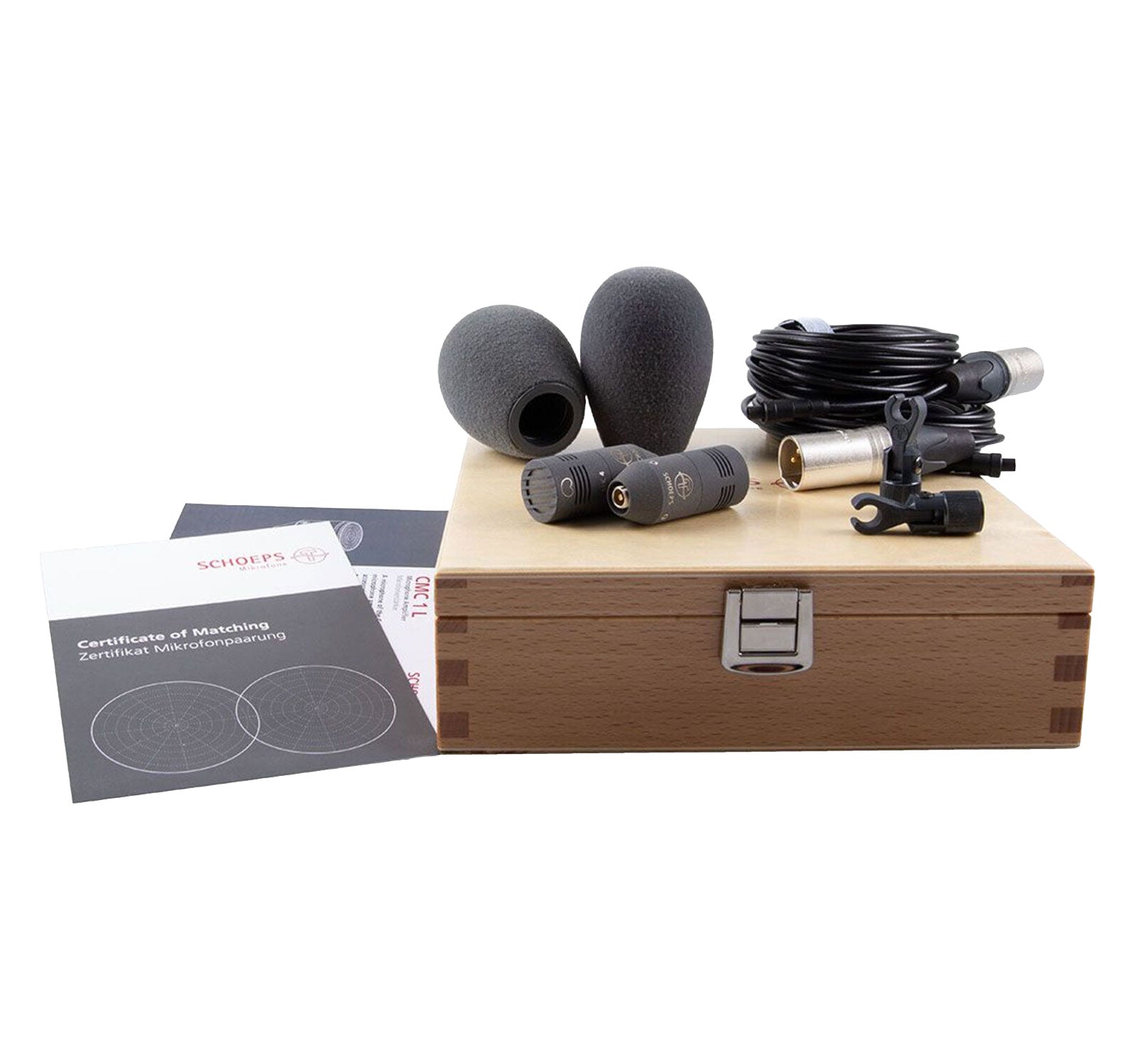

Two small black microphones with foam windshields, cables, clips, certificate, and wooden box on a white background.

SCHOEPS CMC1L w/ MK4 - Stereo Set — Microphone

$5,845.00
$5,845.00
Skip to product information
Two small black microphones with foam windshields, cables, clips, certificate, and wooden box on a white background.
  • Two small black microphones with foam windshields, cables, clips, certificate, and wooden box on a white background.
  • Two small black microphones with foam windshields, cables, clips, certificate, and wooden box on a white background.
SCHOEPS CMC1L w/ MK4 - Stereo Set — Microphone

SCHOEPS CMC1L w/ MK4 - Stereo Set — Microphone

SCHOEPS CMC1L w/ MK4 Stereo Set is a Colette-series matched stereo microphone set built from two CMC 1 L miniature microphone amplifiers and two matched MK 4 cardioid capsules.

$5,845.00
$5,845.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Stereo acoustic, classical, ensemble, spot-mic and location recording where a compact matched cardioid small-diaphragm condenser pair is needed.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Matched Colette-series stereo microphone set · P48 / 30-52 V or P12 / 11-13 V

Set Configuration

Set type Matched Colette-series stereo microphone set
Microphones included 2 x CMC 1 L microphone amplifiers and 2 x matched MK 4 capsules
Included accessories Certificate of matching, 2 x SGC stand clamps, 2 x B 5 D hollow foam windscreens, K 5 LU cables, cable strap and case
Manufacturer order number 139305 for Stereo-Set CMC 1 L + MK 4

CMC 1 L Amplifier

Amplifier output Lemo, analog, 1 channel
Phantom power P48 / 30-52 V or P12 / 11-13 V
Current consumption 2 mA at P48; 3 mA at P12
Output impedance 50 ohms ±1 ohm, 8 Hz-50 kHz
Max spl with mk4 135 dB SPL at P48, THD <0.5%

MK 4 Capsule

Capsule type Small-diaphragm condenser capsule
Pickup pattern Cardioid
Frequency range 40 Hz to 26 kHz
Sensitivity 15 mV/Pa, -36.5 dB V/Pa
Equivalent noise 14 dB-A; 24 dB CCIR

Fit and constraints

Stereo acoustic, classical, ensemble, spot-mic … · P48 / 30-52 V or P12 / 11-13 V

Intended use

Use Stereo acoustic, classical, ensemble, spot-mic and location recording where a compact matched cardioid small-diaphragm condenser pair is needed.
Not for Users needing omni, wide-cardioid or supercardioid pickup, built-in XLR outputs without Lemo adapter cabling, or a large-diaphragm stereo pair.

Constraints

PowerP48 / 30-52 V or P12 / 11-13 V
ControlsPublic GTIN was not verified. Retail listings may use STEREO SET 1L4 while SCHOEPS also...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

SCHOEPS CMC1L w/ MK4 Stereo Set is a Colette-series matched stereo microphone set built from two CMC 1 L miniature microphone amplifiers and two matched MK 4 cardioid capsules. SCHOEPS lists the CMC 1 L stereo set as including selected matched capsules, a certificate of matching, SGC stand clamps, B 5 D hollow foam windscreens, K 5 LU Lemo-to-XLR cables, cable strap and case. The CMC 1 L amplifier uses a miniature Lemo analog output, works from P48 or P12 phantom power, draws 2 mA at P48, and measures 25.5 mm x 20 mm at 28 g. The MK 4 capsule is a cardioid small-diaphragm condenser capsule with 40 Hz-26 kHz frequency range, 15 mV/Pa sensitivity, 14 dB-A equivalent noise, and 135 dB SPL maximum with CMC 1.
