SCHOEPS ORTF Surround Outdoor Set Heated — Microphone
SCHOEPS ORTF Surround Outdoor Set Heated — Microphone
Four-channel surround-ambience system using CCM 41 L supercardioid microphones in rectangular ORTF pattern, supplied with heated windshield, multicore cable, splitter with integrated heating, and waterproof case for outdoor 360-degree recording.
Specifications
Set Contents & Configuration
| Microphones | 4x SCHOEPS CCM 41 L supercardioids |
|---|---|
| Channels | 4-channel |
| Array Arrangement | Rectangular ORTF Surround |
| Windshield | WSC ORTF Surround H (heated) |
| Multicore Cable (per manufacturer) | K Surround 5 M (5 m, per SCHOEPS) |
| Multicore Cable (per retailer) | K Surround 20 M (20 m, per Economik / Pro Audio Solutions) |
| Splitter Cable | AK Surround H M/4U (with heating supply) |
| Transport Case | Waterproof MAX case (No. 222003) |
| Manufacturer Order Number | No. 175204 |

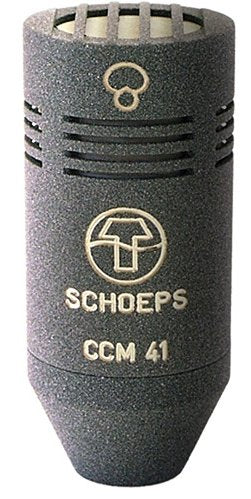

Microphone (CCM 41 L)
| Polar Pattern | Supercardioid |
|---|---|
| Output Connector | Lemo (CCM-L) |
| Powering | P48 phantom (>40 V) |
| Maximum SPL | 136 dB-SPL (P48) |
| Output Impedance | 90 ohm @ 1 kHz |
| Maximum Output Voltage | 2.6 V (8.3 dBV) |
| Low-Cut Filter | 20 Hz, 12 dB/oct |
| Current Consumption | 4 mA (P48) |
| Diameter | 20 mm |
| Length | 46 mm (CCM-L) |
| Weight (per microphone) | 45 g (CCM-L) |
Electroacoustic (MK 41 capsule)
| Frequency Range | 40 Hz - 26 kHz |
|---|---|
| Sensitivity | 16 mV/Pa |
| Equivalent Noise Level (A-weighted) | 14 dB(A) |
| Equivalent Noise Level (CCIR) | 23 dB (CCIR) |
| Signal-to-Noise Ratio (A-weighted) | 80 dB(A) |
Features & Use
| Internal Heating | Internal heating included |
|---|---|
| Intended Applications | Outdoor surround ambience (sports, film) |
| Imaging | 360-degree surround imaging |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

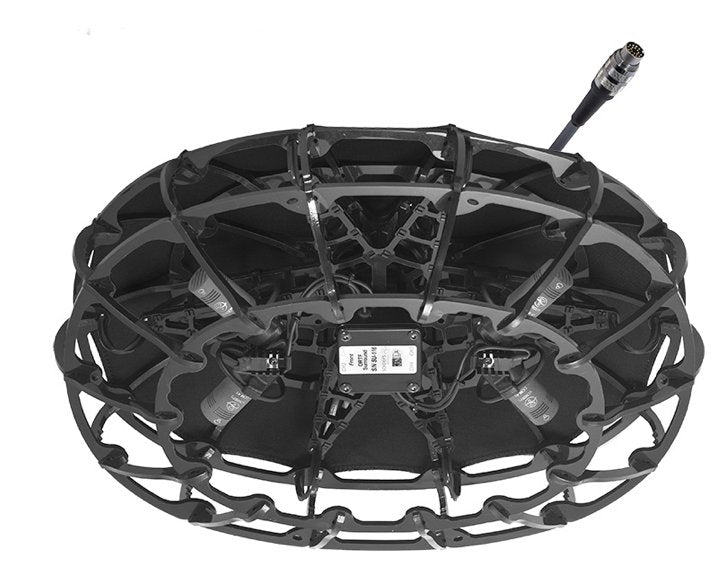

The SCHOEPS ORTF Surround Outdoor Set Heated is a four-channel surround-ambience microphone system built around four CCM 41 L supercardioid compact microphones arranged in a rectangular ORTF Surround pattern. It ships as an outdoor plug-and-play package with the WSC ORTF Surround H windshield that integrates elastic suspensions, a fur cover, and internal heating to prevent condensation and icing during cold or wet outdoor use. Signal is carried over a multi-way Binder multicore cable to an AK Surround H splitter that also supplies the heating, and the components are stored in a waterproof MAX transport case. It is intended for capturing 360-degree surround ambience at applications such as sporting events and film sound.
