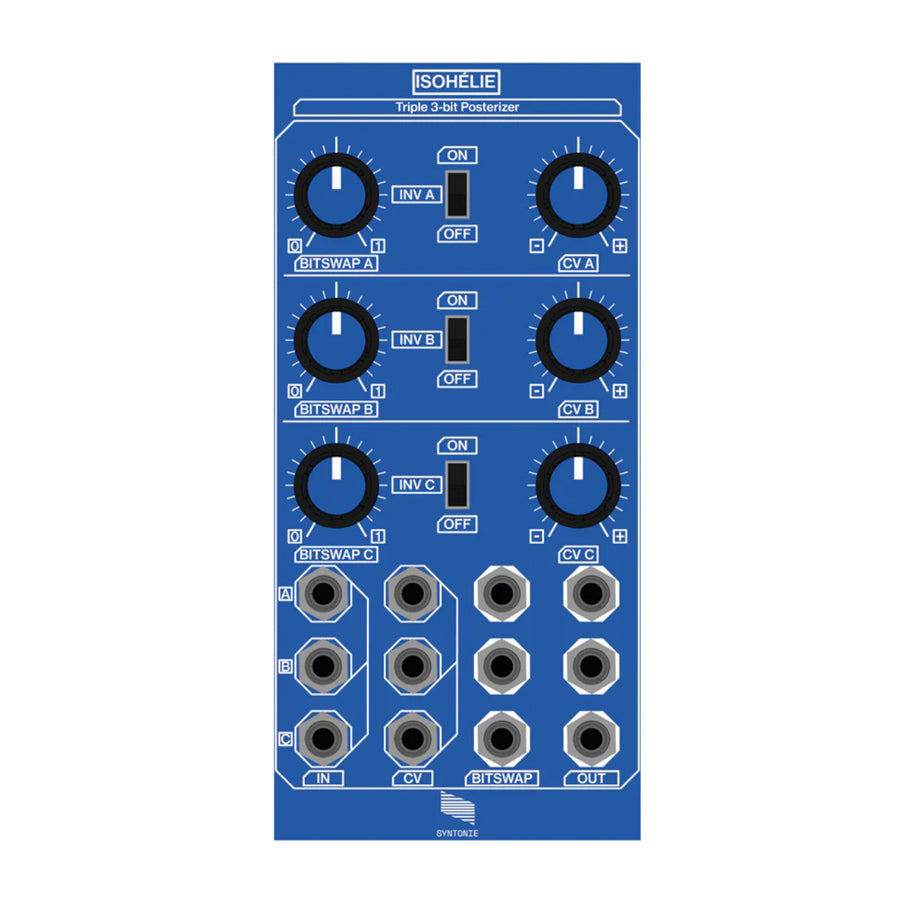

Blue eurorack module with knobs, toggle switches, and multiple 1/8 inch jacks labeled IN, CV, BITSWAP, and OUT.

Syntonie Isohélie

$679.00
$679.00
Skip to product information
Blue eurorack module with knobs, toggle switches, and multiple 1/8 inch jacks labeled IN, CV, BITSWAP, and OUT.
  • Blue eurorack module with knobs, toggle switches, and multiple 1/8 inch jacks labeled IN, CV, BITSWAP, and OUT.
  • Blue eurorack module with knobs, toggle switches, and multiple 1/8 inch jacks labeled IN, CV, BITSWAP, and OUT.
Syntonie Isohélie

Syntonie Isohélie

$679.00
$679.00
Condition Brand New
Checked against 1 listing
Verified
Requires compatible power and data connections, monitoring or MIDI setup as required
In stock Ask a question

Fit and constraints

Intended use

Constraints

To use it

Required compatible power and data connections, monitoring or MIDI setup as required

Questions

3 to ask before buying

What firmware, software, storage, and synchronization features are supported by this exact model?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Which power supply, adapters, and included accessories ship with the retailer offer?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Syntonie Isohélie is a Eurorack module that quantizes RGB video signals into 8 color levels per channel, reducing full RGB signals to 512 possible colors. A bitswap function rearranges the three bit channels before summing, creating colorization effects controllable at video rates. The module accepts 0-1V video and CV inputs with 499-ohm impedance, offers normalized inputs across all three channels, and operates from standard Eurorack power or DC barrel connector. It measures 12HP wide by 42mm deep and draws 230mA at +12V.

Seller notes: Syntonie Isohélie. SYNTONIE ISOHELIE.
