TELEFUNKEN U48 Stereo Set — Microphone

$29,895.00
$29,895.00
Skip to product information
Matched pair of TELEFUNKEN U48 large-diaphragm tube condenser microphones, each a long cylindrical body with grille headbasket and red polar-pattern badge, shown with dual power supply and included accessories.
  • Matched pair of TELEFUNKEN U48 large-diaphragm tube condenser microphones, each a long cylindrical body with grille headbasket and red polar-pattern badge, shown with dual power supply and included accessories.
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • Matched pair of TELEFUNKEN U48 large-diaphragm tube condenser microphones, each a long cylindrical body with grille headbasket and red polar-pattern badge, shown with dual power supply and included accessories.
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
  • TELEFUNKEN U48 Stereo Set — Microphone, studio recording microphone body
TELEFUNKEN U48 Stereo Set — Microphone

TELEFUNKEN U48 Stereo Set — Microphone

$29,895.00
$29,895.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios and engineers recording stereo sources — orchestral, chamber, choir, piano, drum overheads, room ambience — who want a factory-matched pair of U47-style tube microphones.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Large-diaphragm vacuum tube condenser microphone (matched pair) · External power supply (M 940HS dual supply in stereo set)

General

Type Large-diaphragm vacuum tube condenser microphone (matched pair)
Polar Patterns Cardioid, Figure-8
Capsule TELEFUNKEN M7, center-terminated large diaphragm
Vacuum Tube TELEFUNKEN Elektroakustik VF14K
Output Transformer TELEFUNKEN Elektroakustik BV8
Pair Matching Hand-selected components; capsules tuned to each other; transformers and tubes tested for matched gain and frequency response

Performance (per microphone)

Frequency Range 20 Hz – 20 kHz, ±3 dB
Sensitivity 24.5 mV/Pa, ±1 dB
THD @ 1 kHz at 1 Pa < 0.3%
Output Impedance 200 Ω
Maximum SPL (1% THD) 127 dB
Signal-to-Noise Ratio 85 dBA
Self Noise 9 dBA

Physical (per microphone)

Dimensions 240 mm length × 60 mm diameter
Weight 620 g
Power Source External power supply (M 940HS dual supply in stereo set)

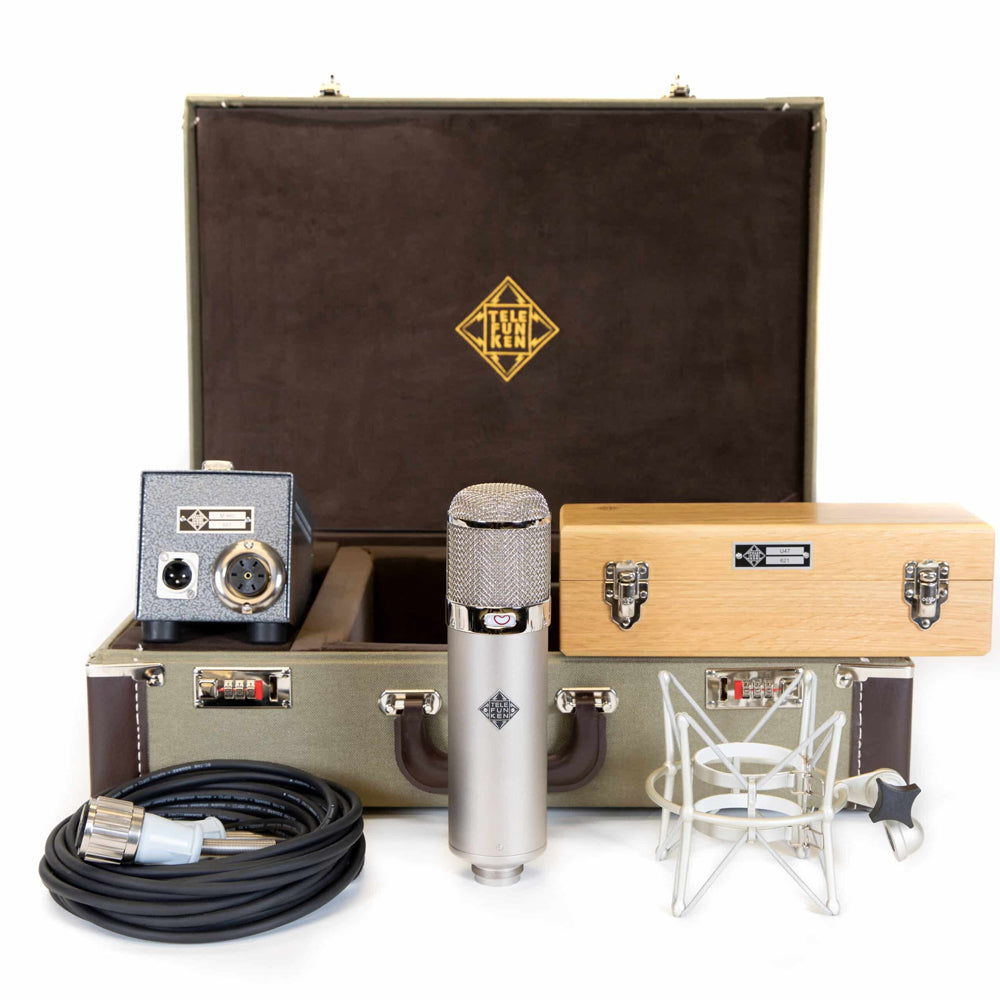

In the Box

Microphones 2 × matched U48 tube condenser microphones

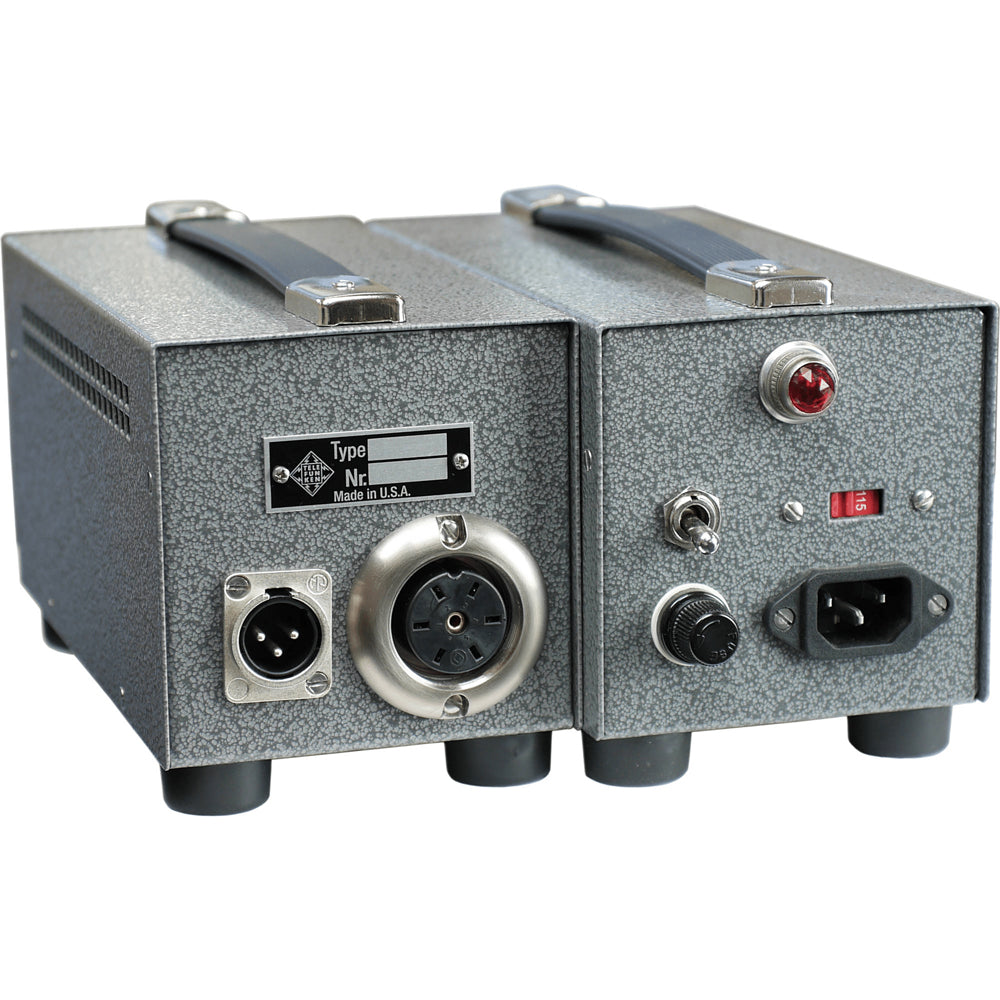

Power Supply M 940HS dual-channel power supply (powers both microphones)

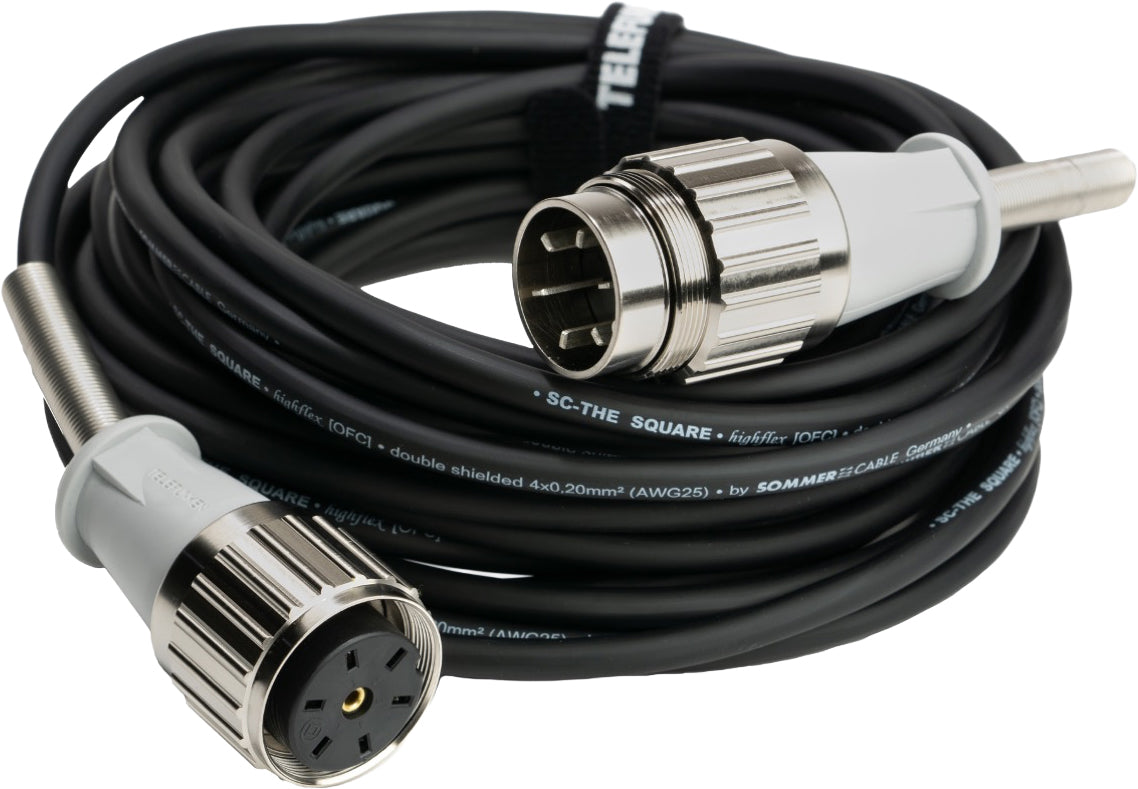

Cables 2 × M 840TH Sommer tube microphone cables, 10 m

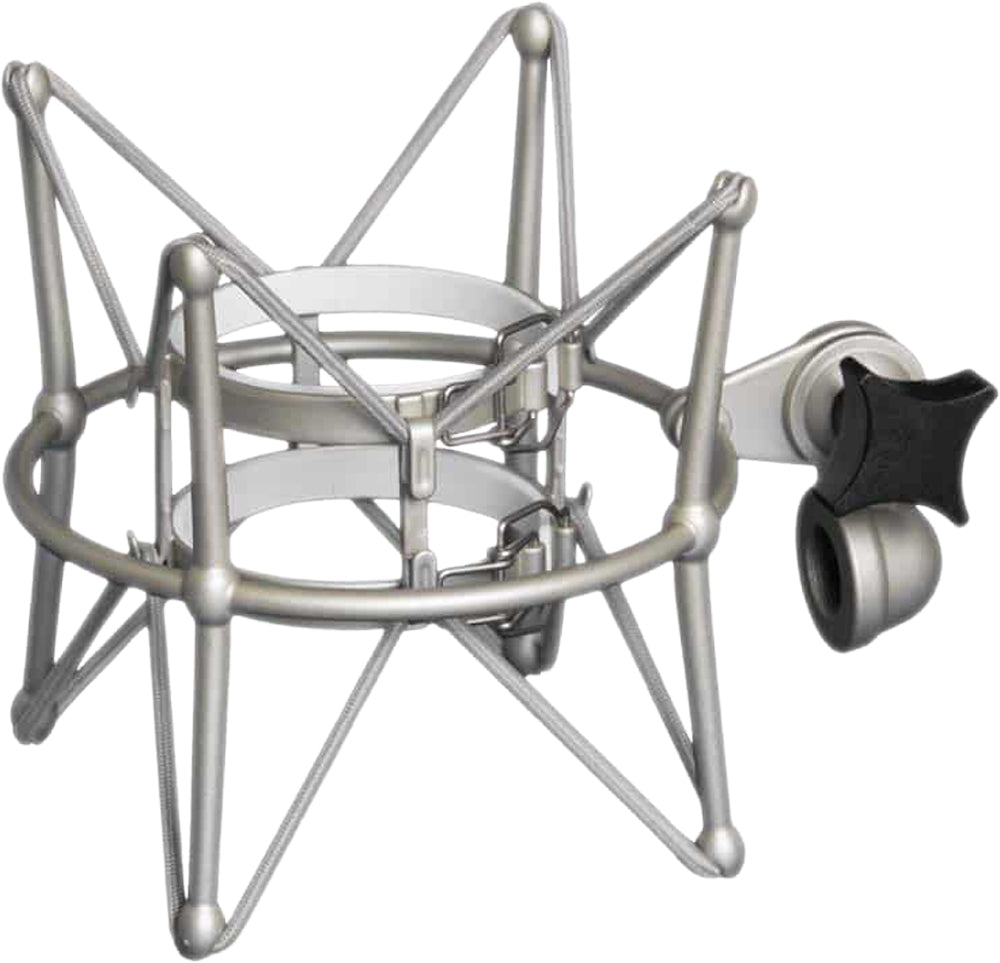

Shock Mounts 2 × M 740 elastic shock mounts
Storage 2 × WB40 wooden microphone boxes; FC40S locking flight case

Fit and constraints

Studios and engineers recording stereo sources … · External power supply (M 940HS dual supply in stereo set)

Intended use

Use Studios and engineers recording stereo sources — orchestral, chamber, choir, piano, drum overheads, room ambience — who want a factory-matched pair of U47-style tube microphones. The cardioid + figure-8 pattern set makes it directly usable for Blumlein and mid-side (M/S) arrays as well as X/Y and spaced-pair techniques.
Not for Anyone who needs an omnidirectional pattern for stereo work — the U48 offers cardioid and figure-8 only, whereas Telefunken's U47 pairs cardioid with omni. Also skip if you need phantom-powered, grab-and-go mics: each U48 requires the dedicated external power supply and special 10 m tube cable, and each mic weighs 620 g at 240 mm long. Buyers who only ever record mono sources are paying for matching they won't use.

Constraints

PowerExternal power supply (M 940HS dual supply in stereo set)
ControlsThe Economik listing was marked currently unavailable at research time — confirm stock/...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The TELEFUNKEN U48 Stereo Set is a matched pair of U48 large-diaphragm vacuum tube condenser microphones intended for stereo recording. Each U48 uses TELEFUNKEN's historically accurate M7 center-terminated capsule, VF14K vacuum tube, and BV8 output transformer, and offers two polar patterns: cardioid and figure-8. Components in the two microphones are hand-selected, with capsules tuned to each other and transformers and tubes tested for matched gain and frequency response, supporting techniques such as X/Y, A/B spaced pair, Blumlein, and mid-side (M/S). The set includes an M 940HS dual power supply that powers both microphones, two 10 m Sommer M 840TH tube microphone cables, two M 740 shock mounts, two WB40 wooden boxes, and an FC40S locking flight case.
