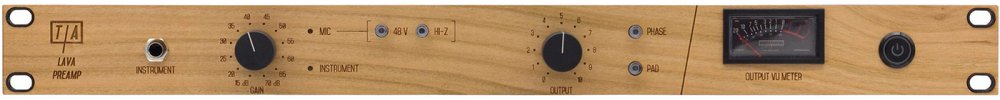

A single-channel analog preamplifier with a natural cherry wood front panel, a round analog VU meter, a large stepped gain control knob, and gold-plated connectors.

TIERRA AUDIO Lava Preamp — Preamp / DI

$24,995.00
$24,995.00
Skip to product information
A single-channel analog preamplifier with a natural cherry wood front panel, a round analog VU meter, a large stepped gain control knob, and gold-plated connectors.
  • A single-channel analog preamplifier with a natural cherry wood front panel, a round analog VU meter, a large stepped gain control knob, and gold-plated connectors.
  • TIERRA AUDIO Lava Preamp — Preamp / DI
  • TIERRA AUDIO Lava Preamp — Preamp / DI
  • A single-channel analog preamplifier with a natural cherry wood front panel, a round analog VU meter, a large stepped gain control knob, and gold-plated connectors.
  • TIERRA AUDIO Lava Preamp — Preamp / DI
  • TIERRA AUDIO Lava Preamp — Preamp / DI
TIERRA AUDIO Lava Preamp — Preamp / DI

TIERRA AUDIO Lava Preamp — Preamp / DI

Handmade Madrid preamp with selectable mic impedance (300Ω or 1200Ω), +15 to +70 dB gain, Carnhill transformers, cherry wood chassis, and front-panel VU meter for studio tracking and DI work.

$24,995.00
$24,995.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Recording engineers and boutique studios wanting a single-channel, all-analog, transformer-coupled mic/instrument preamp with a wide +15 to +70 dB gain range and audible transformer character.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Single-channel analog microphone / instrument preamplifier · Selectable 110 V AC 60 Hz or 220 V AC 50 Hz

Overview

Type Single-channel analog microphone / instrument preamplifier
Channels 1 (mono)
Country of manufacture Handmade in Madrid, Spain
Design character Handmade analog electronics with a slow transient response

Gain & Output Level

Gain range +15 dB to +70 dB (in 5 dB steps)
Maximum output +20 dBu (max. 0.1% THD)
THD Less than 0.03% at +4 dBu output (20 Hz – 20 kHz)

Audio Performance

Frequency response 20 Hz to 20 kHz (-0.5 dB at 20 Hz and 20 kHz)
Signal-to-noise ratio 102 dB (20 Hz – 20 kHz)
Noise floor Less than -86 dBu

Input & Output Impedance

Microphone input impedance 300 Ω, or 1200 Ω when HI-Z is activated
Instrument input impedance 400 kΩ
Output impedance Less than 80 Ω, transformer balanced and earth-free

Components & Construction

Transformers Carnhill transformers
Line input transformer Lundahl input transformer on the line input
Metering SIFAM VU meter
Connectors Gold-plated connectors
Chassis material Pure cherry wood

Power & Environmental

Mains voltage Selectable 110 V AC 60 Hz or 220 V AC 50 Hz
Fuse 500 mA
Operating temperature 0 to 40 °C (32 to 104 °F)

Warranty & Inclusions

Warranty 5 years
Documentation Certificate of Authenticity and Quality, hand-sealed and signed with quality-control measurements

Fit and constraints

Recording engineers and boutique studios wantin… · Selectable 110 V AC 60 Hz or 220 V AC 50 Hz

Intended use

Use Recording engineers and boutique studios wanting a single-channel, all-analog, transformer-coupled mic/instrument preamp with a wide +15 to +70 dB gain range and audible transformer character. The high maximum gain and switchable HI-Z make it well suited to low-output ribbon and dynamic microphones, while the 400 kΩ instrument input allows direct recording of guitar or bass.
Not for Anyone needing multiple channels, stereo operation, built-in A/D conversion, or a compact/rack-standard footprint. Buyers who require confirmed 48 V phantom power, published dimensions/weight, or a documented MPN/GTIN before purchase, and budget-conscious buyers, should skip or verify first.

Constraints

PowerSelectable 110 V AC 60 Hz or 220 V AC 50 Hz
ControlsSource conflict on input count and transformers: retailers describe it as a two-input m...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Tierra Audio Lava Preamp is a single-channel analog microphone and instrument preamplifier handmade in Madrid, Spain. It provides gain from +15 dB to +70 dB in 5 dB steps and a maximum output of +20 dBu, with a selectable microphone input impedance of 300 Ω or 1200 Ω (HI-Z) and a 400 kΩ instrument input. The signal path uses Carnhill transformers and delivers a transformer-balanced, earth-free output of less than 80 Ω. The front panel carries a SIFAM VU meter and gold-plated connectors, and the chassis is built from pure cherry wood. It runs on selectable 110 V/60 Hz or 220 V/50 Hz mains power.
