Tonelux JC37 Stereo is a stereo-pair package of the JC37 side-address tube condenser microphone system designed by Joe Chiccarelli.
Specifications
Microphone
| Type | Side-address vacuum tube condenser microphone |
|---|---|
| Pickup pattern | Cardioid |
| Transducer | 37 mm single-diaphragm transducer |
| Tube type | JAN-GE5654W |
| Output | Transformer output |
Audio Specifications
| Frequency response | 30 Hz to 20 kHz |
|---|---|
| Sensitivity | 2 mV/Pa |
| Signal to noise | 68 dB |
| Output impedance | 200 ohm |
| Max spl | 140 dB |

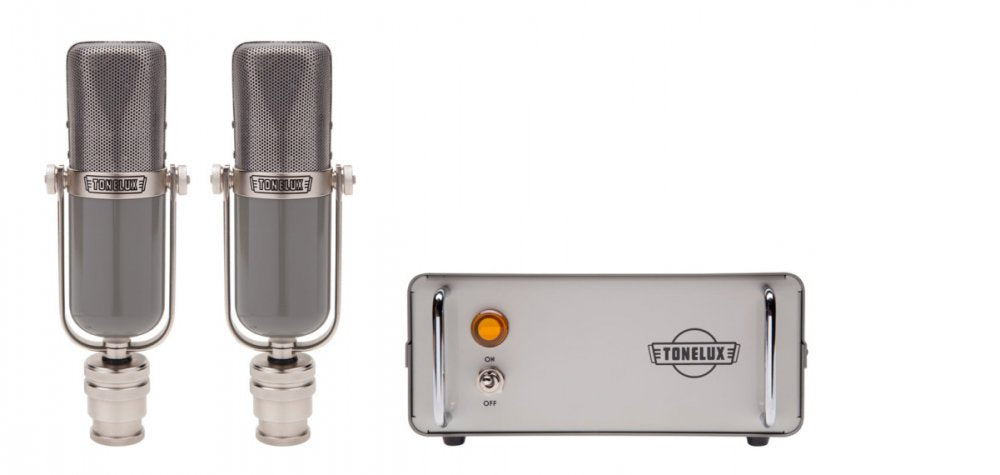

Stereo Package
| Included microphones | 2 JC37 microphones |
|---|---|
| Cables | Integrated 3-meter cables |

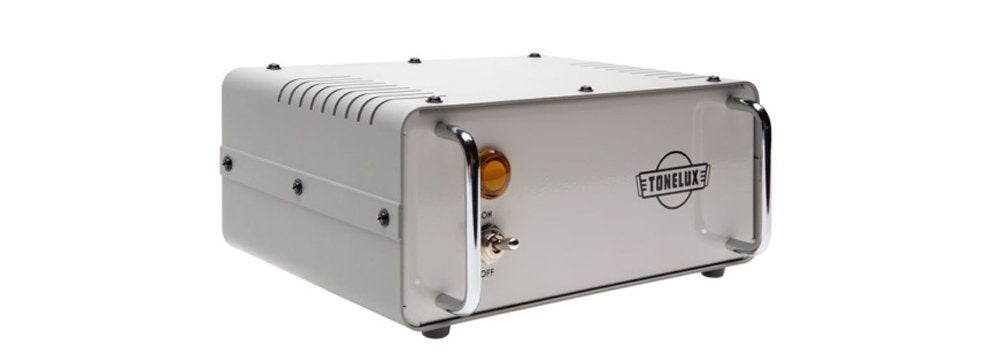

| Power supply | Tonelux Universal Microphone Power Supply capable of powering two microphones |
| Case | Carrying case for two microphones and PSU |
| Mounts | Mic stand mounts included |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Tonelux JC37 Stereo is a stereo-pair package of the JC37 side-address tube condenser microphone system designed by Joe Chiccarelli. Tonelux states the design was inspired by the Sony C37a concept and uses a vacuum-tube-buffered 37 mm single-diaphragm transducer with transformer output, while omitting the original microphone’s pattern, frequency-response, output-impedance, and level selectors for a simpler path. The stereo package includes two microphones, integrated 3-meter cables, stand mounts, a Tonelux Universal Microphone Power Supply capable of powering both microphones, and a carrying case. Published microphone specifications include cardioid pickup pattern, 30 Hz to 20 kHz response, 2 mV/Pa sensitivity, 68 dB signal-to-noise ratio, 200 ohm output impedance, 140 dB max SPL, and JAN-GE5654W tube type.
