TRINNOV AUDIO NOVA Processor — Monitor Controller
TRINNOV AUDIO NOVA Processor — Monitor Controller

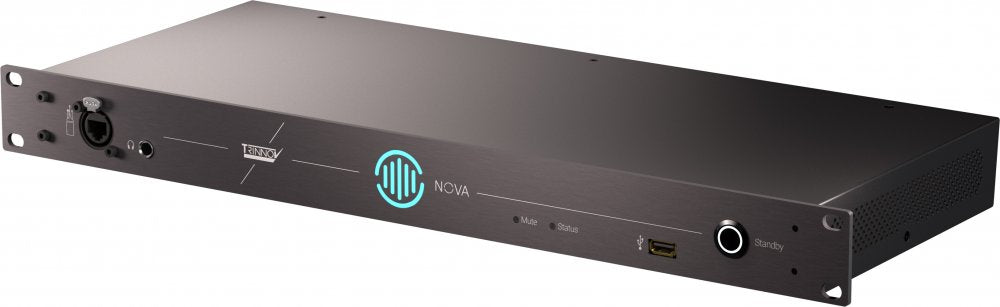

Trinnov Audio NOVA is a 1U professional studio monitor controller and room optimizer. Trinnov describes it as a monitoring backbone for speaker calibration, source switching and loudspeaker correction, with 2 Optimizer licenses included and software expansion available up to 6 optimized channels.
Specifications
Format
| Product type | Studio monitor controller and room optimizer |
|---|---|
| Rack format | 1U rackmount with fixed rack ears |
| Optimizer licenses | 2 channels included; upgradeable up to 6 optimized channels |
Audio I/O
| Analog inputs | 4 balanced 6.35 mm TRS inputs and 2 balanced XLR inputs |
|---|---|
| Analog outputs | 6 balanced XLR outputs |
| Digital inputs | 1 optical ADAT or S/PDIF input and 1 coaxial S/PDIF input |
| Digital outputs | 1 AES3 XLR stereo output |
| Network audio | Dante 16 input / 16 output over Ethernet |
Conversion and Processing
| Adc dac | 24-bit / 192 kHz ADC and DAC |
|---|---|
| Dynamic range | 115 dB A-weighted A/D and D/A dynamic range, ref. +18 dBu |
| Processing | 64-bit floating point; native processing sample rate up to 96 kHz |
Power
| Power requirement | 100-240 V AC, 50/60 Hz |
|---|---|
| Power consumption | 15 W |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

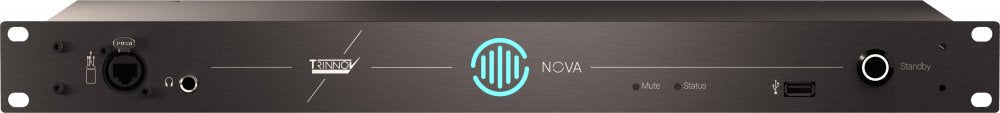

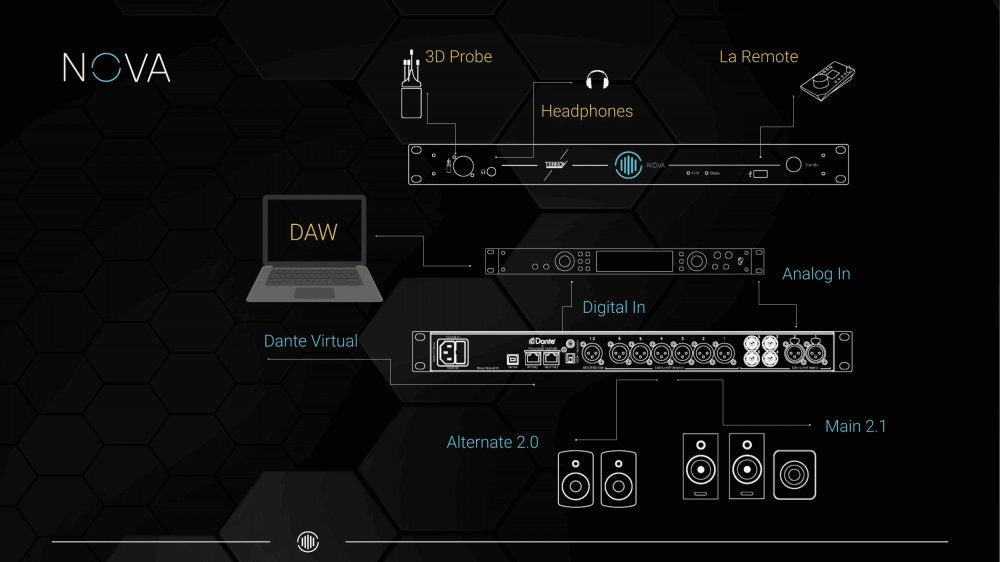

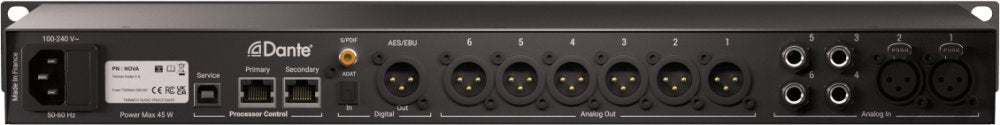

Trinnov Audio NOVA is a 1U professional studio monitor controller and room optimizer. Trinnov describes it as a monitoring backbone for speaker calibration, source switching and loudspeaker correction, with 2 Optimizer licenses included and software expansion available up to 6 optimized channels. Published connectivity includes front etherCON measurement microphone input, 1/4-inch stereo headphone output, USB-A for La Remote, 4 balanced TRS analog inputs, 2 balanced XLR analog inputs, 6 balanced XLR analog outputs, optical ADAT/S/PDIF input, coaxial S/PDIF input, AES3 XLR stereo output and two Ethernet ports with Dante 16 in/16 out. Specs include 24-bit/192 kHz ADC/DAC, 64-bit floating-point processing, 100-240 V AC power, 15 W consumption, 482 x 44 x 192 mm size and about 2.5-2.6 kg weight.
